HA-900 - 900W power amplifier

Product Description

Technical Specifications:

Performance

• Power Output (8 Ohms, Both Channels Driven): 2 x 350 W
• Power Output (8 Ohms, Bridged): 900 W
• Power Output (4 Ohms, Both Channels Driven): 2 x 450 W
• Frequency Response: 20 Hz – 20 kHz, +0 / –1 dB
• Total Harmonic Distortion: < 0.5% (20 Hz – 20 kHz)
• Signal to Noise Ratio: > 100 dB (20 Hz – 20 kHz)
• Voltage Gain: 31 dB
• Damping Factor: > 200 @ 10 Hz – 400 Hz

Electronics and Connectors

• Amplifier Channels: 2
• Input Impedance: 20 kohms
• Controls: Power On/Off, Gain Pots
• Cooling: Internal heat sinks with forced air (fan cooled)
• Amplifier Protections: Short circuit, no-load, on/off muting, RF interference protection
• LED Indicators: Power, Protection, Signal, Clip

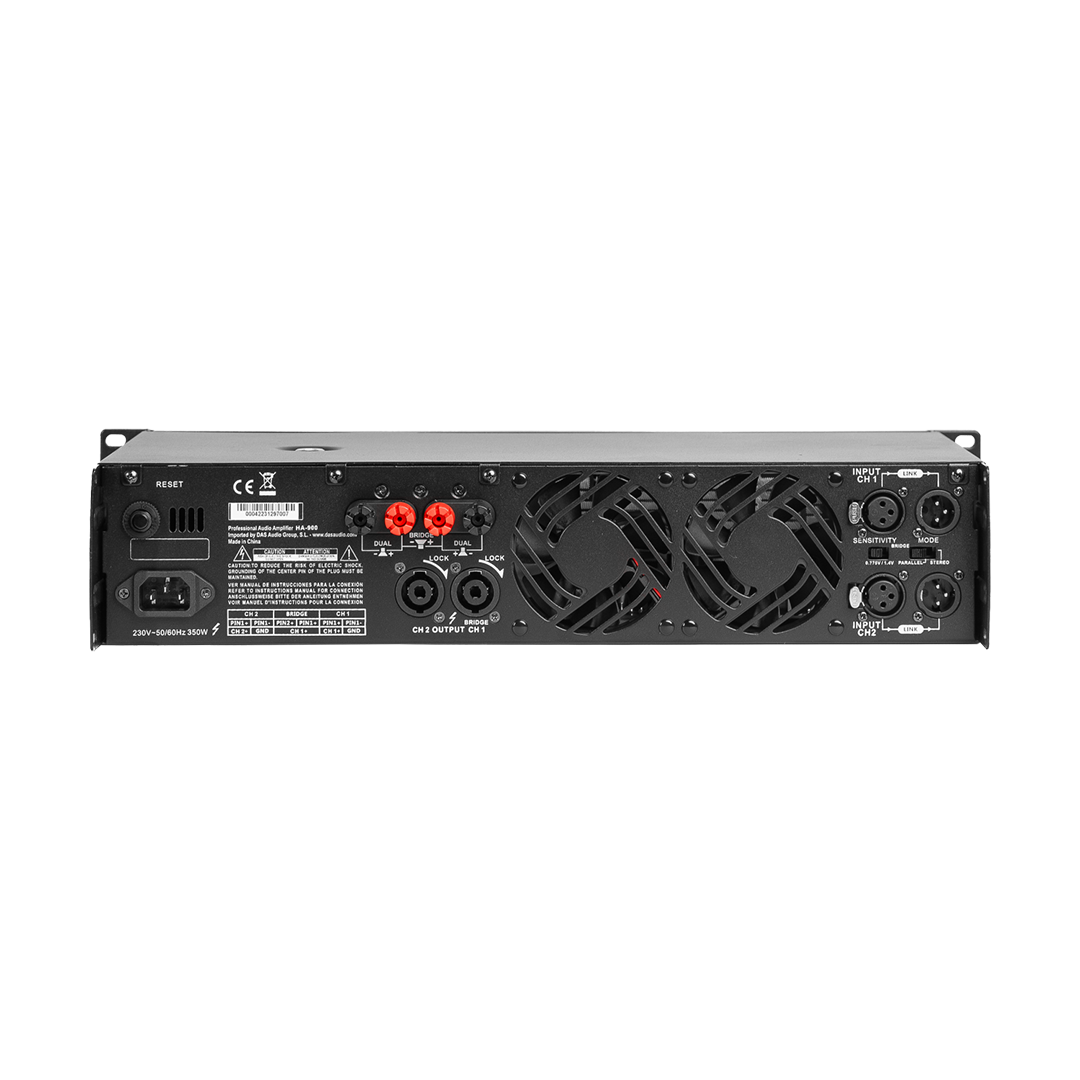

• Audio Signal Input Connector: 2 x Female XLR
• Audio Signal Loop Thru Connector: 2 x Male XLR
• Speaker Output Connector: 2 x speakON
• AC Input Connector: IEC
• Current Draw: 230 V / 115 V — 4.5 A / –

Dimensions and Weight

• Dimensions ( H x W x D ):88 x 482 x 239 mm | 3.5 x 19.0 x 9.4 in
• Net Weight:12.0 kg (26.4 lb)

Shipping

• Carton Dimensions ( H x W x D ):160 x 580 x 540 mm | 6.3 x 22.8 x 21.3
• Shipping Weight:13.0 kg (28.6 lb)
