HDCP11AB - HDCP2.2 Manager Including Audio Breakout

Product Description

Key Features:

• HDCP 2.2 source conversion to lower HDCP format whilst passing 4K content
• HDMI audio de-embedded to both analogue L/R audio and Coaxial digital outputs concurrently
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission*
• Advanced EDID management
• HDCP 2.2 compliant
• Small compact size

Technical Specifications:

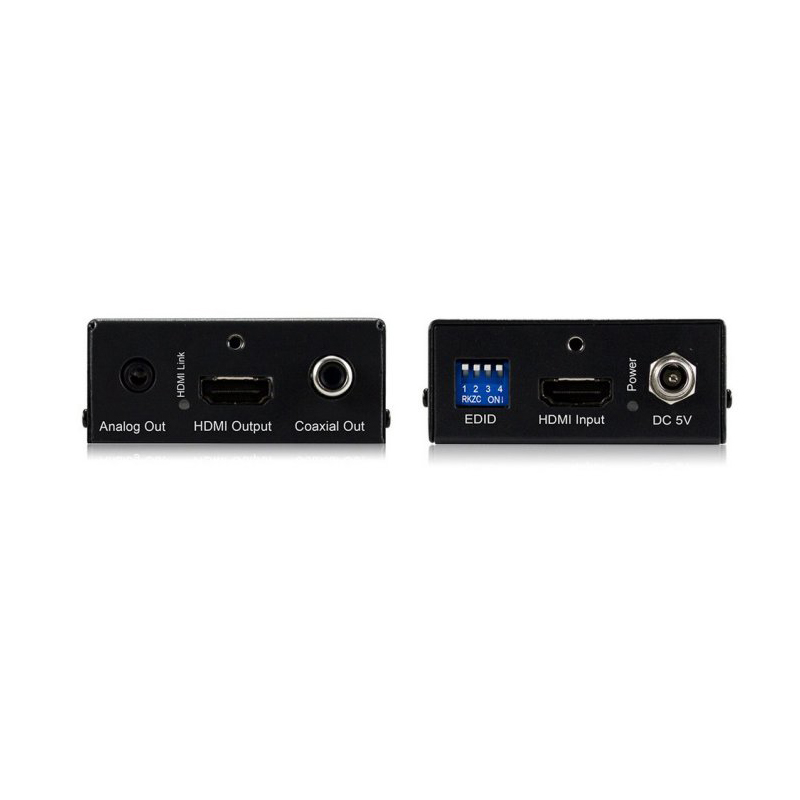

• Video Input Connectors: 1x HDMI Type A
• Video Output Connectors: 1x HDMI Type A
• Audio Output Connectors: 1x SPDIF Coaxial digital & 1x Analogue Left/Right audio (3.5mm stereo jack)
• Casing Dimensions (W x H x D): 92mm x 26mm x 63mm
• Dimensions including connections (W x H x D): 102mm x 26mm x 63mm
• Shipping Weight: 0.5kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Power Supply: 5V/1A DC

* Embedded HDMI 5.1ch PCM transmission is not supported via Coax audio connections and is therefore not supported by the HDCP11AB

Box Contents:

• HDCP11AB
• 5V/1A DC power supply
• Mounting kit
• User manual
