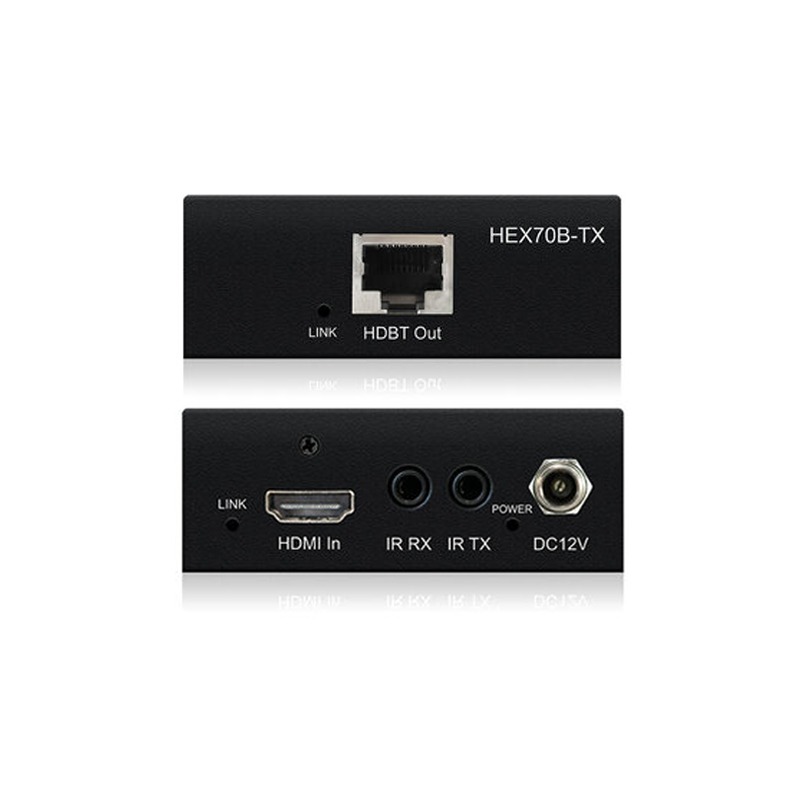

HEX70B-TX - 70m HDBaseT™ Transmitter

The HEX70B-TX 4K HDBaseT™ transmitter offers market leading features and outstanding value. The product transmits HDMI, Bi-directional IR and Bi-directional PoC up to lengths of 70m.

In Stock

Product Description

Key Features

  • Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
  • Extends HDMI up to a distance of 70m over single CAT cable
  • Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports 3D signal display
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Supports bi-directional PoC (Power over Cable) to power extender from either matrix, transmitter or receiver end
  • Supports bi-directional IR from all input and output locations
  • HDCP compliant

Specifications

  • Video Input: 1 x HDMI Type A, 19-pin, female
  • Video Output: 1 x HDBaseT™ RJ45
  • IR Input Ports: 2 x 3.5mm stereo jack
  • IR Output Ports: 2 x 3.5mm mono jack
  • Power Supply: 12V/2A DC, screw type connector
  • Power Consumption: 9.5W
  • Ind. Extender Dimensions (W x D x H): 105mm x 73mm x 27mm, without connections
  • Ind. Extender Dimensions (W x D x H): 110mm x 75mm x 27mm, with connections
  • Ind. Unit Weight: 0.25kg
  • Box Dimensions (W x D x H): 295mm x 155mm x 80mm
  • Shipping Weight: 0.95kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Mounting Kit Included

Box Contents

  • 1 x HEX70B-TX
  • 1 x Mounting Brackets

Additional information

Weight 0.95 kg
Dimensions 15.5 × 29.5 × 8.0 cm

Download

Data Sheet
