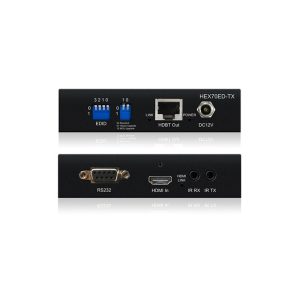

HEX70ED-TX - 70m HDBaseT™ Transmitter

Product Description

Key Features

• Extends HDMI up to distances of 70m over single CAT cable
• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports 3D signal display
• Supports CEC bypass (Consumer Electronics Control)
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
• Supports bi-directional RS-232 pass through
• Supports bi-directional IR from all input and output locations
• Supplied with Blustream IR receiver and emitter
• Advanced EDID management
• HDCP 1.4 compliant

Specifications

• Video Input: 1 x HDMI Type A, 19-pin, female
• IR Input Ports: 2 x 3.5mm stereo jack
