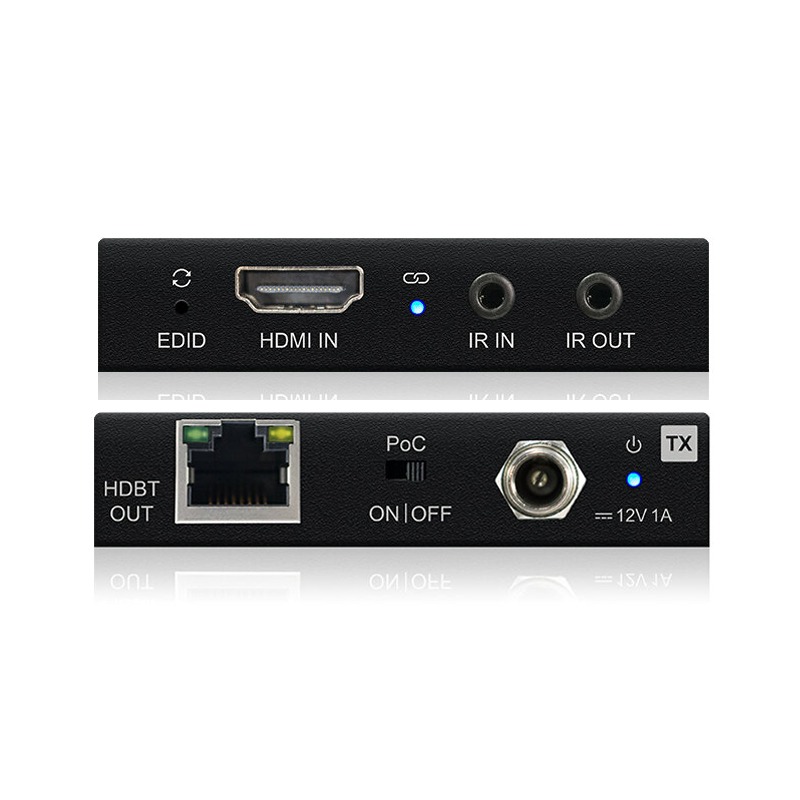

HEX70SL-TX - 70m Slimline HDBaseT™ Transmitter

The HEX70SL-TX 4K HDBaseT™ transmitter offers market leading features in a slimline chassis. The product delivers HDMI, Bi-directional IR and Bi-directional PoC up to lengths of 70m.

In Stock

Product Description

Key Features

  • Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
  • Enhanced slimline chassis
  • Extends HDMI 1080p up to a distance of 70m over a single CAT cable
  • Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Bi-directional IR pass-through
  • Supports bi-directional PoC (Power over Cable) to power, or be powered from, a compatible receiver point (power supply not included)
  • Smart EDID function automatically limits EDID to within HDBaseT™ specification to improve compatibility
  • HDCP 2.2 compliant

Specifications

  • Video Input Connectors: 1 x HDMI Type A, 19-pin, female
  • Video Output Connectors: 1 x HDBaseT™ RJ45 connector
  • IR Input Ports: 1 x 3.5mm stereo jack
  • IR Output Ports: 1 x 3.5mm mono jack
  • EDID: Pin hole button
  • Power Supply: 12V/1A DC
  • Dimensions: 106mm x 73mm x 16mm (LxWxH)
  • Shipping Weight: 0.8kg
  • Operating Temperature: 32°F to 104°F (-5°C to +55°C)
  • Storage Temperature : -4°F to 140°F (-25°C to +70°C)

Box Contents

  • 1 x HEX70SL-TX
  • 1 x Mounting Kit
  • 1 x Quick Reference Guide

Additional information

Weight 1.34 kg
Dimensions 0.0 × 0.0 × 0.0 cm

Download

Data Sheet
