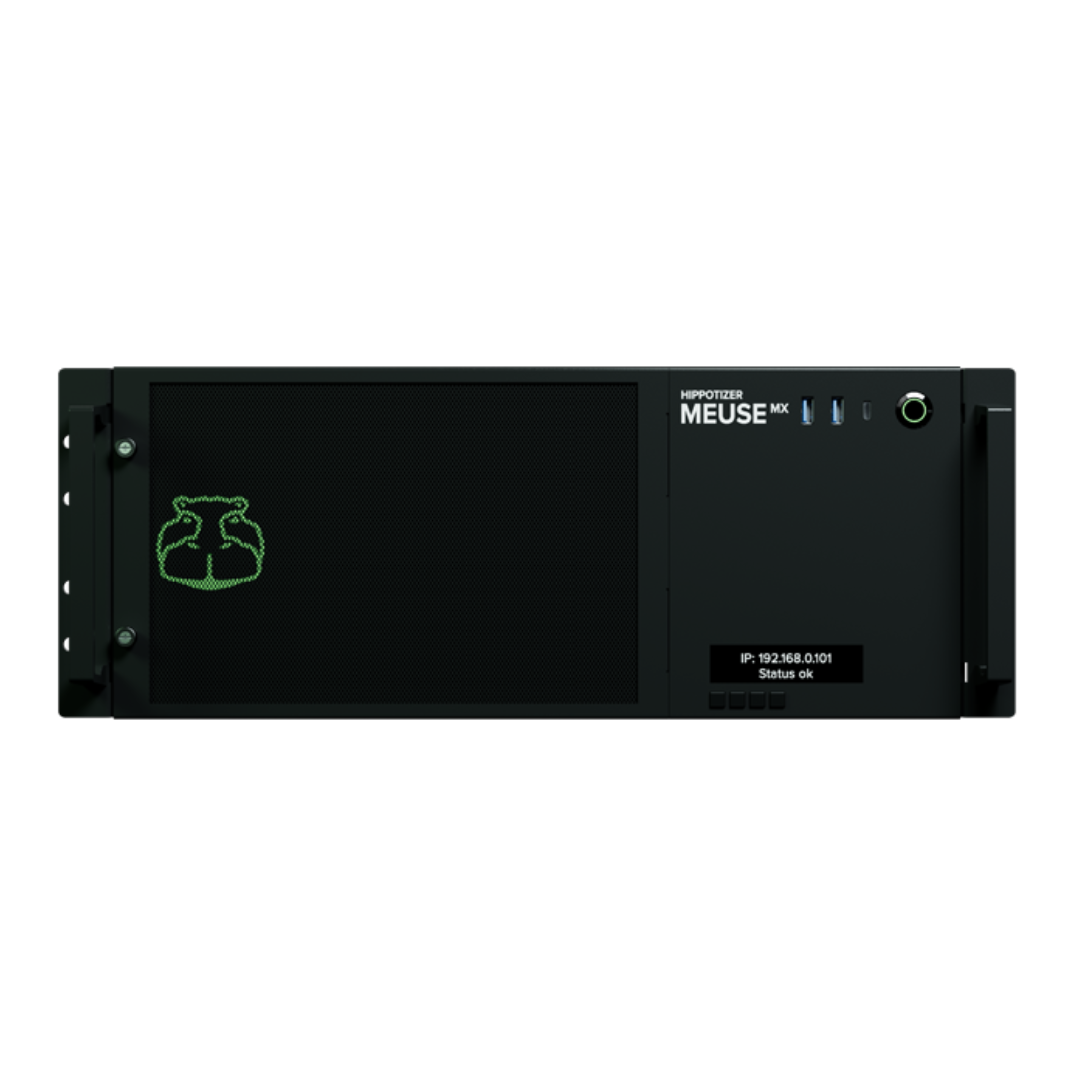

Hippotizer MX Meuse

Product Description

Main Outputs

• Output Type: Modular
• Production Outputs: 4
• Genlock: Yes
• Software EDID Emulation: Yes

Control Output

• Output 1 Type: DP 1.4
• Genlock: Yes
• Software EDID Emulation: Yes
• Output 2 Type: HDMI 2.0
• Genlock: Yes
• Software EDID Emulation: Yes

Connectivity

• 1Gb Network: 0
• 10Gb Network: 4
• Above 10Gb Network: *Optional Upgrade
• Audio Out: Balanced Stereo XLR
• Audio In: Balanced Stereo XLR
• LTC over Audio Input: Yes
• Rear USB Ports (Type-A) : 2 x USB3.2
• Rear USB Ports (Type-C): 2 x USB3.2
• Front USB Ports (Type-A): 2 x USB3.2
• Front USB Ports (Type-C): 1 x USB3.2
• Power Input: Neutrik True1
• Power Loop: True1 – 1000W Max

Physical Specifications

• Size (Rack Units): 4
• Installed Depth: 635mm (675 w/ Ears)
• Installed Width: 425mm (485 w/ Ears)
• Installed Weight: 26 Kgs
• Mounting: Front Rack Rails
• Voltage: 100-250V 50/60Hz
• Power Consumption (Max): 1650/2000W
• Heat Dissipation (Max): 5000 btu/hr
• Min Operating Temp: 0C / 32F
• Max Operating Temp: 35C / 95F
• Min Storage Temp: 0C / 32F
• Max Storage Temp: 35C / 95F
• Max Humidity (Non-Condensing): 95%

Technical Specifications

• CPU Cores / Threads: 16(32)
• CPU Base Clock: 4.5 GHz
• Memory: 64GB
• Memory Type: DDR5-5200
• OS Drive: 500GB SSD
• Media Drive Size: 8TB
• Media Drive Speed: 14,000 MB/s
• Concurrent 4K Layers: 37
• Layers per Mix: 16
• Mixes: 16
• Notch Marks: 54,191
