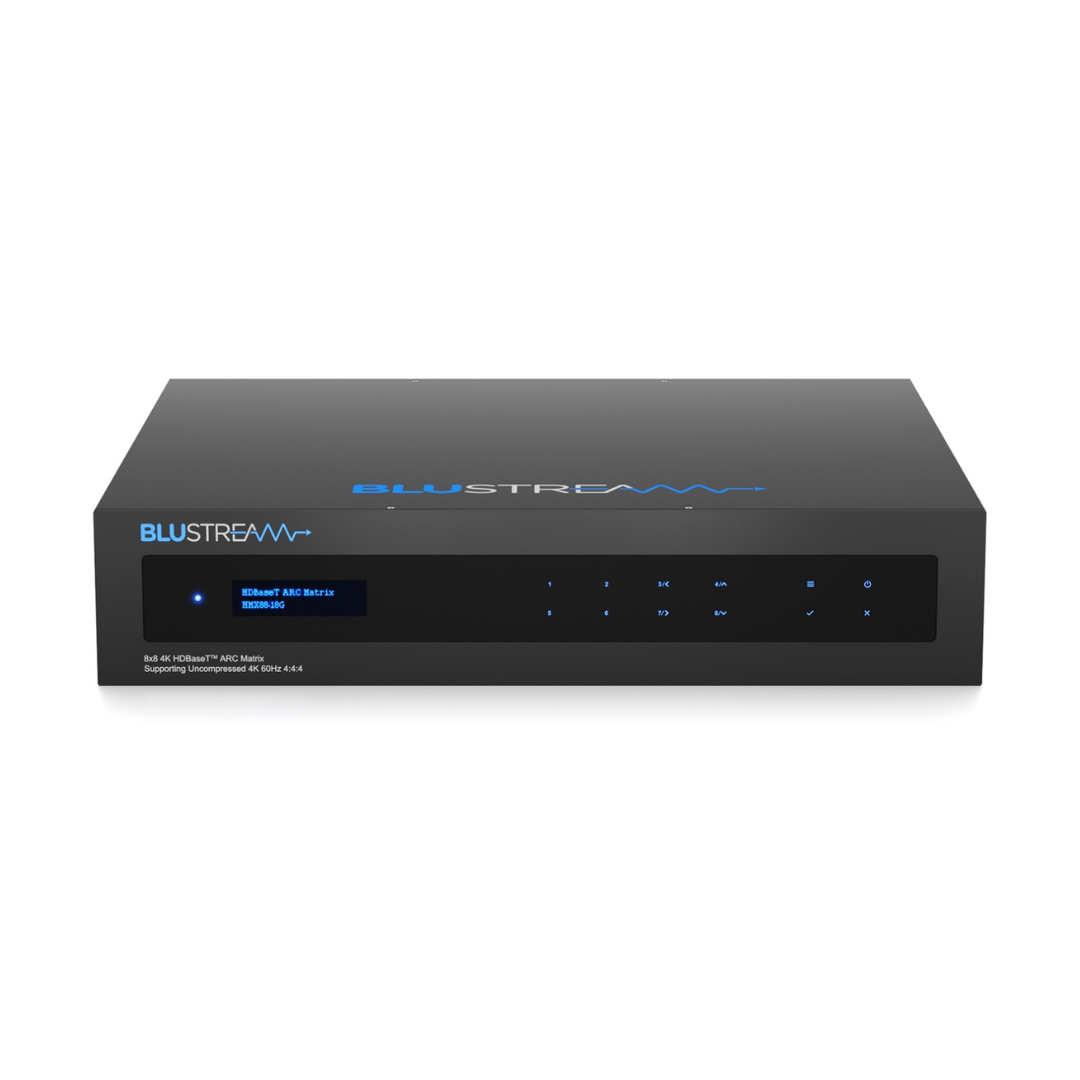

HMX88-18G - 8x8 HDBaseT3™ ARC Matrix Supporting Uncompressed 4K 60Hz 4:4:4

Product Description

Key Features:

• Advanced uncompressed, unconverted, HDMI over HDBaseT3™ technology offering distribution of bit-for-bit 4K HDMI video and audio over a single CAT6A cable
• Features 8 x HDMI inputs which can be independently routed to 8 x HDBaseT™ outputs
• Outputs 1 & 2 feature simultaneous HDMI and HDBaseT™ outputs
• Supports distribution of uncompressed HDMI2.0 18Gbps specification including 4K 60Hz 4:4:4 UHD video up to 100m*
• Supports distribution of the latest HDR resolutions including HDR10/10+
• 26×8 Audio Matrix independently controllable from video. Audio source inputs include:
– 8 x audio breakout from HDMI source inputs
– 8 x audio breakout from zone outputs
– 8 x audio return from zone outputs*
– 1 x Optical and 1x Analogue audio input
• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
• Integrated Ethernet switch (LAN Serving) when used with Blustream RX18G receiver (1Gb maximum)
• Web interface module for control and configuration of the Matrix
• Supports bi-directional IR and RS-232 on all HDBaseT™ outputs
• Control via front panel, IR, iOS / Android App, RS-232 and TCP/IP
• Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers
• Advanced EDID management and HDCP 2.3 compliant

* Transmission distance is subject to video format, cable type and installation environment.

* The HDBaseT3™ specification is based on using CAT6A F/UTP infrastructure or better. The use of CAT5e is not supported and CAT6 is not recommended due to potential bandwidth and performance issues.

** ARC feature supports HDMI ARC or Optical ARC. Compatible with RX18G receivers only

Specifications:

• Video Input Connectors: 8 x HDMI Type A, 19-pin, female
• Video Output Connectors: 2 x HDMI Type A, 19-pin, female, 8 x HDBaseT™ RJ45 connectors
• Audio Input Connectors: 1 x Analogue audio L/R (3.5mm stereo Jack), 1 x Optical (S/PDIF)
• Audio Output Connectors: 8 x Analogue audio L/R (3.5mm stereo Jack), 8 x Optical (S/PDIF)
• RS-232 Serial Port: 9 x 3-pin phoenix connector
• TCP/IP Control Port: 1 x RJ45, female
• Ethernet Passthrough Port: 1 x RJ45, female
• IR Input Ports: 10 x 3.5mm stereo jack
• IR Output Ports: 9 x 3.5mm mono jack
• Product Upgrade Port: 1 x Micro USB, female
• Rack Mountable: 2U rack height, rack ears included
• Casing Dimensions (W x H x D): 436mm x 88mm x 400mm (without feet)
• Shipping Weight: 10.5kg
• Operating Temperature: 23°F to 131°F (-5°C to +55°C)
• Storage Temperature: -13°F to 158°F (-25°C to +70°C)
• Power Supply: Internal 100-240V AC
• HDBaseT Power Output: 24V DC 0.75A per port
