HMXL44CS-KIT - 4x4 HDBaseT™ CSC Matrix Kit - 70m

Product Description

Key Features

• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
• Features 4 x HDMI inputs which can be independently routed to 4 x HDBaseT™ outputs
• Output 1 features simultaneous HDMI and HDBaseT™ output
• Video down-conversion on HDBaseT™ output 1 allows for a display only capable of supporting lower video resolutions (4K @ 60Hz 4:2:0 or 1080p) to receive the native 4K @ 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
• Supports 4K @ 60Hz 4:4:4 UHD video up to 40m
• Extends HDMI 1080p video up to 70m
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• HDMI re-clocking on the HEX70CS-RX HDBaseT™ Receivers to help solve HDMI HDCP, compatibility, and handshaking issues
• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
• Analogue (L/R) audio input can be embedded onto any combination of HDMI inputs concurrently
• Web interface module for control and configuration of the matrix
• Supports bi-directional IR and RS-232 on all HDBaseT™ outputs
• Supplied with Blustream IR receivers and emitters

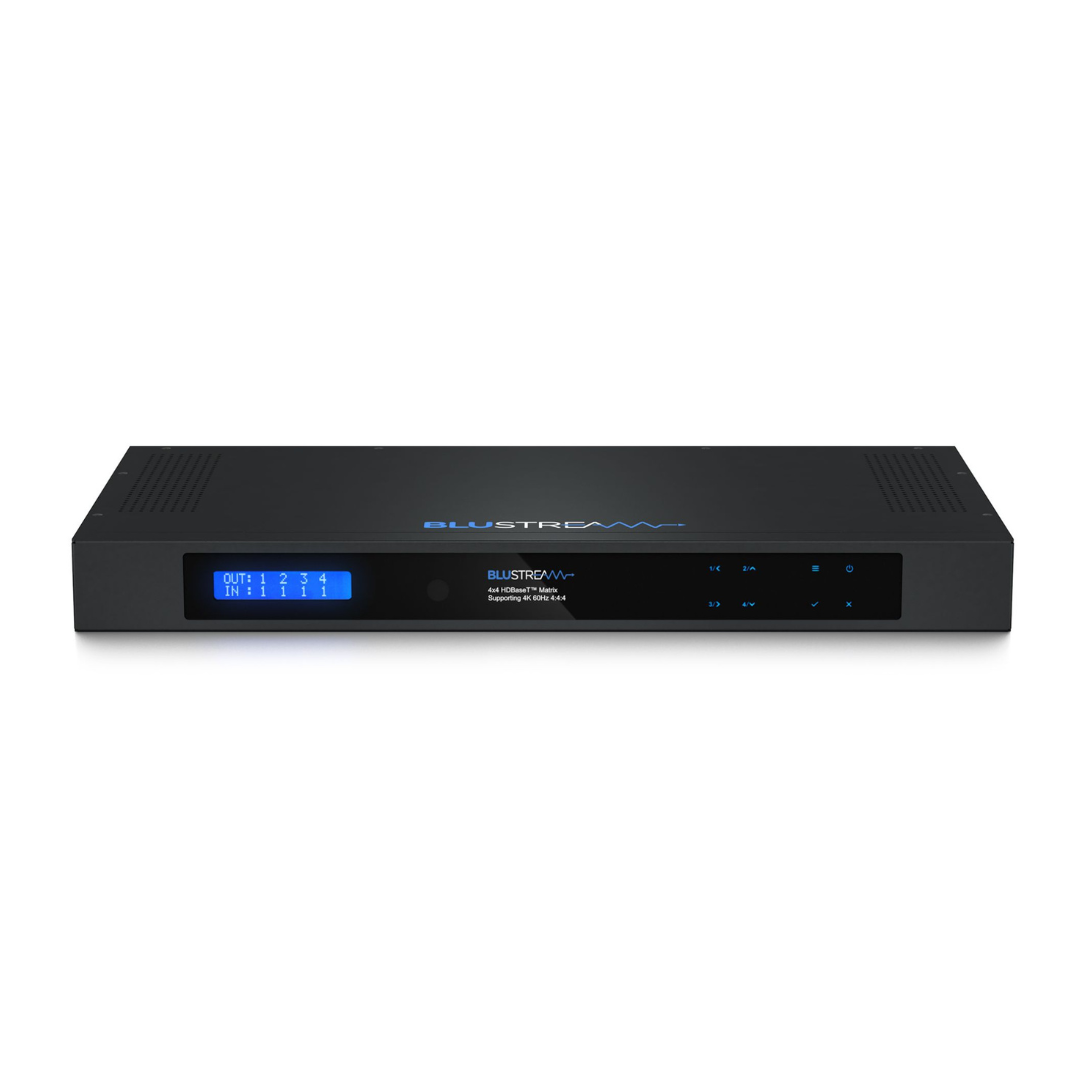

• Control via front panel, IR, RS-232 and TCP/IP
• Supports PoC (Power over Cable) to power supplied HDBaseT™ receivers
• 3rd Party drivers available for all major control brands
• 1U Design for 19″ rack mount integration – mounting kit included
• Advanced EDID management
• HDCP 2.2 compliant

Specifications

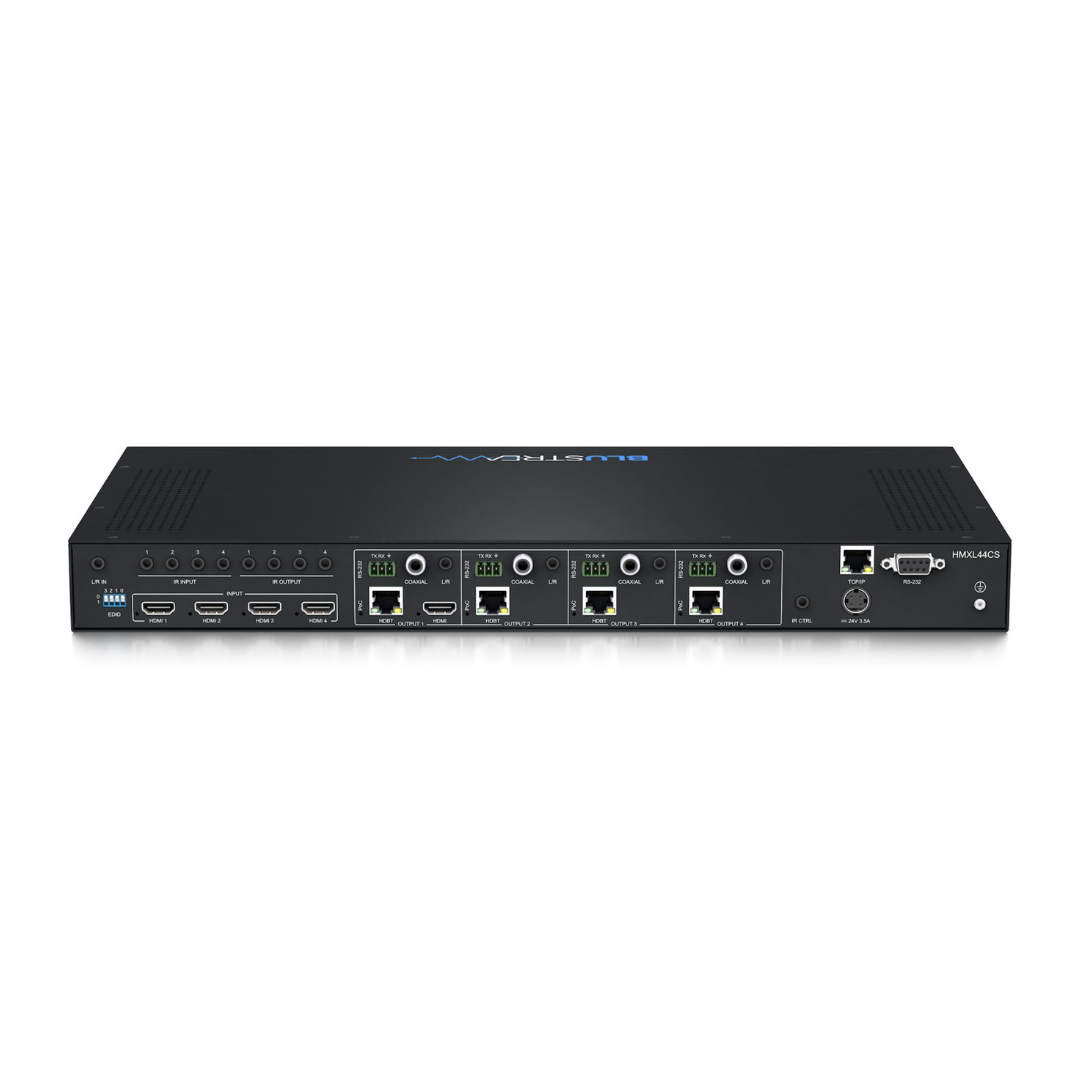

• Video Input Connectors: 4 x HDMI Type A, 19-pin, female
• Video Output Connectors: 1 x HDMI Type A, 19-pin, female, 4 x HDBaseT™ RJ45 connector
• Audio Output Connectors: 4 x 3.5mm stereo jack, 4 x RCA Coaxial Digital
• Audio Input Connectors: 1 x 3.5mm stereo jack
• RS-232 Serial Port: 1 x DB-9, female, 4 x 3-pin Phoenix sockets for each zone (DB9 serial to Phoenix connector cables supplied)
• TCP/IP Control: 1 x RJ45, female
• IR Input Ports: 5 x 3.5mm stereo jack
• IR Output Ports: 4 x 3.5mm mono jack
• Rack Mountable: 1U rack height, rack ears included
• Unit Dimensions (W x D x H): 440mm x 235mm x 44mm (without feet & connections)
• Unit Dimensions (W x D x H): 440mm x 245mm x 52mm (with feet & connections)
• Unit Weight: 2.98kg
• Box / Carton Dimensions (W x D x H): 505mm x 305mm x 155mm
• Shipping Weight: 7.5kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Power Supply: 1 x 24V/3.5A DC
