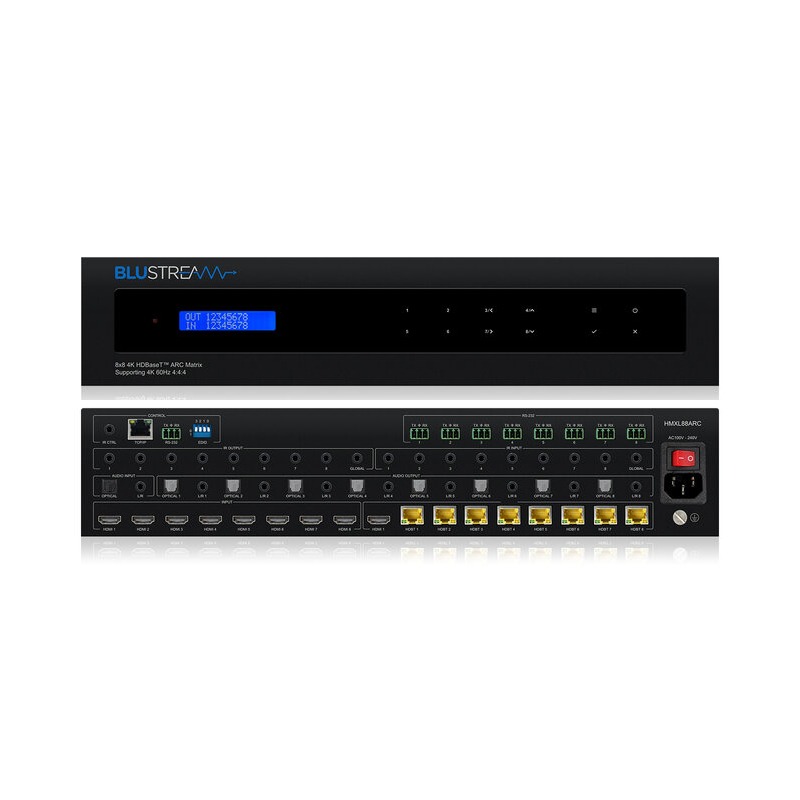

HMXL88ARC - 8x8 HDBaseT™ CSC ARC Matrix

Product Description

Key Features

• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR*
• Features 8 x HDMI inputs which can be independently routed to 8 x HDBaseT™ outputs
• Output 1 features simultaneous HDMI and HDBaseT™ output
• Video Smart Scaling on HDBaseT™ outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
• Supports 4K 60Hz 4:4:4 UHD video up to 40m and 1080p video up to 70m
• 26×8 Audio Matrix independently controllable from video. Audio source inputs include: 8 x audio breakout from HDMI source inputs, 8 x audio breakout from zone outputs, 8 x ARC from zone outputs* & 1 x Optical and 1 x Analogue audio input
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
• Web interface module for control and configuration of matrix
• Supports bi-directional IR and RS-232 on all HDBaseT™ outputs
• Control via front panel, IR, iOS / Android App, RS-232 and TCP/IP
• Supports 24V PoC (Power over Cable) to power compatible Blustream RX70CS receivers
• Supplied with Blustream IR receivers and emitters
• Advanced EDID management and HDCP 2.2 compliant

  *ARC feature supports HDMI ARC or Optical ARC

          *PoC, CSC, and ARC feature compatible with RX70CS only

Specifications

• Video Input Connectors: 8 x HDMI Type A, 19-pin, female
• Video Output Connectors: 1 x HDMI Type A, 19-pin, female, 8 x HDBaseT™ RJ45 connector, used with RX70CS receiver
• Audio Input Connectors: 1 x Analogue audio L/R (3.5mm stereo jack), 1 x Optical (S/PDIF)
• Audio Output Connectors: 8 x Analogue audio L/R (3.5mm stereo jack), 8 x Optical (S/PDIF)
• RS-232 Serial Ports: 9 x 3-pin Phoenix connector
• TCP/IP Control: 1 x RJ45, female
• IR Input Ports: 9 x 3.5mm stereo jack
• IR Output Ports: 9 x 3.5mm mono jack
• Rack Mountable: 2U rack height, rack ears included
• Casing Dimensions (WxDxH): 436mm x 400mm x 88mm (without feet)
• Shipping Weight: 10.5kg
• Operating Temperature: 32°F to 104°F (-5°C to +55°C)
• Storage Temperature: -4°F to 140°F (-25°C to +70°C)
• Power Supply: Internal 100-240V AC

Box Contents

• 1 x HMXL88ARC
• 1 x Rack Mounting Kit
• 1 x Remote Control
• 8 x IR Emitters
• 9 x IR Receivers
• 1 x Serial Cable – DB9 to 3-pin Phoenix Connector
• 1 x IR Control Cable – 3.5mm-3.5mm Cable
• IEC Power Cable(s)
• 1 x Quick Reference Guide
