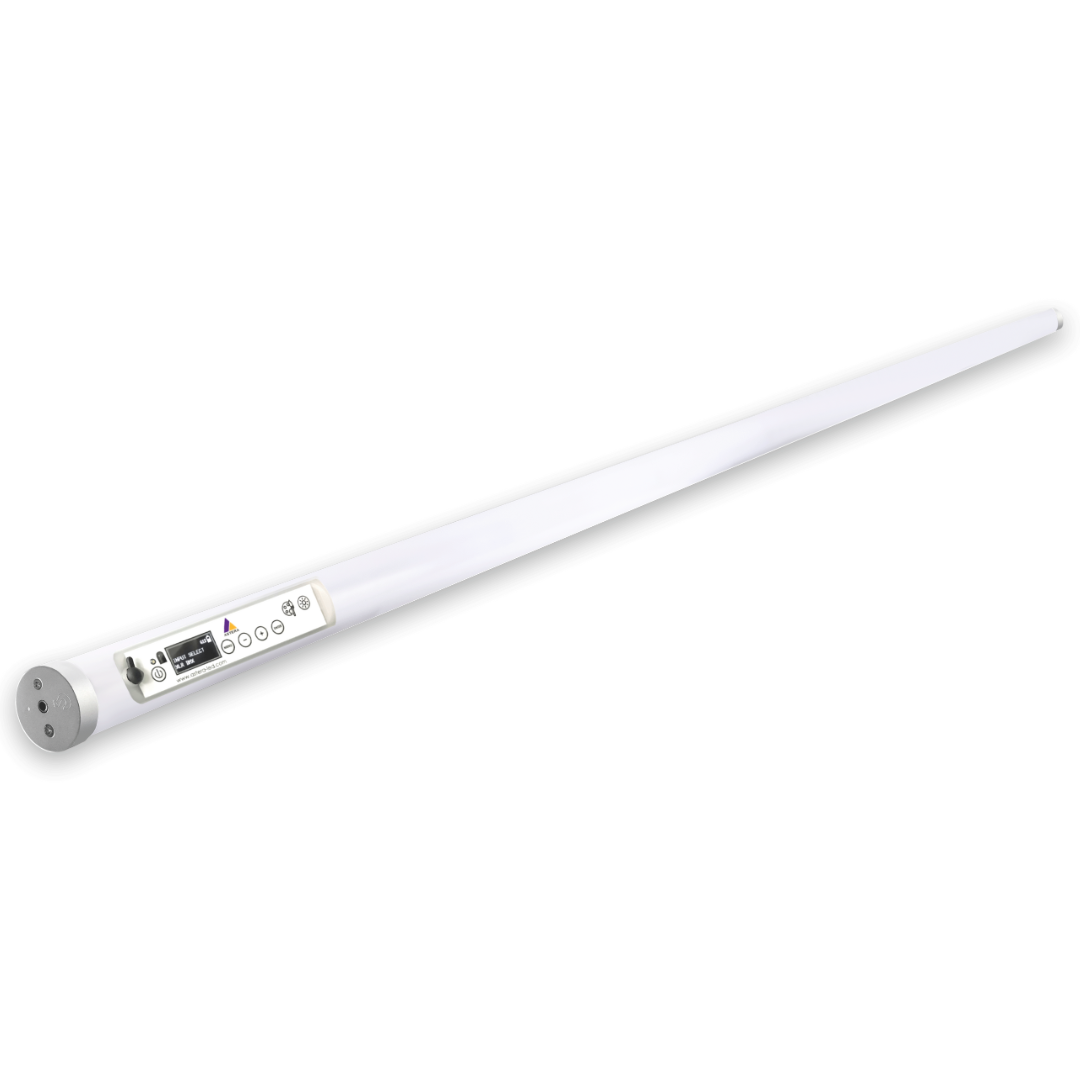

Hyperion Tube - Wireless LED tube

Product Description

Included in the Box

1x Hyperion Tube (FP3)

2x TubeHolder (AX1-H)

2x Eyebolt (FP1-EBLT)

1x DC Socket Cover (FP1/2-SP)

Technical Specifications

LED Engine: Titan LED Engine

Colors: RGBMintAmber

Total LED Power: 144 W

LED Power Draw: 92 W

Luminous Flux 4000K: 5800 Lumens

Light Output 4000 K @ 1m: 1570 Lux

CRI (Ra)/ TLCI 3200- 6500 K: ≥96

Beam Angle: 135° x 115°

Field Angle: 175° x 160°

Strobe: 0 – 25 Hertz

Pixels: 32

Battery Runtime: up to 20 hours

Battery Runtime (max. Brightness): 1 h 45 m

Battery Lifetime: 70 % after 300 cycles

Charging Time (nominal): 3 hours

DC Input: 24 VDC – 4 A

DC Connector: 5.5 mm x 2.1 mm

Wired DMX: Yes (via FP3-DTL / PWB-2-86)

CRMX Receiver: Built-in

BluetoothBridge BTB: Built-in

Wireless Protocols: CRMX, UHF, Bluetooth, WiFi

Wireless Range: CRMX/UHF up to 300 m. Bluetooth up to 3 m.

Infrared Control: Yes

IP Rating: IP65 (only with FP1-SP)

Ambient Operating Temperature: 0 – 40 °C / 32 – 104 °F

Weight: 2.9 kg / 6.39 lbs

Dimensions (L x Ø): 2 031 mm x Ø 43 mm / 79.9″ x Ø 1.7″

Mounting Options: 2x M5 thread, 2x Holder (with 2x M5 and 1x 1/4″-20UNC thread), 1x TubeStand
