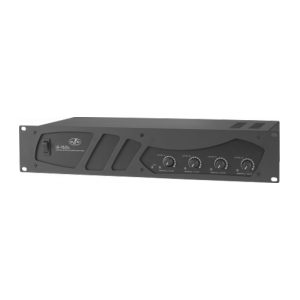

Name: IA-1602 - Stereo Amplifier 800 W per Channel @ 4 ohms
SKU: IA-1602

Product Description

Features

Stereo amplifier
800 W per channel @ 4 ohms
Class D topology
Bridged/70 V/100 V operation

Applications

Professional installation
Commercial Audio
Live events (passive systems)

Output Power Ratings
Power 8 Ohms, Both Channels Driven	2 x 400 W
Power 8 Ohms Bridged	1 x 1600 W
Power 4 Ohms, Both Channels Driven	2 x 800 W
Power 100 V	1 x 1600 W
Power 70 V	1 x 1600 W
Electronics and Connectors
Amplifier Channels	2
Output Circuitry	Class D
Frequency Response	20 Hz – 30 kHz, +0 – 0.5 dB
Sensitivity	1.38 V (5 dBu)
Voltage gain	32 dB
Controls	Power On/Off, Gain Pots
Cooling	Side-Right-to-Left
Amplifier Protections	Short Circuit, DC Output, Temperature, Over/Under Voltage
LED Indicators	Power, Protection, Signal, Clip
Audio Signal Loop Thru Connector	Terminal Block
AC Input Connector	IEC
Operating Range	90-250 VAC
Current Draw 230 V	3 A
Current Draw 115 V	6 A
Dimensions-Weight
Dimensions ( H x W x D )	88 x 483 x 208 mm 3,5 x 19,0 x 8,2 in
Net Weight	3,4 kg ( 7,5 lb )
Shipping
Carton Dimensions ( H x W x D )	170 x 525 x 315 mm 6,7 x 20,7 x 12,4 in
Shipping Weight	4,3 kg ( 9,4 lb )
