ID48X - Installation Matrix Signal Processor

Analogue Inputs – 4

• Electronically balanced, pin 2 hot
• CMRR : >60dB @ 1kHz
• Maximum Level : >20dBu
• Input Impedance : 10kΩ balanced

AES Inputs – 2 x 2 channel

• Transformer balanced, pin 2 hot
• AES Input Sample Rates : 8kHz to 192kHz
• AES Input s/n Ratio : 139dB
• Input Impedance : 110Ω

Analogue Outputs – 8

• Electronically balanced, pin 2 hot
• Maximum Level : >20dBu
• Source Impedance : <60Ω

AES Outputs – 4 x 2 channel

• Transformer balanced, pin 2 hot
• Sample Rate : same as operating sample rate
• Source Impedance : 110Ω

Performance

• Frequency Response (12Hz to 32kHz) : +/-0.2dB
• Dynamic Range : >119dB ‘A’ weighted (in to out analogue)
• THD + N (+19dB @ 1kHz) : 0.00029%
• Latency : 0.427ms (in to out, analogue)

Processing [96kHz]

• Input Gain (per channel) : -30 to +15dB in 0.1dB steps, mute, phase
• Input Delay (per channel) : 0 to 1.3s in 10.4uS steps
• Input Compressor (per channel) : Threshold (-30 to +22 dBu), Attack, Release,
• Ratio, Soft-Knee
• Input Parametric EQ (per channel) : 8 bands – parametric, low shelf, high shelf, notch, band-pass
• Input Graphic EQ (per channel) : 28 bands
• Input Dynamic EQ (per channel) : 3 bands – parametric/low shelf/high shelf, boost/cut above/below, threshold, ratio, attack, release
• Input High-Pass Filter (per channel) : Up to 24dB/octave (Bensen / Butterworth / Bessel / Linkwitz-Riley)
• Routing Inputs to Outputs : Choice of modes (Matrix Mixer, Free Routing, 1×8 crossover, 2×4 crossover, 4×2 crossover, 2×3 crossover + 2 Aux)
• Output Parametric EQ (per channel) : 16 bands – parametric, low shelf, high shelf, notch, band-pass
• Output High-Pass and Low-Pass Filter (per channel) : Up to 48dB/octave (Bensen / Butterworth / Bessel / Linkwitz-Riley)
• Output Gain (per channel) : -30 to +15dB in 0.1dB steps, mute, phase
• Output Delay (per channel) : 0 to 1.3s in 10.4uS steps
• Output Limiter (per channel) : Threshold (-50 to +22dBu), attack, release, auto attack/release option
• Presets : Up to 30

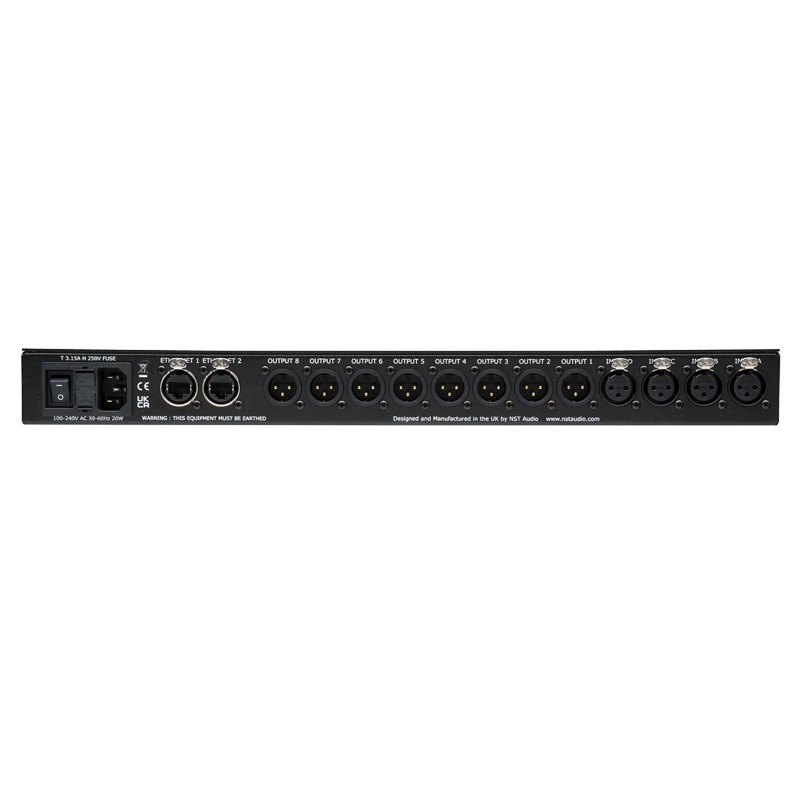

Comms

• 2 x 1Gbps Ethernet on rear panel (Ethercon connector)
• USB Type C socket

Power Requirements

• 3-pin IEC input, fused
• 90-250VAC, 50-60Hz < 20W

Dimensions

• Height : 44mm (1.75inch) 1U
• Depth : 213mm (8.4 inches)
• Width : 482mm (19 inches)

Weight

• Net : 2.5kg
• Shipping : 3.5kg

Due to continuing product improvement the above specifications are subject to change.
