IP50HD-TX - Contractor Series HD Video Transmitter over 100Mbps Network

Product Description

Key Features

• Advanced HD video, control and KVM over network infrastructure
• Extends HDMI up to a distance of 100m over a single CAT cable
• Supports unicast transmission over unmanaged networks
• Supports multicast transmission for large managed networks
• Supports up to 1080p @ 60Hz
• Features 1 x HDMI loop-out for integrating local displays or cascading to multiple devices
• Supports PCM 2.0 channel audio only
• Advanced signal management for independent routing of IR, RS-232, USB/KVM, and video/audio
• PoE (Power over Ethernet) to power product from a PoE switch
• HDCP1.4 compliant with advanced EDID management
• Analogue L/R audio embedding and audio breakout (2ch PCM only)
• Local 12V 1A power supply should Ethernet switch not support PoE (supplied separately)
• Features 2 operational modes: Matrix distribution (requires 100Mbps network switch) & One-to-one HDMI extender (no network switch required)

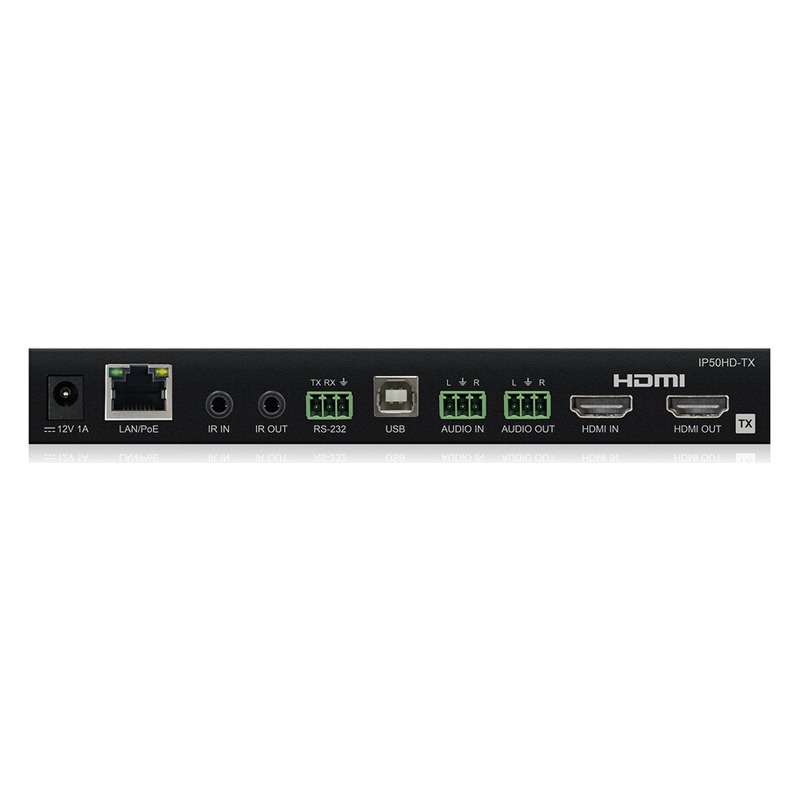

Specifications

• Video input: 1 x HDMI Type A, 19-pin, female, locking
• Video output: 1 x LAN RJ45 connector, 1x HDMI Type A, 19-pin, female, locking
• Audio input: 1 x 3-pin Phoenix connector
• Audio output: 1 x 3-pin Phoenix connector
• Ethernet port: 1 x LAN RJ45 connector
• RS-232 serial port: 1 x 3-pin Phoenix connector
• USB/KVM Host Port: 1 x USB-Type B
• IR input: 1 x 3.5mm stereo jack
• IR output: 1 x 3.5mm mono jack
• Mounting kit included
• Dimensions (W x D x H): 190mm x 95mm x 25mm
• Dimensions Including Connections (W x D x H): 190mm x 100mm x 25mm, without feet
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)

Box Contents

• 1 x IP50HD-TX
• 1 x IR Receiver
• 1 x IR Emitter
• 1 x Mounting Kit
• 4 x Rubber Feet
