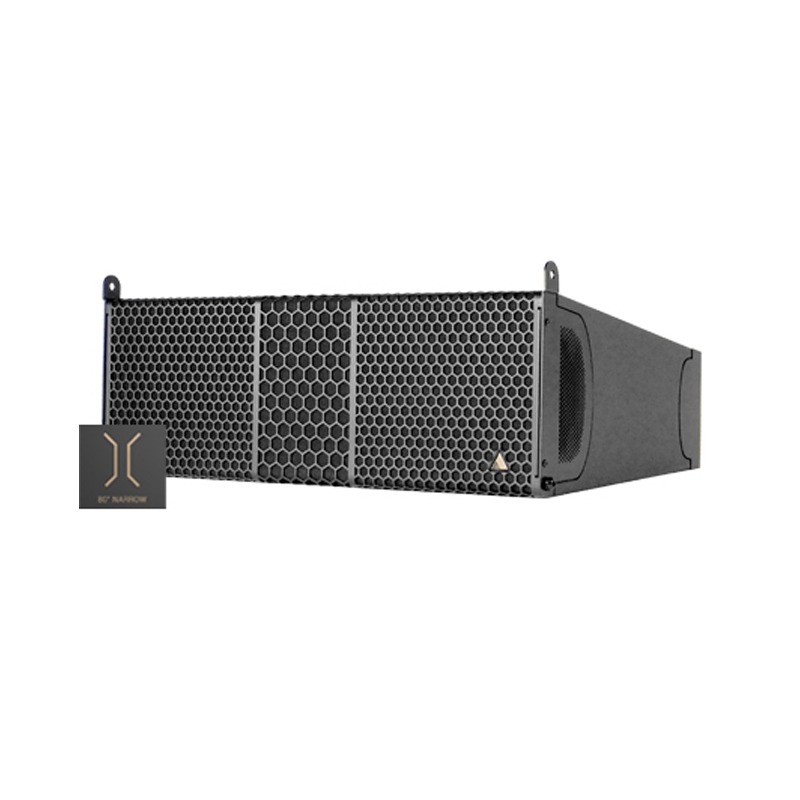

IS10n - 2-Way Full Range Line Array Cabinet

The IS10n is a 2-way, full range line array cabinet containing 2x ND10-LM Low-Mid drivers (2x 16 Ω) and an NH4TA2 1.5” exit compression driver (8 Ω). The critically optimized waveguide produces a slightly curved wavefront with a nominal dispersion pattern of 80° x 10° (H x V).  The waveguide’s efficiency allows for increased vertical dispersion without sacrificing high frequency presence in the far field.  Patent-pending Controlled Summation Technology further eliminates low-mid lobing normally associated with 2-way line source systems.

Clear
SKU: N/A Categories: , Brand: Series:

Product Description

The cabinet construction uses marine grade birch plywood as well as aircraft grade aluminum, and is equipped with two Speakon™ NL4 connectors (IS10n), or barrier strips (IS10nb). A plate and screw rigging system is recessed in the interior of the rear rigging fins for easy assembly.

The IS10n is suited to a wide variety of applications. Its full range capability (60 Hz) at reasonable levels qualifies for applications where sub is not required. Increased vertical coverage (10°) enables the IS10n to cover theaters, arenas and stadiums with reasonable speaker quantity. Other target applications include dance clubs, large meeting rooms and contemporary churches.

Specifications:

  • Frequency Range (+/-3 dB): 60 Hz – 18 kHz
  • Nominal Directivity (-6 dB): H x V 80° x 10°
  • Maximum Peak SPL**: 141.3 dB
  • Components LF: 2 X ND10-LM
  • Components HF: Adamson NH4TA2 4” Diaphragm / 1.5” Exit Compression Driver
  • Nominal Impedance LF: 8 Ω
  • Nominal Impedance HF: 8 Ω
  • Power Handling (AES / Peak) LF: 700 / 2800 W
  • Power Handling (AES / Peak) HF: 160 / 640 W
  • Rigging: Integrated Rigging System
  • Connection: 2x Speakon™ NL4 or Barrier Strips / IP67 Cable Gland with Weatherized
  • Height Front (mm / in): 300 / 11.8
  • Height Back (mm / in): 175 / 6.9
  • Width (mm / in): 737 / 29
  • Depth (mm / in): 518 / 20.4
  • Weight (kg / lbs): 25 / 55.2
  • Supported Processing: Lake

    **12 dB crest factor pink noise at 1m, free field, using specified processing and amplification
