K-dante – Uncompressed, Multi-channel Networking Technology

Dante is an uncompressed, multi-channel networking technology that transmits digital audio and data across standard IP networks.
One cable does it all. A single CAT-5e or CAT-6 can carry both the audio signal (two-channel AES/EBU) and the data to manage all the devices in the network with the K-Framework software.

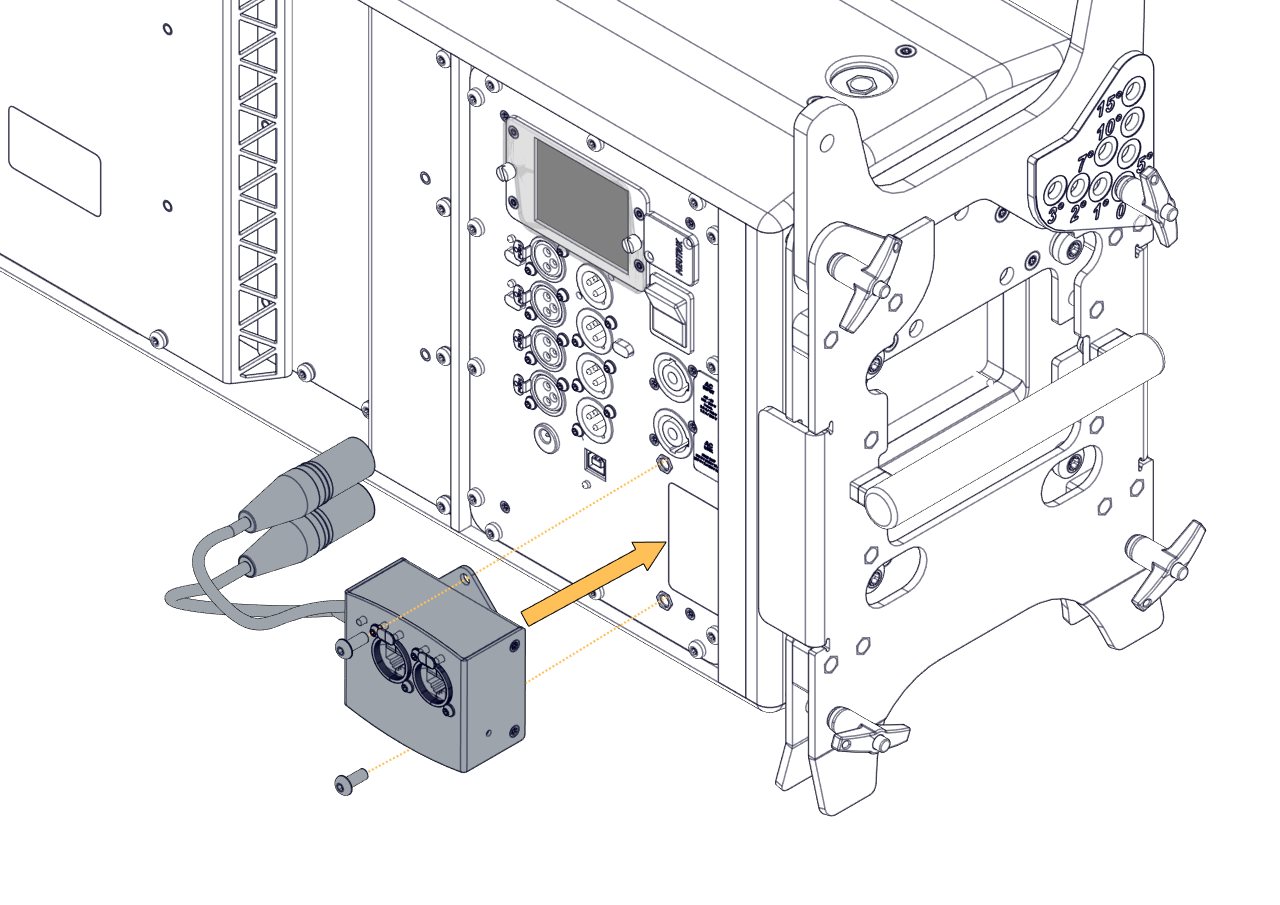

The K-Dante accessory features two RJ45 ethernet connectors that connect many devices together in the same network without the need for any external ethernet switches.

Product Description

Dante is an uncompressed, multi-channel networking technology that transmits digital audio and data across standard IP networks. One cable does it all. A single CAT-5e or CAT-6 can carry both the audio signal (two-channel AES/EBU) and the data to manage all the devices in the network with the K-Framework software. The K-Dante accessory features two RJ45 ethernet connectors that connect many devices together in the same network without the need for any external ethernet switches. Key Features: • Dante interface is compatible with the K-array Concert Series, KA24 and KA84 amplifiers and all Mark I products • Only one CAT5e or CAT6 cable needed to carry both audio signal and data • Two RS45 connectors for daisy-chaining. • 2 channels AES/EBU audio output • RS485 tunneling to access all amplifier’s function via K-framework software • Designed to be integrated with K-array products • 5v micro-USB powered

Download

User Guide
