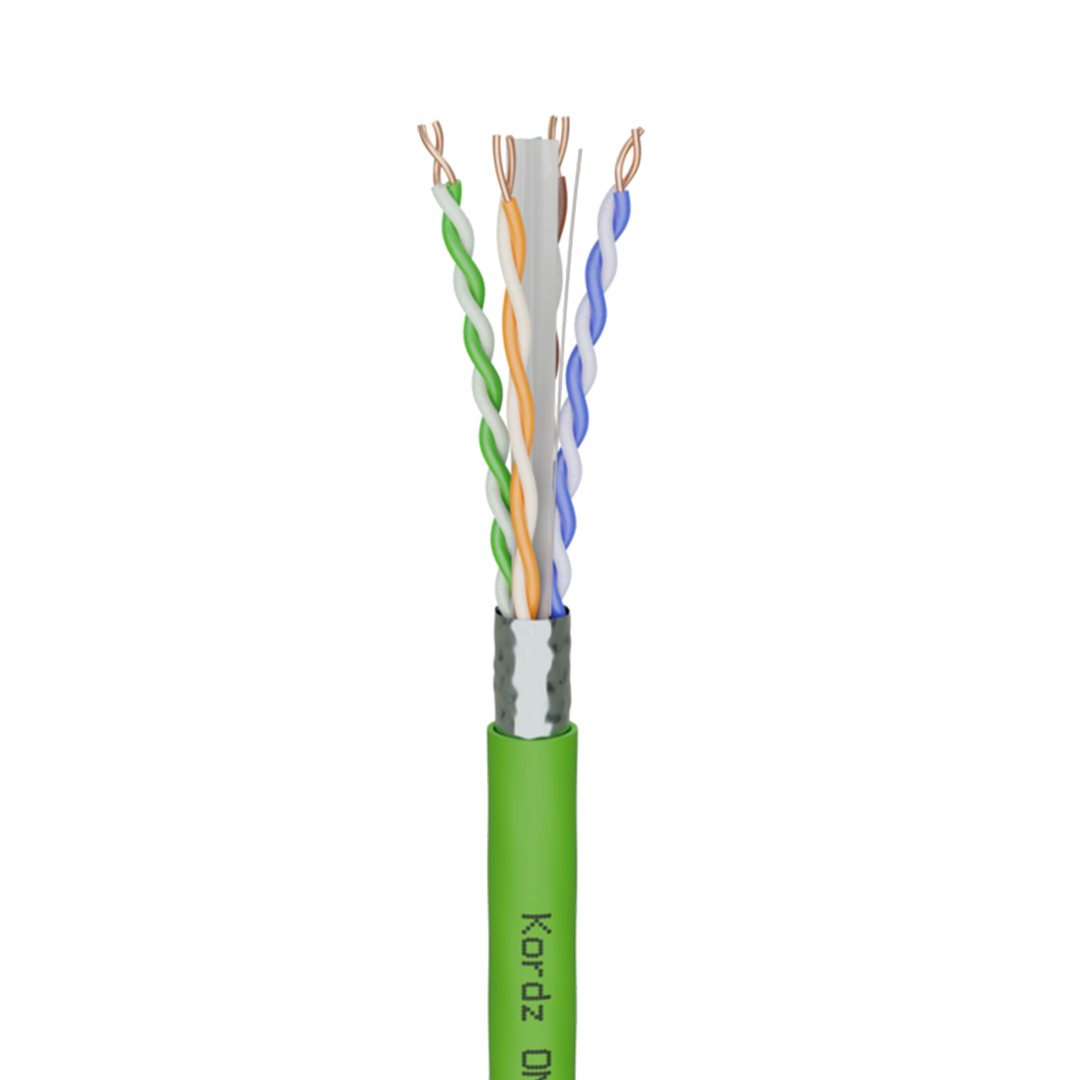

Kordz - ONE CAT6A F/UTP 23AWG LSZH 152.5m

Product Description

Construction

Conductor: Solid OFC annealed bare copper wire 0.561 +0/-0.015mm [23AWG] Insulation: Orange & Brown Pairs – Polyethylene (PE), 1.12+/-0.05 mm Blue & Green Pairs – Foam PE, 0.97 +/-0.05 mm
Twisting: 4 twisted pairs, 2 cores to each pair
Twisted Pair Colour Code: 1 – white/blue, 2 – white-orange/orange, 3 – white/green, 4 – white-brown/brown
Cable Lay-Up: 4 pairs with different pitches, non-metallic cross separator (spine)
Shielding: Drain wire [26AWG], Mylar tape laminated with aluminium foil as a shield
Outer Diameter: 7.4 +/-0.3 mm

Mechanical

Bend Radius: without load ≥ 29.6mm /1.16”, with load ≥ 59.2mm /2.33”
Temperature Range: During Operation: -20°C to 60ºC During Installation: 0°C to 50ºC

Electrical

DC Resistance: ≤ 9.38Ω / 100m at 20ºC
Resistance Unbalance: ≤ 2% at 20ºC
Insulation Resistance (500V): ≥ 5000MΩ / km at 20ºC
Mutual Capacitance: ≤ 5.1 nf / 100m at 1khz
Capacitance Unbalance (pair to ground): ≤ 160 pf / 100m at 1khz
Nominal Velocity of Propagation: nom. 67% c
Test Voltage: 1kV DC / 1 min

Materials / Marking & Fire Rating

LSZH
Kordz ONE Solid OFC UHD/4K Video Network Cable. ETL VERIFIED TIA-568-C.2 (100372289CRT-001c) LSZH CAT6A F/UTP 23AWG. IEC 60332-3-25

FRPVC
Kordz ONE Solid OFC UHD/4K Video Network Cable. ETL VERIFIED TIA-568-C.2 (100709714CRT-002c) CM CAT6A F/UTP 23AWG. UL 444 CM

Colour

Blue: RAL 5015
Green: RAL 6018 (LSZH only)
Purple: RAL 4005 (LSZH only)
Grey: RAL 7044
White: RAL 9003
Yellow: RAL 1018 (LSZH only)

Packaging

Roll Size: 152.5m / 500ft – metre marked
Carton Dimensions: 330mm (W) x 265mm (D) x 340mm (H) / 13.0in (W) x 10.4in (D) x 13.4in (H)
Volume: 0.03m2 / 1.05 cu. ft.
Gross Weight: 9.8kg / 21.6lbs
