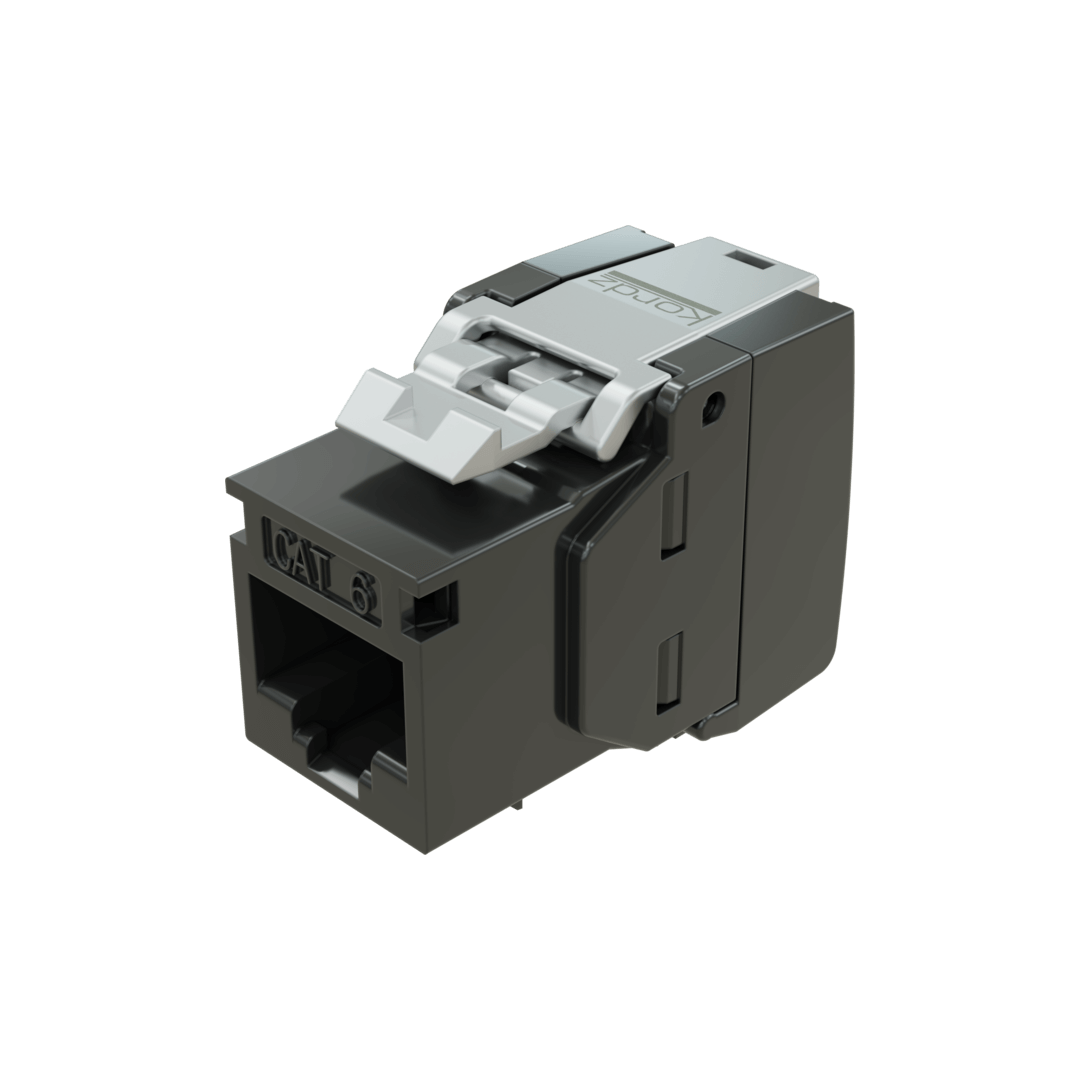

Kordz - PRO Keystone RJ45 Socket

Product Description

Technical specifications

General Information

Connector Part No.: T2R45S-C6XU-XX
Guaranteed Performance Category: Category 6
Applicable Standards: ANSI/TIA-568-C.2
Housing material: Polycarbonate
Flammability Rating: UL 94 V-0
Contact Material: Copper
Contact Plating IDC: Phospher bronze, Tin Plated
Contact Plating RJ45: Gold Plating 50µ” [1.27µm] Housing Colour: White / Black
Shielding Type: Unshielded
Operating Temperature: -40° to 66°C

Mechanical

Keystone Body Length: 37.33mm | 14.7in
Keystone Body Width: 17.10mm | 6.7in
Keystone Body Height: 23.68mm | 9.3in
Panel Mating Height: 16.10mm | 6.3in
Panel Mating Width: 14.50mm | 5.7in

Electronic

Voltage/Current rating UL Applications: 125 Volts AC / 1.5 Amps
Dielectric Withstanding Voltage: 1500 Volts DC / AC Peak
Contact Resistance: ≤ 20mΩ
Insulation Resistance: ≥ 500MΩ
RJ45 Cycle: 750 times
Insertion IDC: 20 times
Wire Gauge min/max: min: 26AWG / max: 23AWG
Conductor Diameter: max:8.5mm Ø
Cable Jacket Diameter max: 6.5mm Ø
