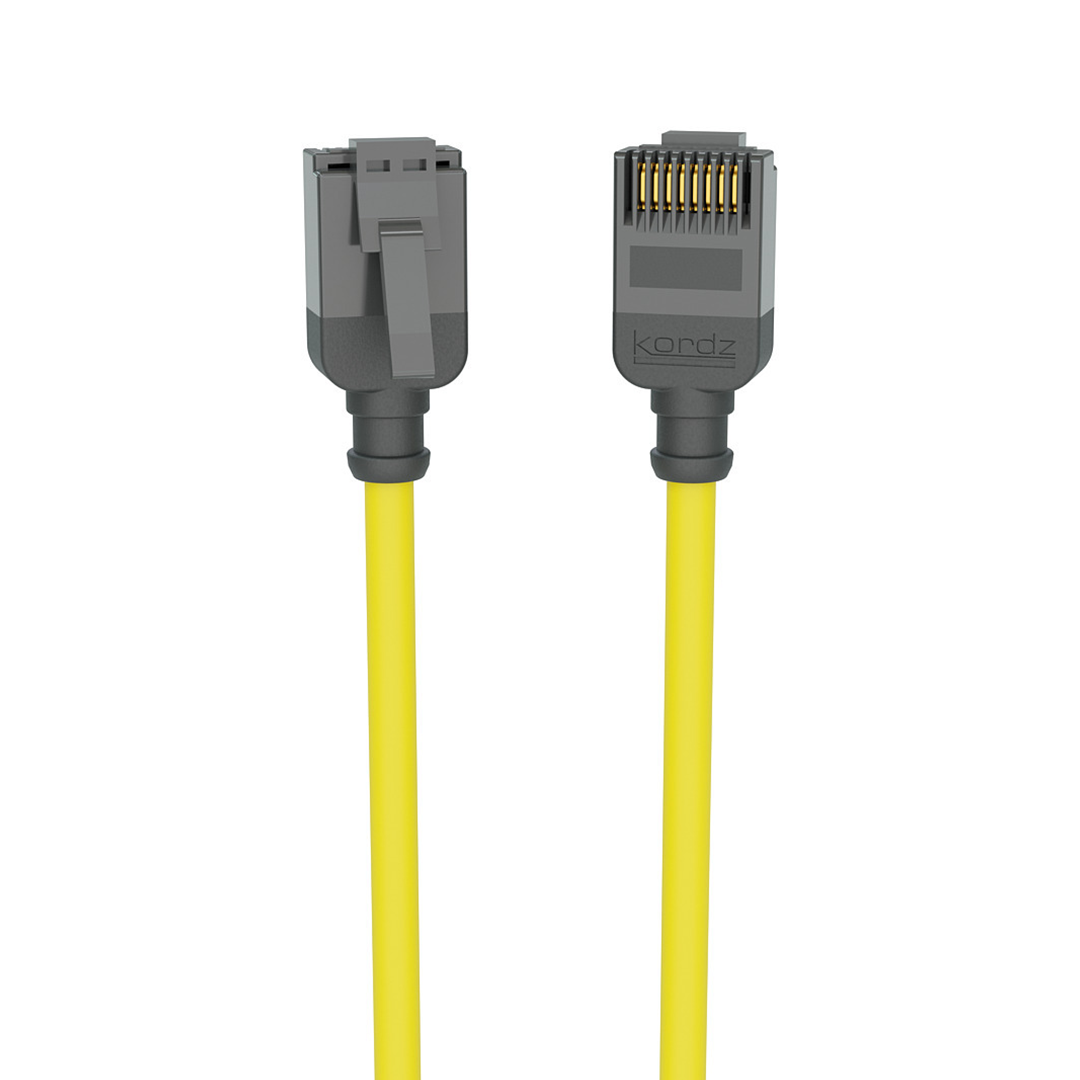

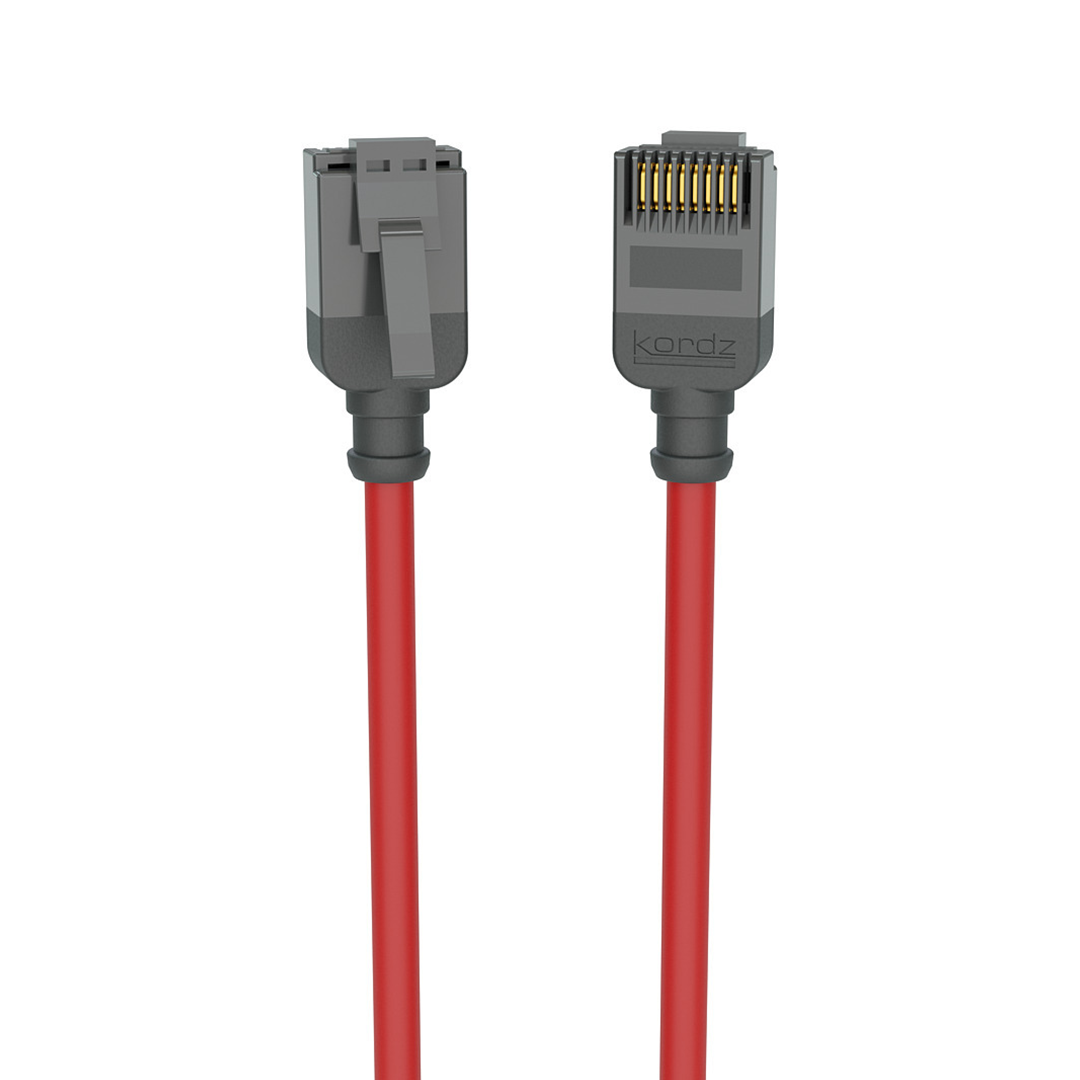

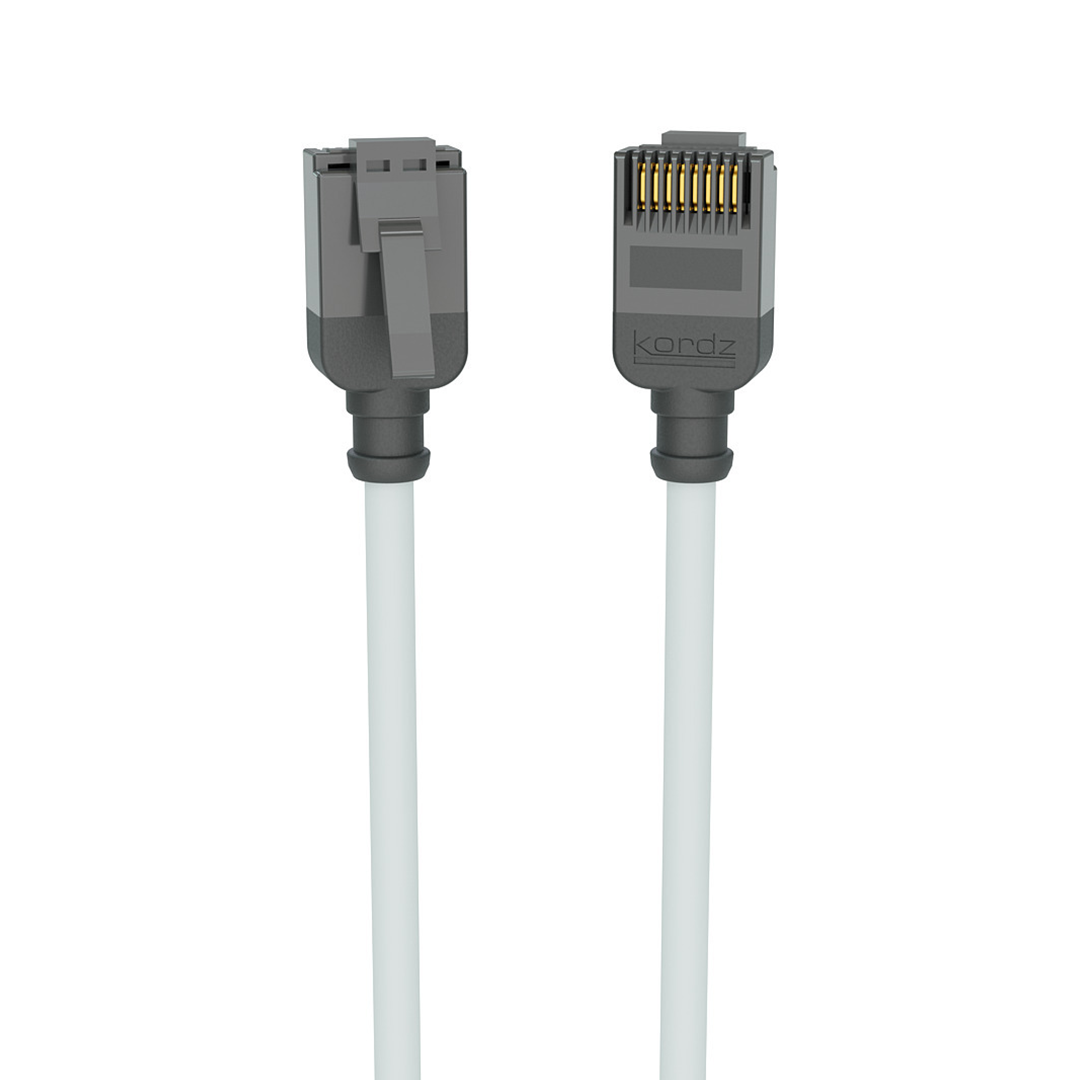

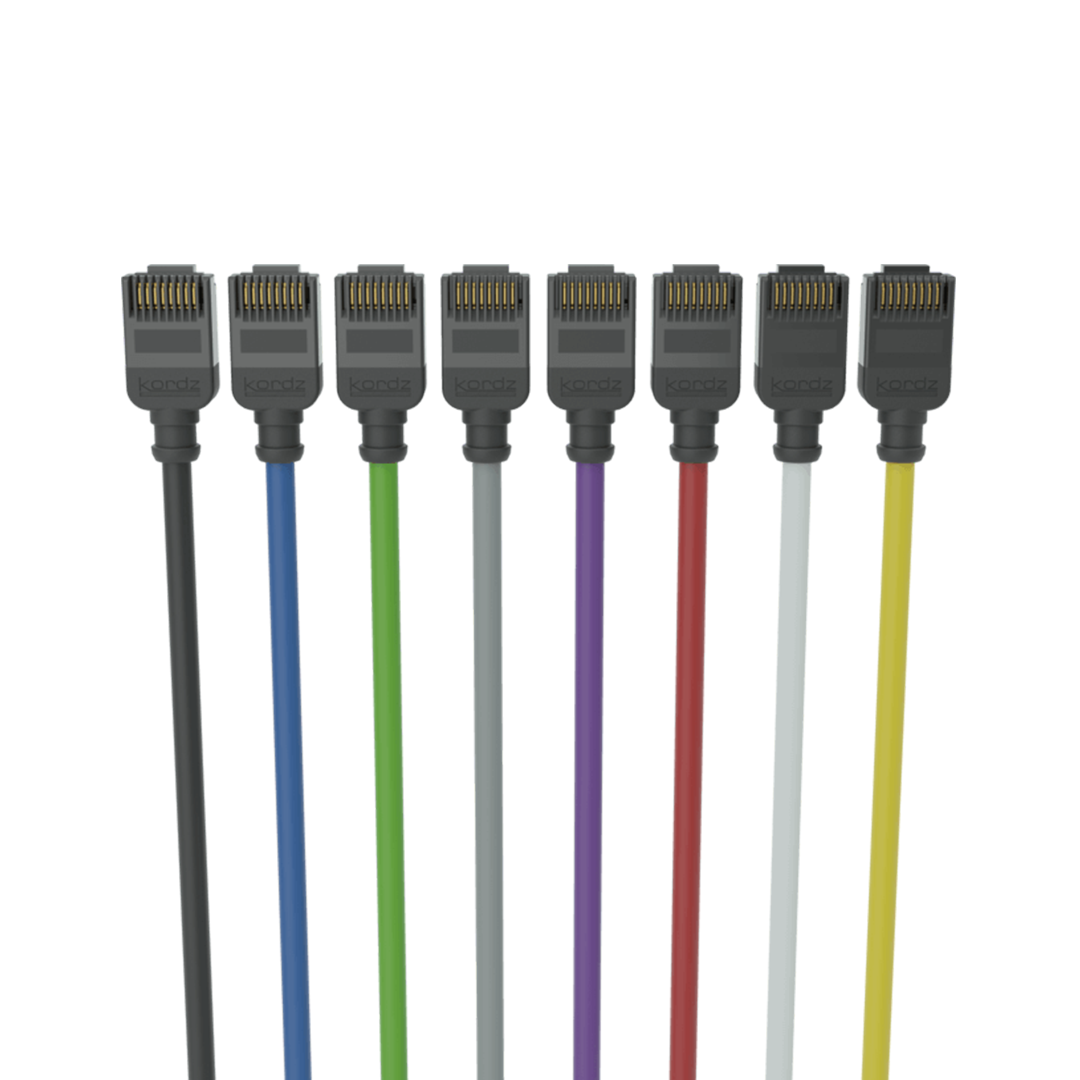

Kordz - PRO Slim Profile Category 6 Network Patch Cord

Product Description

Application Standards:

ANSI/TIA-568.2-D
IEC11802
EN50173
PoE++ 80W

Performance Standard:

≤ 10.0m – Category 6 Component Tested
> 10.0m – Category 6 Channel Tested
Wiring method: T568-B
Certified Data Rate: 1 Gbps (Gigabit ethernet)
Supported Data Rate: ≥ 1 Gbps (Gigabit ethernet)
Certified Bandwidth: 1 to 250 MHz
Supported Bandwidth: ≥ 250 MHz

Mechanical

Cable Diameter: 28 AWG, 3.9mm/0.15ӯ
Maximum Cable Pulling Tension: 80 kgf/cmÇ
Cable to Plug Tensile Strength: TBC
Cable Bend Radius: 11.7mm | 0.46in
Recommended Total Mounting Depth: 27.7mm | 1.09in
Mating Cycles (max.): 1000 cycles
Temperature range: UL Temp rating – 75ºC

Construction

Conductors: Solid 28 AWG Oxygen Free Stranded Copper
Conductor Insulation: Polyolefin
Shielding: Not Applicable
Cable Jacket Material: UL CM-rated PVC
Connector Material: Nylon
Contact Type: 3-prong for solid/stranded conductors
Strain Relief: Injection-moulded PVC

Electrical Characteristics

Conductor Resistance: 223Ω/km
Insulation Resistance: 10MΩ min @100V DC
