KW6-BT - DMX Controlled Kinetic Winch

Product Description

LIFTING MECHANISM

• Lifting Height: 6m Long mode / 3m Short mode
• Lifting Speed: 75cm per second
• Maximum Load on wire: 1.5kg
• Lifitng Precision: 8 and 16 bit channel
• Winch: 3 Phase Motor

CONTROL & PROGRAMMING

• Control protocols: DMX
• RGB Ball Control channels: 5, 6, 9, 10 CHs
• Pixel Tube Control channel: 9, 74, 75, 82, 83 CHs
• Display: LCD Screen Display

ELECTRICAL

• Input voltage: 100-240V/50-60Hz
• Power consumption: 80 watts

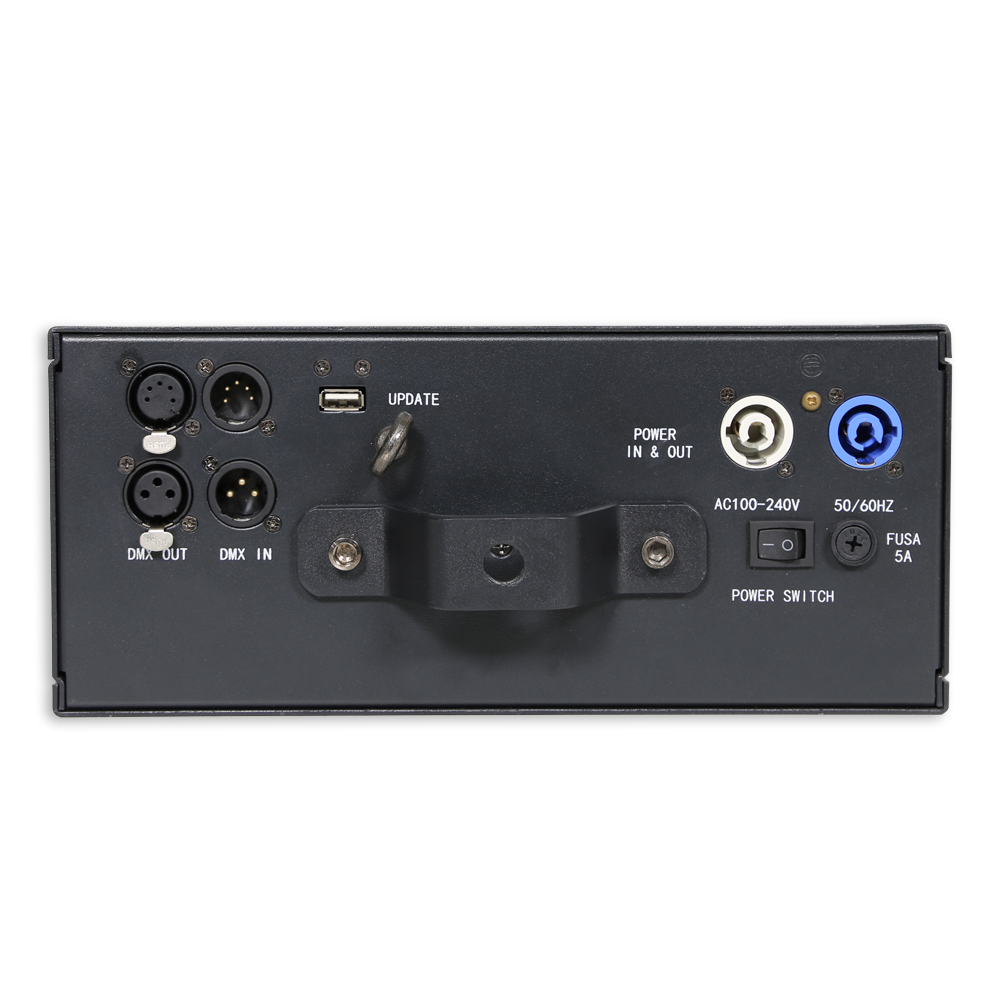

CONNECTIONS

• Fixtures Cable: 4 Core Power and Data cable 1-24V DC
• DMX connections: 3 pin and 5 pin XLR In/Out male and female
• Power connections: PowerCon In and Out
• Maximum quantity in series: 20

PHYSICAL

• Dimensions: 292 x 292 x 125mm (without clamp)
• Weight: 5.7kg
• Color: Black
• Working Temperature: 5° to 45°
• IP rating: 20
