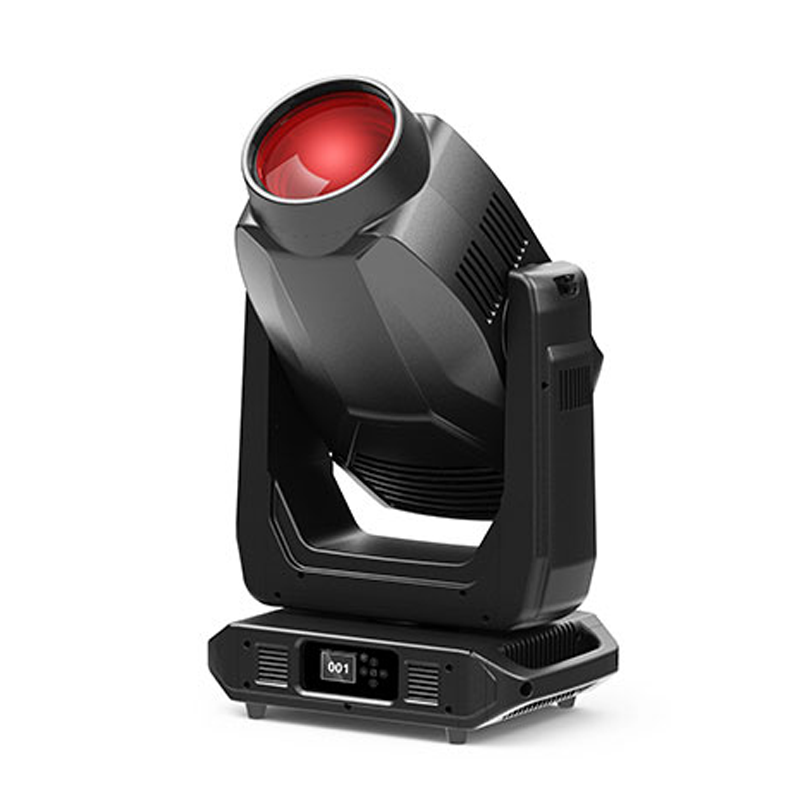

VLZ Wash - High Output LED Wash

The ideal LED replacement solution to the VL3000 wash light or any other 1,000W to 1,400W lamped professional moving wash light.

Product Description

The ideal LED replacement solution to the VL3000 wash light or any other 1,000W to 1,400W lamped professional moving wash light.

The Philips Vari-Lite VLZ Wash can stand alone or is the perfect partner to both the VLZ Spot and Profile luminaires. Utilizing the latest high output LED light engine and an identical CMY-CTO color system to produce stunning colors. The dual fixed color wheel with linear control gives access to Vari-Lite colors and split color combinations. Color shake and color wheel spin control have also been added for more dynamic color effects. All of this is bundled into a luminaire that produces a staggering 25,000 lumens projected from a large 155mm (6”) lens.

The enhanced fan control system allows users to choose one of four fan levels to match the output they require for a show remotely from a console. In addition to the wide zoom range, and making them the most versatile larger wash fixture on the market. Beam-Shaping control can be achieved via 3 different systems used independently of each other; A set of 4 internal barn doors shape the beam and can be rotated ±50° from center. A indexing and rotating lenticular lens can change the beam from round to oblong; 4 different beam edge softness grades are achievable using the beam softening control taking it from a hard-edged PC beam to a soft edge fresnel.



Key features and benefits:

  • 5,000-lumen output.
  • Wide zoom range 7°-50°
  • Camera friendly – separate frequency and gamma control of LED array.
  • Beam shaping control masking barndoor system with 4 blades frame rotation ±50 degree either side of center and a separate lenticular lens.
  • Two-year limited warranty.
  • Multiple fan level controls: -Standard     -Studio     -Studio 2      -Whisper
  • 155mm large aperture wash lens
  • 16-bit dimmer control with 4 selectable curves.
  • Full-Color mixing and Color effects CYM + CTO 2 color wheels total of 12 fixed color shake and wheel spin functions.
  • Beam edge control, from beam to Fresnel
  • Fast, accurate and repeatable movement on all functions.
  • Masking barndoor system with 4 blades frame rotation +/- 50 degree either side of center.
