LumiGo BOOK610 - Battery-operated Outdoor LED Wash with CRMX and APP Control

LumiGo BOOK610

LumiGo BOOK610

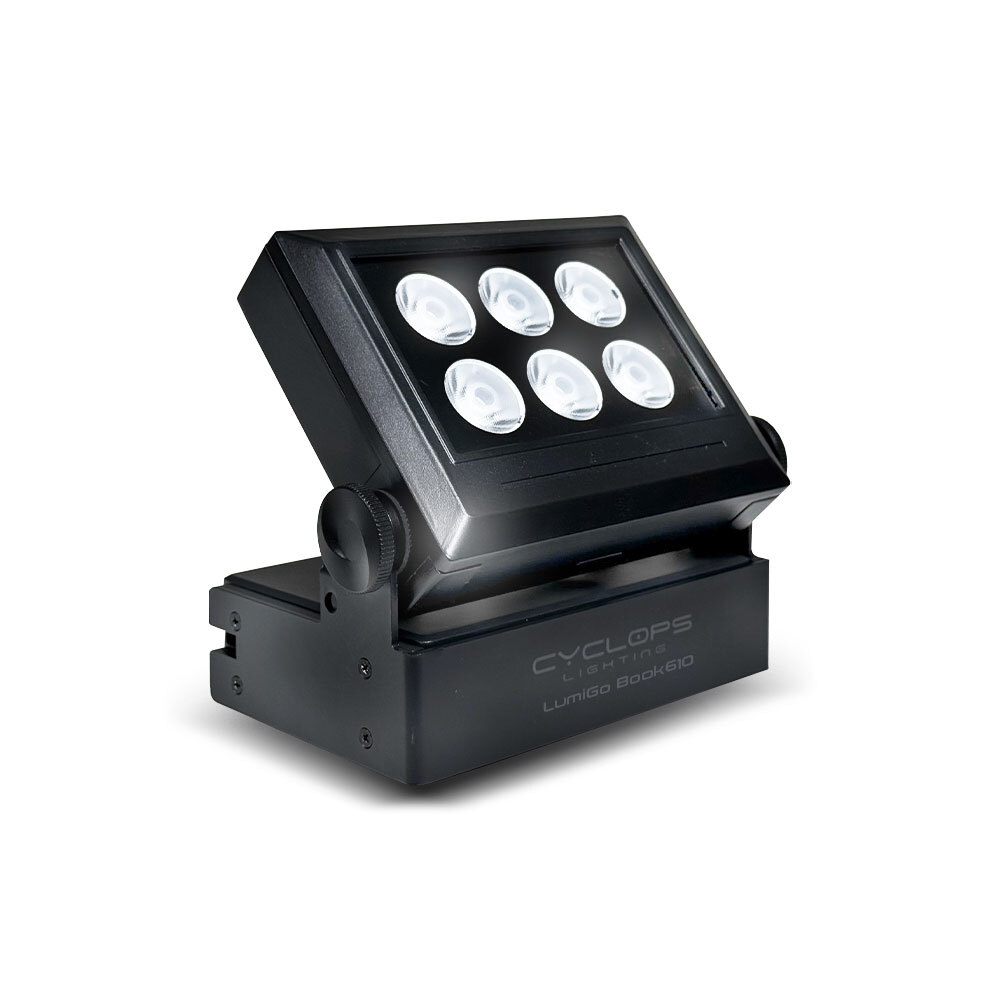

LumiGo BOOK610 is a battery-operated outdoor LED Wash that offers exceptional flexibility with CRMX wireless control and iOS / Android / Windows app compatibility, allowing for effortless customization and remote operation.

Designed in a compact, rugged housing, it features easy adjustable angling to direct the light precisely where it’s needed. Powered by 6x10W RGBW LEDs, it delivers a vibrant and sharp wash with a native 12° beam angle, providing bright, saturated color output. With an IP65 rating, this fixture is built to withstand outdoor conditions, ensuring reliable performance in any environment.

LumiGo BOOK610 comes with 8 units, offering professional lighting solutions with portability and ease of use and safe transport, making it ideal for events, festivals, and installations.

Control LumiGo BOOK610 effortlessly with the VISION CONTROL APP, available on iOS, Android, and Windows for convenient remote adjustments. The built-in CRMX wireless DMX receiver by Lumen Radio enables effortless, real-time management during events, installations, and productions, eliminating complex setups for dynamic control in fast-paced environments.

SKU: LGWASH610-KIT8 Categories: Battery Lighting, LED Washes, Lighting Brand: Cyclops LightingSeries: Lumigo Series

Description
Downloads

Product Description

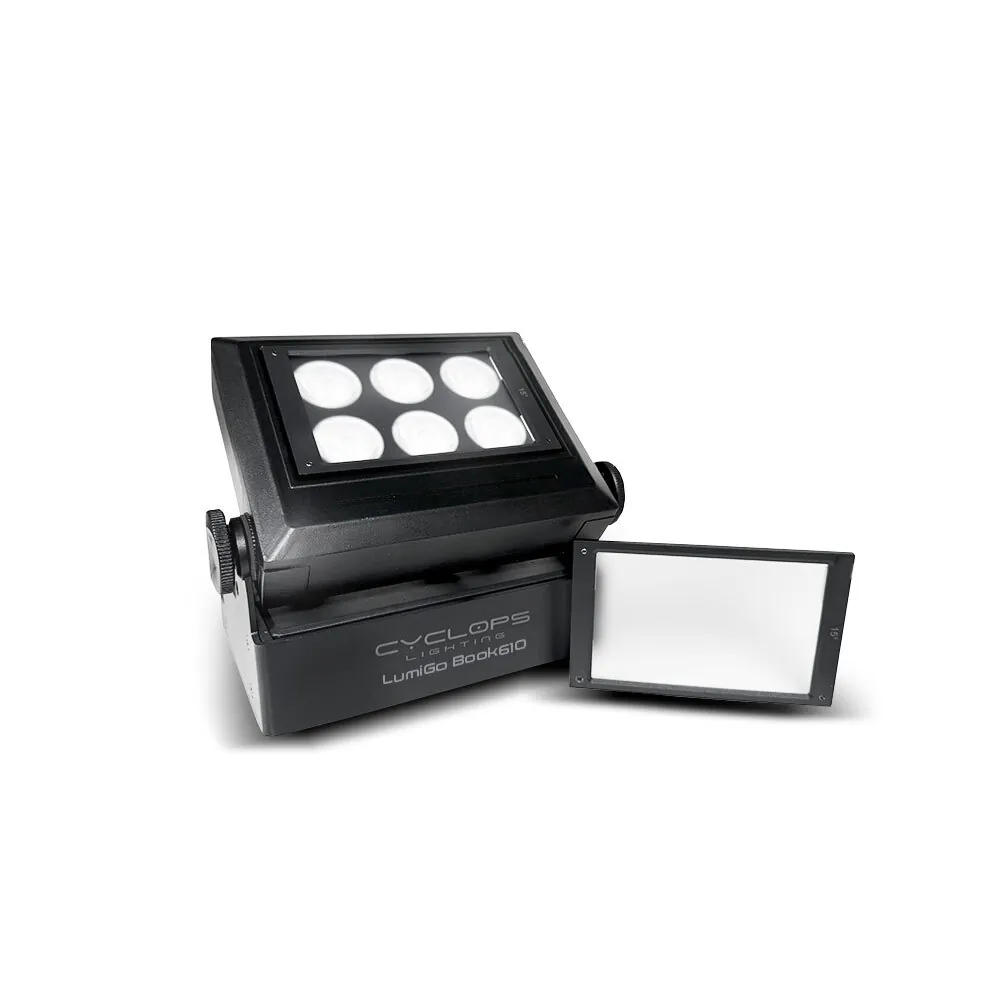

The kit includes:

8 x LumiGo BOOK610 (LGWASH610)
8 x Magnetic Frost Filter 10°x60° (FF15-LGWASH610)

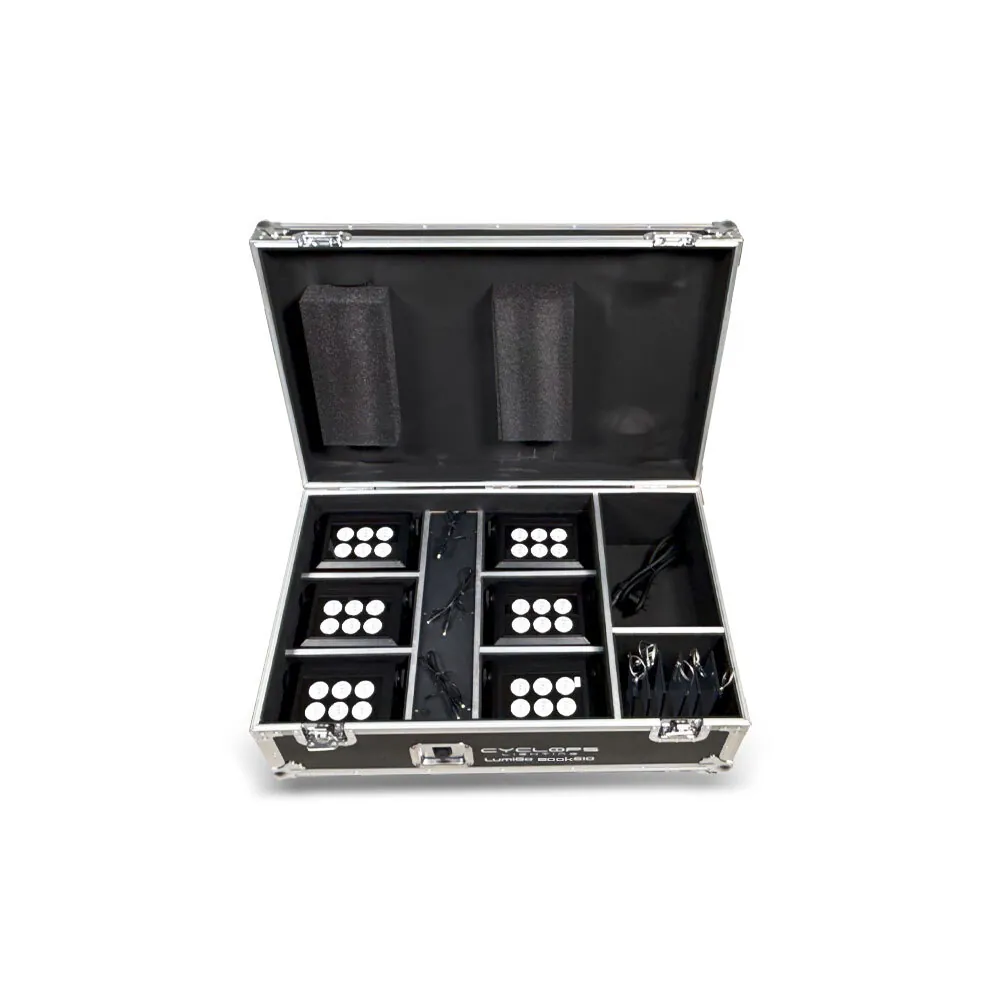

1 x Flight Case (FC-LGWASH610)

SOURCE

Light source: 6x10W RGBW LED
Output:

– Light output all LEDs on:1358 LM
– Light output red:292 LM
– Light output green:534 LM
– Light output blue:94 LM
– Light output white:625 LM

Illuminance:

– Lux @ 2m:4712 LX
– Lux @ 5m:754 LX
– Lux @ 8m:295 LX
– Lux @ 10m:189 LX

LED Life expectancy: 50,000 hours

OPTICAL SYSTEM

Beam angle: 20°
Optional Frost filter: 15° (SKU: FF15-LGWASH610 – included in kit LGWASH610-KIT8)

DYNAMIC EFFECTS

Dimmer: 0-100% linear adjustment
Four dimming curves
Color mixing: RGBW
Color temperature adjustments: 3000 to 10000K
Electronic Strobe: 0-20 Hz

CONTROL & PROGRAMMING

Control Protocols: DMX/RDM, CRMX Wireless DMX, iOs/Android/Windows Application control, Remote control, Manual
Channel mode: 2, 3, 5, 8, 11, 15 channels
Display: LCD

BATTERY

Battery Life: Up to 19H
Multiple battery usage option: 16 options selection between 4H to 19H with 1 hour increments

– Battery Boost/4H/5H/6H/7H/8H/9H/10H/11H/12H/13H/14H/15H/16H/17H/18H/19H

Battery charge time: 4.5H

ELECTRICAL

Input voltage Rating: DC 18V-20V
Maximum Power consumption: 53W
LED PWM Frequency: 600/1.2K/2.4K/4.8K/12K/18K (hz)

PHYSICAL

Material: Aluminum
IP Rating: 65
IK Rating: IK07
Operating Temperature: -20°~50°C
Humidity: 98%
Dimensions: 225 x 150 x 130.5 mm
Weight: 3.3 Kg
