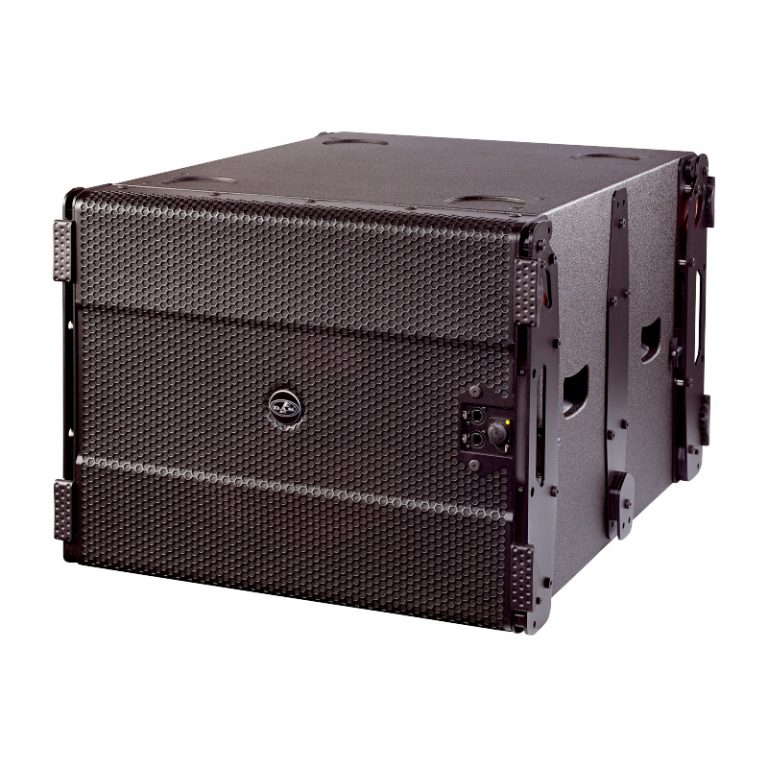

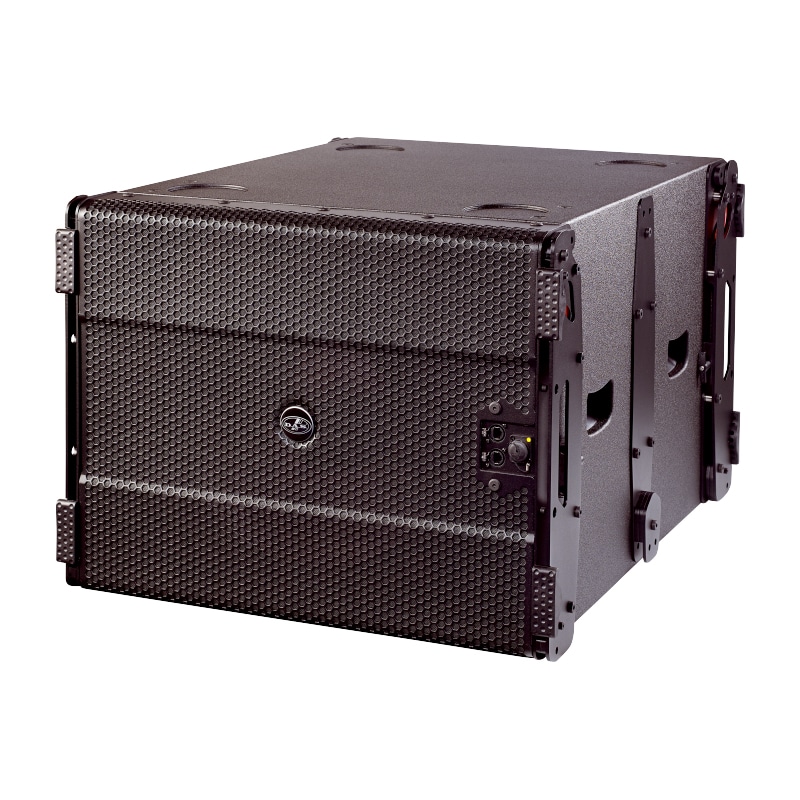

LX-118A - Arrayable Powered Subwoofer System

The LX-118A makes use of the 18LXN neodymium loudspeaker equipped with a 4″ voice coil. Improved voice-coil materials, magnet circuit and surround design provide high power handling, low power compression, and low distortion. The LX-118A offers a frequency range of 33 Hz – 120 Hz yielding a maximum peak SPL of 135 dB.

SKU: LX-118A Categories: , Brand: Series:

Product Description

The LX-118A makes use of the 18LXN neodymium loudspeaker equipped with a 4″ voice coil. Improved voice-coil materials, magnet circuit and surround design provide high power handling, low power compression, and low distortion. The LX-118A offers a frequency range of 33 Hz – 120 Hz yielding a maximum peak SPL of 135 dB.

The system incorporates a 1200 W continuous, universal mains, Class D switching amplifier. Remote monitoring and control are provided by way of DASnet™, the audio management application for D.A.S. powered cabinets and processors. A family of Low Pass filters can be selected using  DASnetTM or the controls on the amplifier´s rear panel. For each selection, a cardioid preset is also available.

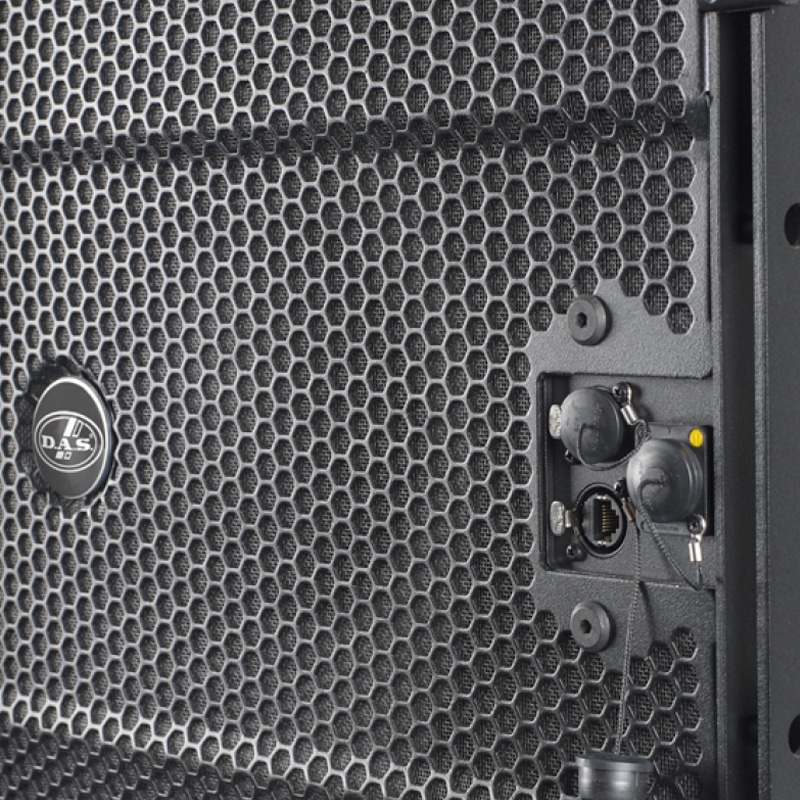

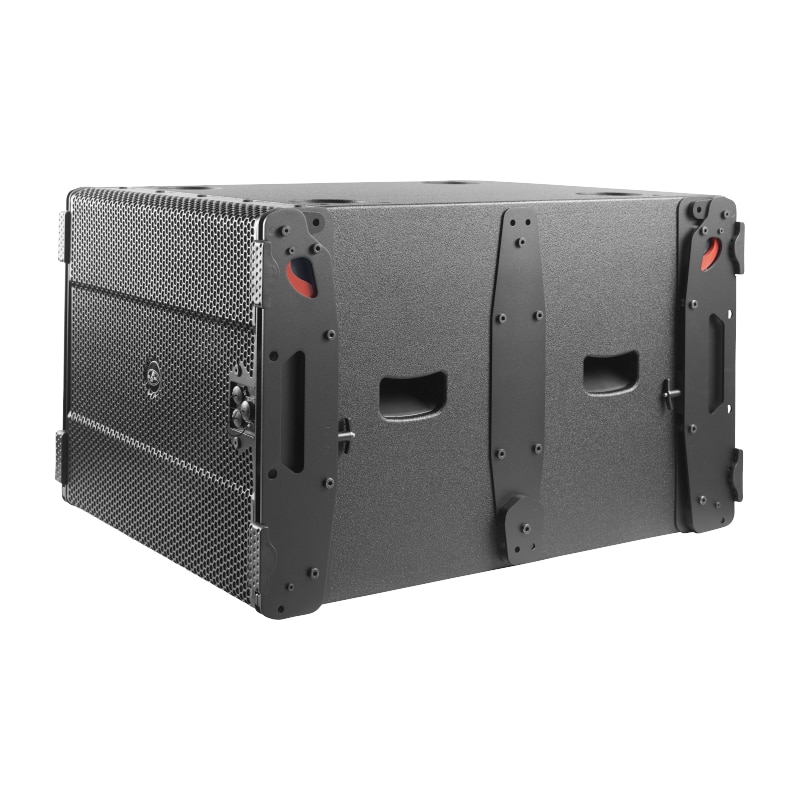

The enclosure is constructed using Birch plywood and makes use of extensive bracing to eliminate resonances. The woodwork is finished with the robust D.A.S. ISO-flex protective coating for durability. The captive rigging hardware allows the Aero 20A to be flown directly below the subwoofer unit without the need for adaptors. Front located connectors (power, audio, and DASnetTM) allow easy installation when using cardioid configurations.

FEATURES

– Arrayable powered subwoofer system
– 2400Wpeak Class D amplifier with universal mains
– Remote Monitoring and Control via DASnet™
– DASnet™ cardioid preset selection
– DASnet™ Low Pass filter selection
– Captive ultra fast rigging hardware
– Compatible with aero 20A

Technical Data

Nominal LF Amplifier Power 1200 Wcontinuous
Frequency Range (-10 dB) 33 Hz – 120 Hz
Rated Peak SPL at 1 m 135 dB
Connectors Audio INPUT: Female XLR
Audio LOOP THRU: Male XLR
Audio + data INPUT: etherCON (DASnet)
Audio + Data OUTPUT: etherCON (DASnet)
AC INPUT: powerCON TRUE1
AC OUTPUT: powerCON TRUE1
AC Requirements 3.6A, 115 V, 50 Hz/60 Hz
1.8A, 230 V, 50 Hz/60 Hz
Enclosure Material Birch Plywood
Color/Finish Black / ISO-flex Paint
Dimensions (H x W x D) 50 x 65 x 81 cm
19.7 x 25.6 x 31.9 in
Weight 47 kg (104 lb)
