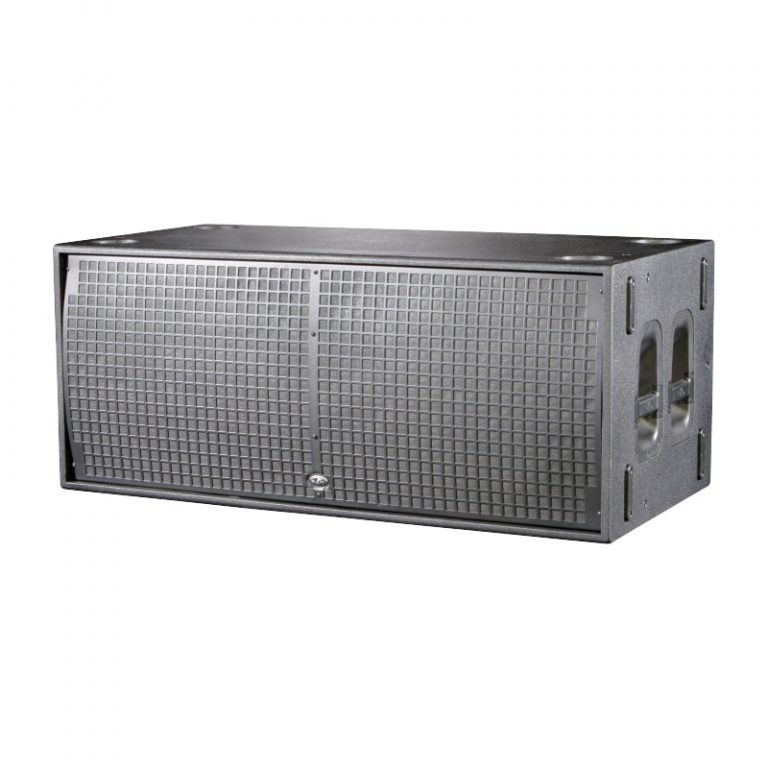

LX-218C – Externally Powered High-performance Subwoofer System

The LX-218C is an externally powered, high-performance subwoofer system designed to provide outstanding performance in terms of output power, bandwidth extension and distortion.

Product Description

FEATURES – High performance subwoofer system – Two 18LXN long excursion loudspeakers – Birch plywood construction, black ISO-flex paint – Front loaded, bass-reflex configuration The LX-218C is an externally powered, high-performance subwoofer system designed to provide outstanding performance in terms of output power, bandwidth extension and distortion. The LX-218C incorporates the 18LXN long excursion cone transducer. The newly developed LXN loudspeakers are a significant improvement over their predecessors offering increased power handling, reduced distortion, and power compression. The subwoofer can be stacked vertically on the PL-218CS dolly facilitating transport in touring applications of up to 3 units. For the transport of individual units, an optional rear casters kit (KITW-100) is available. The LX-218C can be upgraded to the “R” version by way of the optional rigging hardware kit (KITR-LX218C) which includes the captive rigging system, fasteners and 8 mm quick release safety pins needed for one cabinet. TECHNICAL DATA
Frequency Range (-10 dB) 28 Hz – 100 Hz
RMS Power Handling 2000 W
On-axis Sensitivity 1 W / 1 m 103 dB SPL
Rated Peak SPL at 1 m 142 dB
Nominal Impedance 4 ohms
Enclosure Material Birch Plywood
Color/Finish Black/ISO-flex Paint

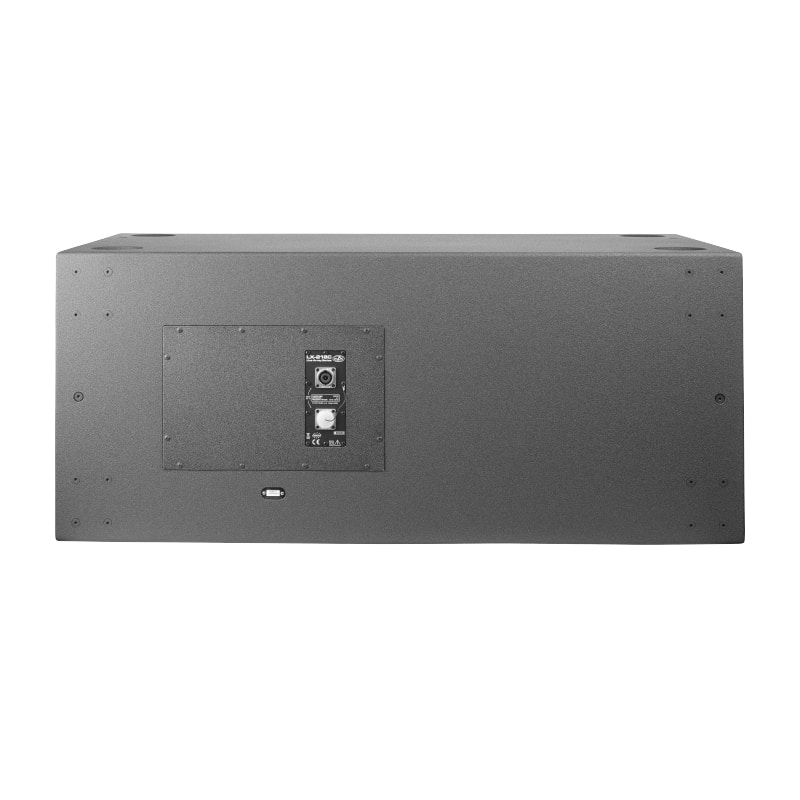

Connectors 2 x NL8 speakON
Dimensions (H x W x D) 55 x 128 x 63.2 cm 22 x 51 x 24.9 in
Weight 78.5 kg (176.1 lb)
