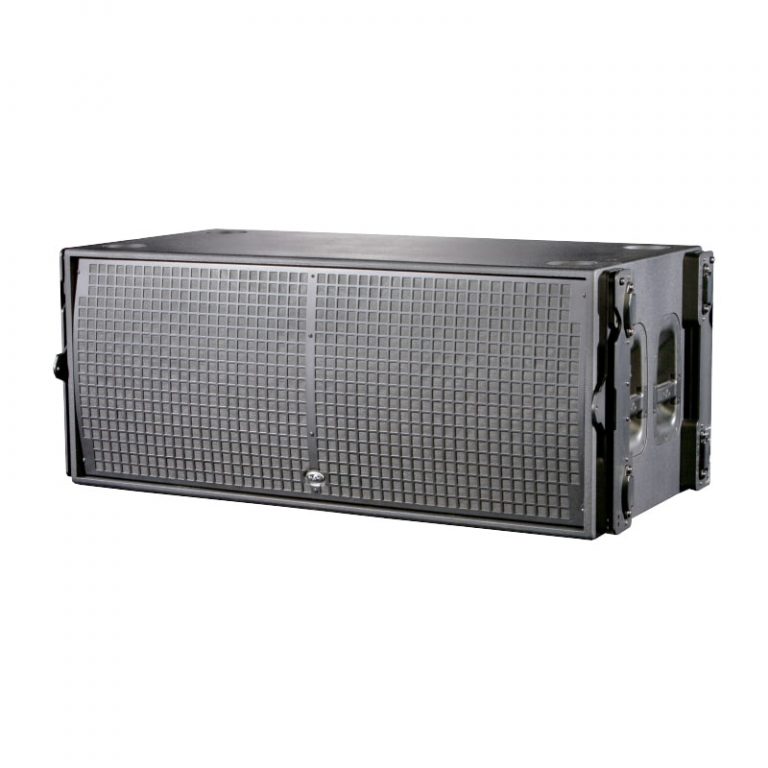

LX-218CR - High Power, Powered Subwoofer System by DAS Audio, LX Series

Product Description

The LX-218CR is a high-power subwoofer system designed to provide outstanding performance in terms of output power, bandwidth extension, and distortion.

The LX-218CR incorporates the 18LXN long excursion cone transducer. The newly developed LXN loudspeakers are a significant improvement over their predecessors offering increased power handling, reduced distortion and power compression.

“R” versions are equipped with a captive rigging system that is compatible with D.A.S. Aero line array accessories. The subwoofers can be stacked vertically on the optional PL-218CS dolly panel facilitating the transport in touring applications of up to 3 units. A front dolly panel (PL-LX218CS) is included with “R” version cabinets and is available as an option for LX-218C cabinets upgraded with rigging hardware.

FEATURES

– High performance subwoofer system
– Two 18LXN long excursion loudspeakers
– 18 mm Birch plywod construction, ISO-flex black paint
– Front loaded, bass-reflex configuration

TECHNICAL DATA

Frequency Range (-10 dB)	28 Hz – 100 Hz
RMS Power Handling	2000 W
On-axis Sensitivity 1 W / 1 m	103 dB SPL
Rated Peak SPL at 1 m	142 dB
Nominal Impedance	4 ohms
Enclosure Material	Birch Plywood
Color/Finish	Black/ISO-flex Paint
Connectors	2 x NL8 speakON
Dimensions (H x W x D)	55 x 135 x 69.6 cm 22 x 54 x 27.4 in
Weight	94.5 kg (207.9 lb)
