M215 - High-Power, High-Performance Stage Monitor

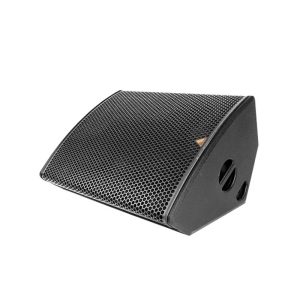

The Adamson M215 monitor delivers everything you want and more in a conventional stage monitor: extremely high-power and high-performance with zero distortion. The trapezoid enclosure features symmetrical driver placement with a 50° conical waveguide resulting in outstanding directivity control. Designed for use as a stage monitor, it can also double as a superior drum or stage-fill enclosure, specifically aimed for performers wanting extra high SPL without losing intelligibility.

Product Description

The M215 exhibits remarkably low distortion thanks to the superior qualities of its multi-layer Kevlar cone driver.  The two long excursion, light-weight Neodymium ND15-L drivers supply exceptional power handling with a rock solid low frequency response. Together, the brand new surround design, and Adamson’s Advanced Cone Architecture, make the ND15-L the only 15” driver with zero axial modes in its entire passband, dramatically increasing the linearized mid-band response.  The cone design also enforces extreme durability in wet conditions making the M215 an ideal solution for outdoor events.

Specifications:

  • Frequency Range (+/-3 dB): 45 Hz – 18 kHz
  • Nominal Directivity (-6 dB): H x V 50° x 50°
  • Maximum Peak SPL**: 143.7 dB
  • Components LF: 2x ND15-L 15″ Kevlar Neodymium Driver
  • Components HF: B&C DE1000 4″ Diaphragm / 1.5″ Exit Compression Driver
  • Nominal Impedance LF: 4 Ω
  • Nominal Impedance HF: 8 Ω
  • Power Handling (AES / Peak) LF: 2x 500 / 2x 2000 W
  • Power Handling (AES / Peak) HF: 140 / 560 W
  • Connection: 4x Speakon™ NL4
  • Height Front (mm / in): 470 / 18.5
  • Width (mm / in): 818 / 32.2
  • Depth (mm / in): 605 / 23.8
  • Weight (kg / lbs): 41.6 / 91.5
  • Supported Processing: Lake, XTA

    **12 dB crest factor pink noise at 1m, free field, using specified processing and amplification

Download

Data Sheet
