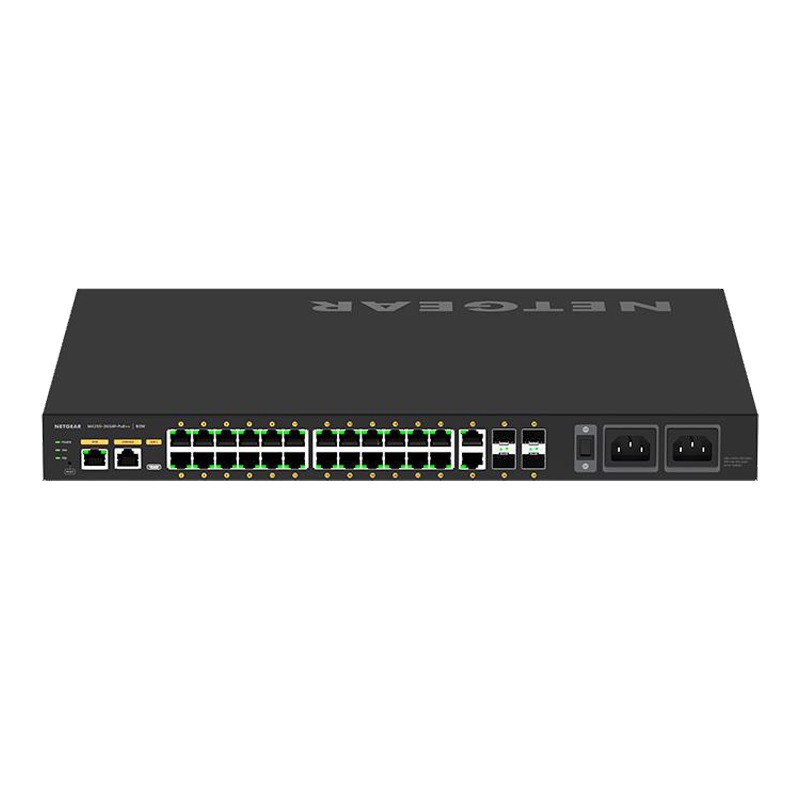

M4250-26G4F-PoE++ - 24x1G PoE++ 1,440W 2x1G and 4xSFP Managed Switch

M4250-GSM4230UP, AV Line 24x1G Ultra90 PoE++ 1,440W 2x1G and 4xSFP Managed, Rackmount, Layer 3 Switch
Switching Capacity 60 Gbps, Latency <2.15µs 1G, Jumbo Frames Up to 12K, AV Dedicated UI, 16K MAC, 4K ARP/NDP, Multicast IGMP Group membership 2K Ipv4 & IPv6, VLANs 4K, DHCP Server: 2K leases, PoE++ 1,440W, 1U rackmount

SKU: GSM4230UP Categories: , Brand: Series:

Product Description

Technical Specifications:

  • Primary Port Speed : 1 Gigabit
  • Number of Ports : 30 (24x 1G PoE++, 2x 1G, 4x SFP)
  • PoE Ports / Budget : 24 PoE++ (90W/port), 1,440W Budget
  • IGMP Support : Enhanced (NETGEAR IGMP Plus™)
  • Jumbo Frame Support : Yes, up to 12kb
  • AVB Support : Yes. Electronic license required, activation key sent via email (AVB4230UP-10000S).
  • Acoustics : Fanless or 60dB@25ºC
  • Power Consumption : Single AC With PoE: 889W/3035.05Btu/hr
  • Dual AC With PoE: 1734W/5919.88Btu/hr
  • Without PoE: 48.8W/166.6Btu/hr
  • Standby without any port connection: 36.9W/125.98Btu/hr
  • Dimensions (WxDxH) : 440 x 400 x 43.2 mm
  • Weight : 6.75Kg (14.87lb)



Additional information

Weight 4.75 kg
Dimensions 0.0 × 0.0 × 0.0 cm

Download

Data Sheet
