MagicDot XT - Ultra-powerful Low-etendue RGBW Multichip LED Emitter

Optics

• Beam aperture: 2°
• 85% optic efficiency
• 126mm PMMA collimator optic

Light source

• 1,000 lumens RGBW High-Power LED source
• Total luminaire output: up to 850 lumens
• Luminous intensity: 580,000 cd (narrow beam)
• Rated life (L70): up to 40,000 hours
• Flicker free sources management, suitable for TV applications and all video recorded events

Movement

• Extremely accurate positioning
• Moving-head operated via either 8- or 16-bit resolution
• High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements.
• Pan and tilt automatic repositioning
• Moving-head range: infinite pan and tilt rotation

Colours

• Sophisticated 4 colours RGBW mixed, reaching high Colour Rendering Index
• Light beam with no colour shadows, and rich saturated and pastel colour-hues
• 4.29 billion colours (8 bit resolution)
• Virtual colour wheel, including most usuals white colour temperature presets
• Dynamic colour macro effect with variable speed

Dimmer / strobe

• Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
• White or colour strobe effect, with speed adjustment from 1 to 25 flashes per second

Software features

• Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
• Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
• Information menu including hour counter, temperature, software version

Hardware features

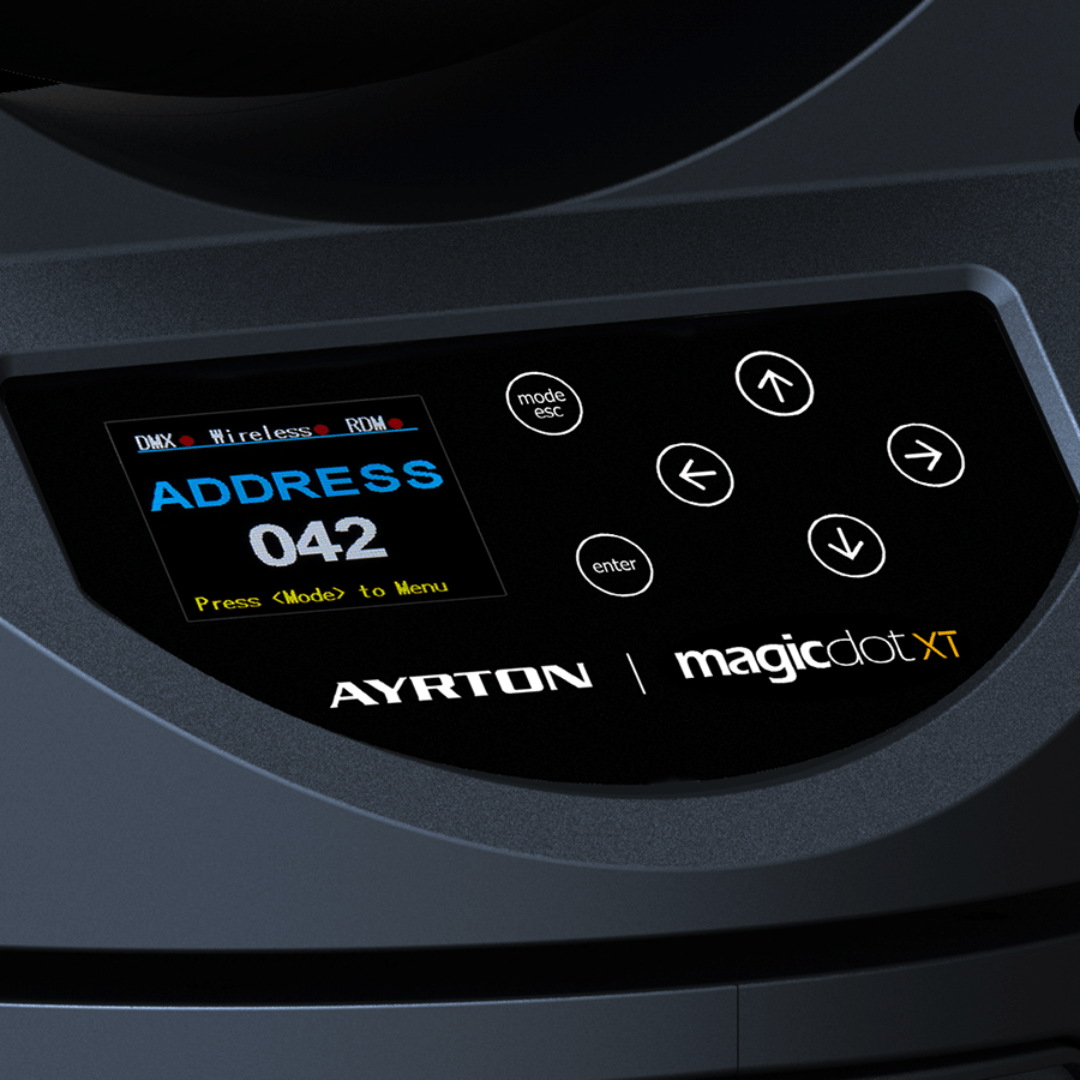

• Graphic LCD display for addressing and special functions settings, with flip function
• 6 menu buttons to set the functions
• Excess temperature protection
• Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™
• XLR 5 pin male and female connectors for DMX connection
• powerCON TRUE1 male and female connectors for power connection

Control

• DMX 512 protocol, through DMX cable or wireless system
• DMX-RDM compatible
• Stand-alone mode and Master/Slave modes
• Local control panel, with LCD display
• Choice of 2 DMX modes (from 15 to 17 DMX)

Power supply

• Electronic supply with active PFC
• 100 to 240 Volts – 50/60 Hz
• Power 100 W maximum

Cooling system

• Advanced cooling system based on heatpipe technology
• Self adjusting variable speed fans for quiet operation (Auto mode)
• Selectable auto, stage & studio ventilation modes
• Safety protection against temperatures excesses

Housing

• Moving-head skeleton made of aluminium and steel metal plates
• Heatsinks in aluminium and copper, satin finish
• Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
• Two sides handles for transportation
• Four heavy-duty feet for better stability
• IP20 protection rating
• Exterior finish: black (Carbon)

Installation

• Fastening brackets system: one Omega 1/4 turn brackets designed for use with standard clamps
• Mounting points: two 1/4 turn locking fittings allowing installation of Omega brackets on luminaire
• Safety cable attachment point

Operating parameters

• Operating positions: all (device on floor or fixed to a support)
• Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)
• Minimum permitted ambient temperature (Ta min): -10 °C (14 °F)
• Minimum usage distance: 2.0 m (6.56 ft)

Compliance:
EU (EMC):

• EMC Directive 2014/30/EU

EU (LVD):

• LVD Directive 2014/35/EU

US Safety:

• UL 1573

Size

• Product: 235 x 360 x 235 mm (l x h x d)
  Flight-case foam: 290 x 355 x 290 mm (l x h x d)

Weight

• Product: 6.2 kg

Product codes

• 015170: MAGIDOT XT – CREATIVE SOLUTION
