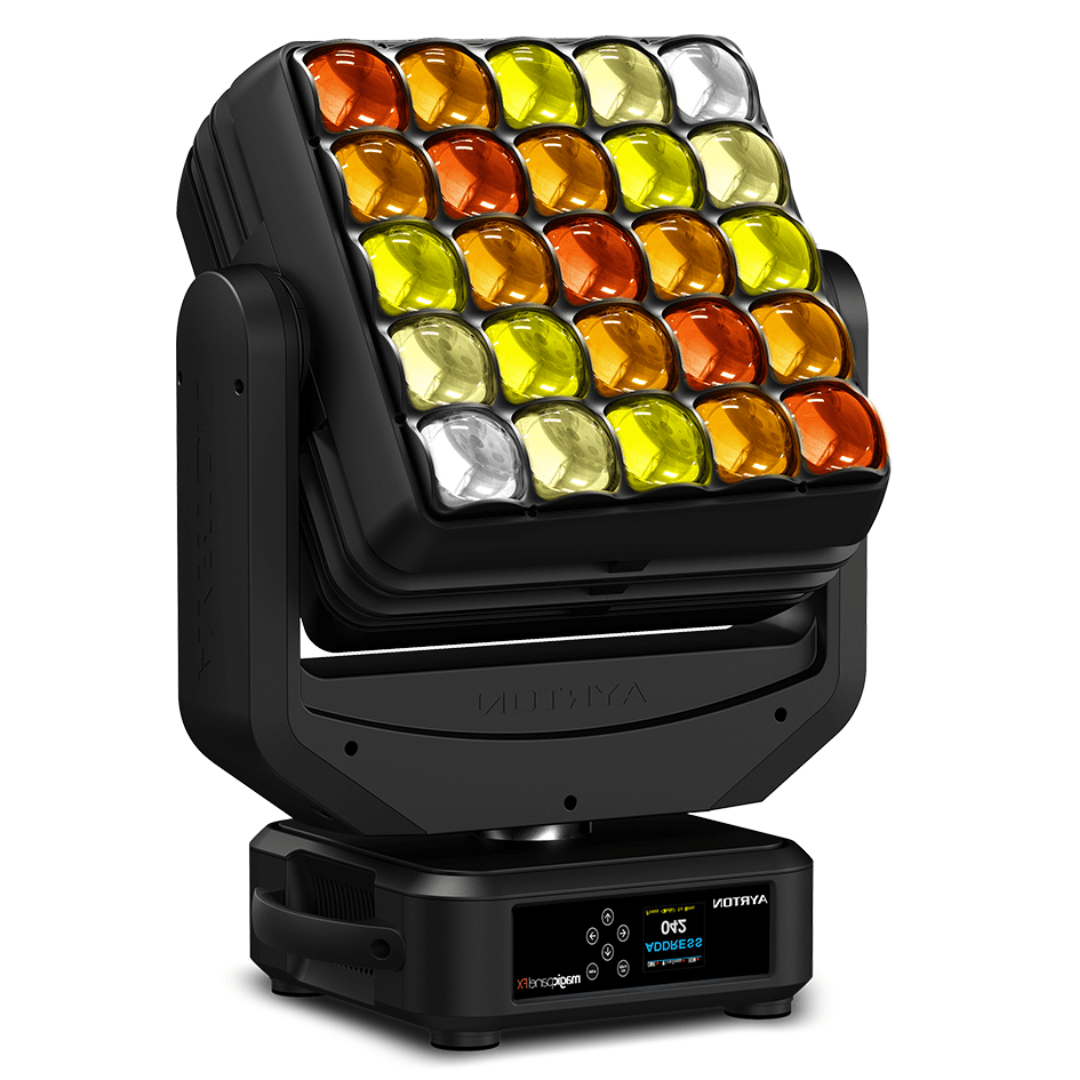

MagicPanel FX - RGBW High-power LED Emitter

Optics

• 2-elements 15:1 zoom high-resolution optic system
• Beam aperture: 3,6° to 53°
• Fast motorised linear zoom
• 25 squared 65 mm frontal lens

Light source

• 25 x 1,000 lumens RGBW High-Power LED source
• Total luminaire output: up to 13,500 lumens
• Luminous intensity: 2,070,000 cd (narrow beam)
• Rated life (L70): up to 40,000 hours
• Flicker free sources management, suitable for TV applications and all video recorded events

Movement

• Extremely accurate positioning
• Moving-head operated via either 8- or 16-bit resolution
• High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements.
• Pan and tilt automatic repositioning
• Moving-head range: infinite pan and tilt rotation

Colours

• Sophisticated 4 colours RGBW mixed, reaching high Colour Rendering Index
• Uniform light beam with no colour shadows, and rich saturated and pastel colour-hues
• 4.29 billion colours (8 bit resolution)
• Virtual colour wheel, including most usuals white colour temperature presets
• Dynamic colour macro effect with variable speed

Effects

• 2D & 3D graphical effects capabilities
• Effects can be coupled with beam, wash or matrix applications
• Built-in pattern effects with speed and fade controls for scenic applications

Dimmer / strobe

• Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation

• White or colour strobe effect, with speed adjustment from 1 to 25 flashes per second

Housing

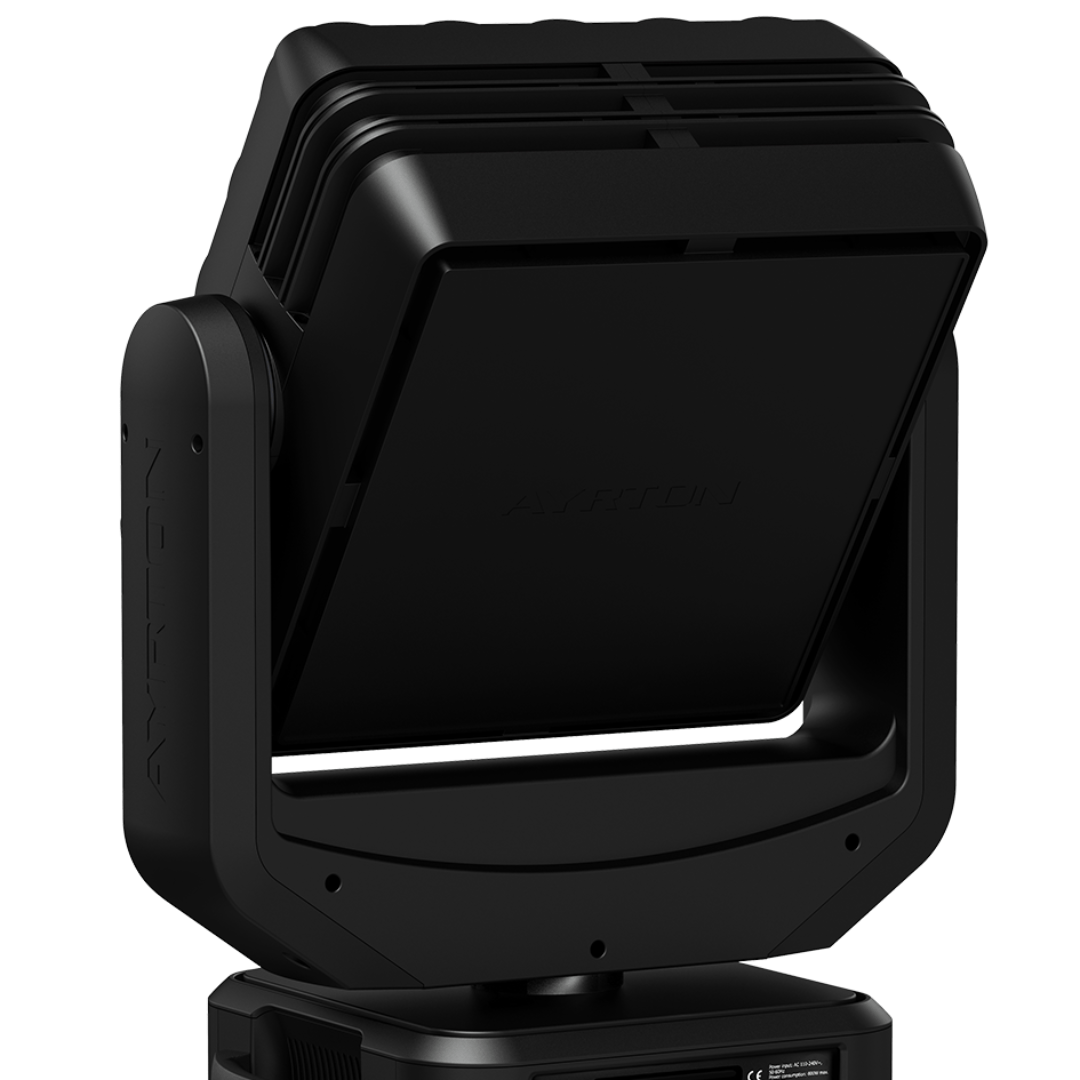

• Moving-head skeleton made of aluminium and steel metal plates
• Heatsinks in aluminium
• Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
• Two sides handles for transportation
• Four heavy-duty feet for better stability
• IP20 protection rating
• Exterior finish: black (Carbon)

Installation

• Fastening brackets system: two Omega 1/4 turn brackets designed for use with standard clamps

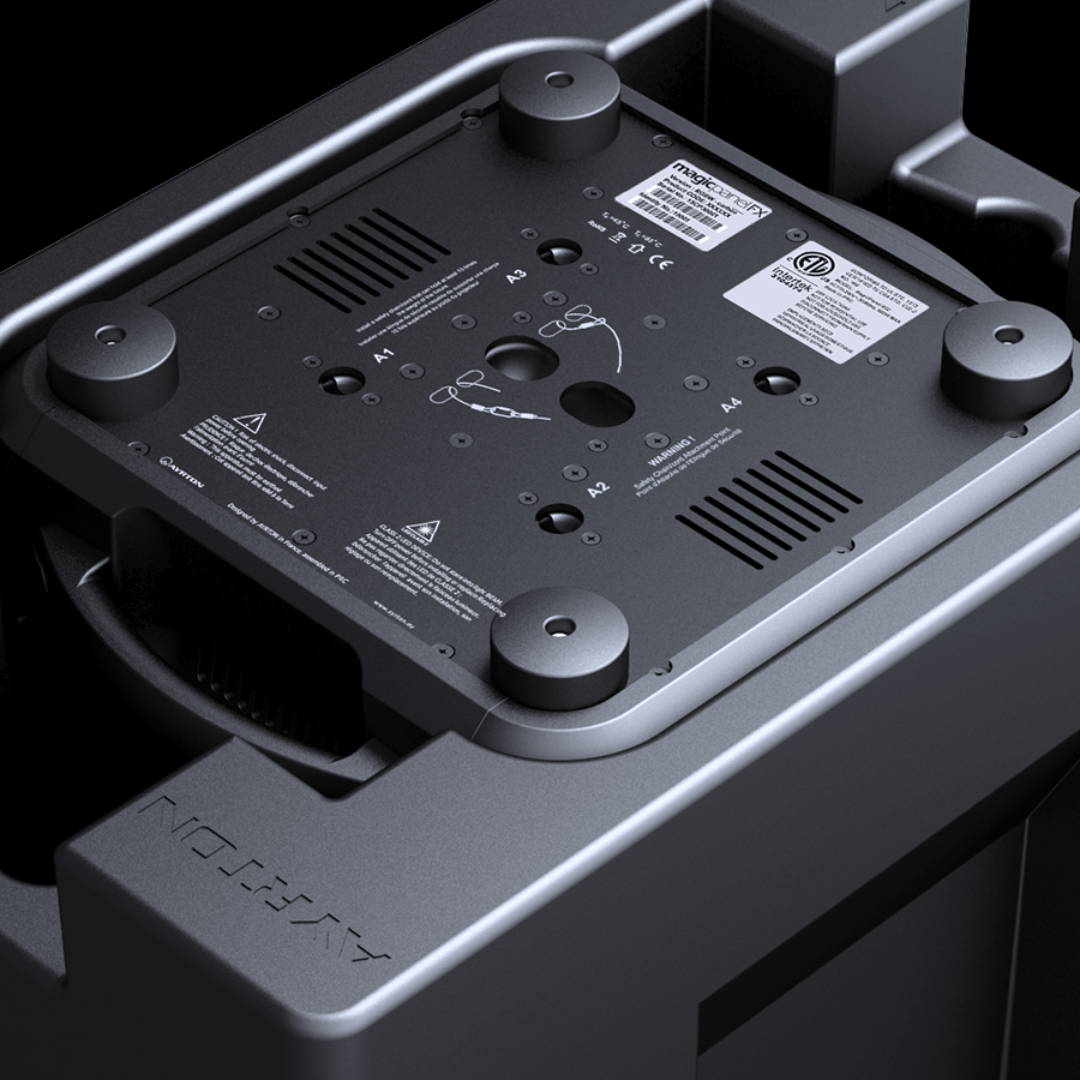

• Mounting points: four 1/4 turn locking fittings allowing installation of Omega brackets on luminaire
• Safety cable attachment point

Operating parameters

• Operating positions: all (device on floor or fixed to a support)
• Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)
• Minimum permitted ambient temperature (Ta min): -10 °C (14 °F)
•
• Minimum usage distance: 2.0 m (6.56 ft)

Compliance:

EU (EMC):

• EMC Directive 2014/30/EU

EU (LVD):

• LVD Directive 2014/35/EU

US Safety:

• UL 1573

Size

• Product: 486 x 641 x 307 mm (l x h x d)
• Flight-case foam: 569 x 672 x 367 mm (l x h x d)

Weight

• Product: 28.7 kg

Product codes

• 015670: MAGICPANEL FX – CREATIVE SOLUTION
