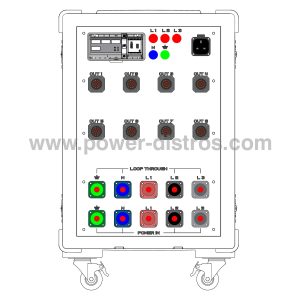

MD250-230RCD - 250A Main Distribution Box - RCD Protection

MD250 230RCD A scaled 1
MD250 230RCD A scaled 1
...

Main Distribution Box with 1 x Power Lock Set 500A Input and 250A Main MCCB Input Protection, 8 x 19 Pin Connector, 1 x 13A UK Type 240V, 1 x 2A USB and 1 x Power Lock Set 500A Through Outputs – RCD Protection

SKU: MD250-230RCD Categories: , , Brand:

Product Description

INPUT
Plugs Breakers

1 x Power Lock Set 500A Single Pole 3 Phase

1 x 250A Main MCCB
OUTPUT
Sockets Breakers

8 x 19 Pin Panel Socket

8 x 40A RCD 4P
48 x 16A MCB 1P

1 x 13A UK Type 240V 3 Pin Panel Socket

1 x 10A MCB 1P

1 x 2A USB Charger

No Breakers

Power Lock Set 500A Through Output
CASE

16U High-density Polyethylene Case 610x580x950mm
Stackable
Integrated Handles and Wheels
IP65 with lids closed
FEATURES

Digital Multimeter: 1 x Digital Multimeter measures Amps, Volts & Frequency

Pilot LED Lights: 3 x Red, 1 x Blue, 1 x Green

Protection Level: RCD

Additional Information: Made of Premium Components

Additional information

Weight 0.0 kg
Dimensions 0.0 × 0.0 × 0.0 cm

Download

Data Sheet
