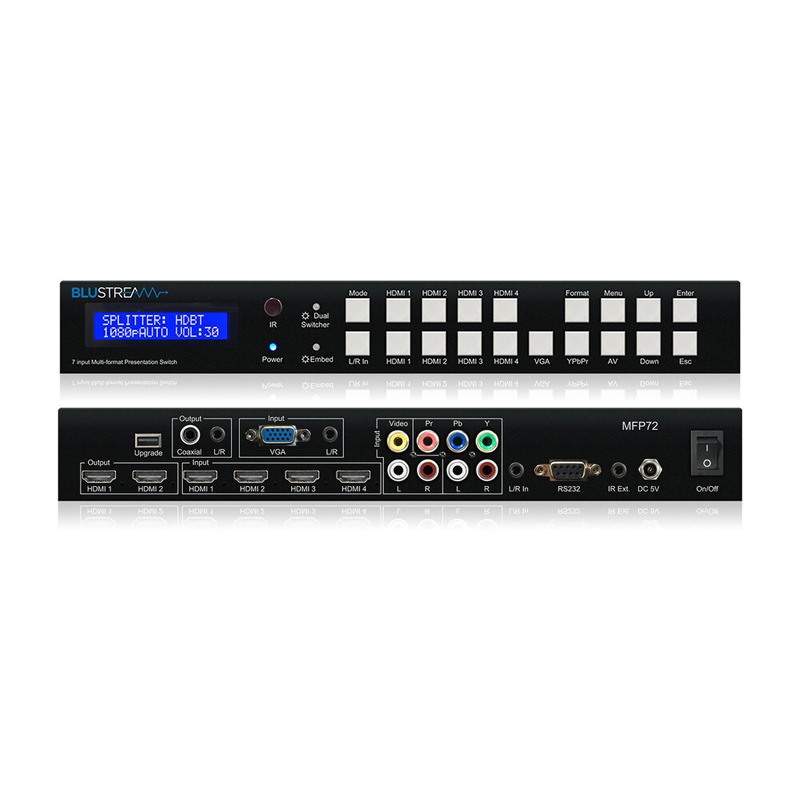

MFP72 - 7 Input Multi-Format Presentation Switch

Product Description

Key Features

• Switcher can function in 2 modes:

          – Splitter Mode – both HDMI outputs display the same image from any video input

          – Switcher Mode – HDMI output 1 and 2 are independently controlled

• HDMI output 1 can view only HDMI inputs 1-4 (up to resolutions of 4K)
• HDMI output 2 can view all HDMI and analogue video inputs with associated audio (up to 1080p resolution)
• Built-in video scaling, both up-scaling and down-scaling capabilities
• Video inputs support industry standard video resolutions including VGA-WUXGA and 480i-4K (including 800×600 @60 & 75Hz)
• Scaled video output resolutions: 720p, 1080p, 1280×1024, 1024×768, 1360×768, 1440×900, 1680×1050
• Audio embedding – independent analogue L/R audio input can be embedded to HDMI outputs & Analogue L/R audio and Coaxial digital outputs concurrently (feature available for HDMI output 1 & 2 in ‘Split mode’, ‘Switch mode’ = HDMI output 2 only).
• HDMI audio breakout to Analogue L/R audio and Coaxial digital outputs concurrently (linked to output 2 in ‘Switch mode’)
• Volume control – controls volume output of HDMI, Analogue L/R audio and Coaxial digital outputs
• Supports 3D signal display
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master audio transmission
• Supplied with Blustream IR receiver and IR link cable
• Control via front panel, IR and RS-232
• 3rd Party drivers available for all major home control brands
• HDCP 1.4 compliant

Specifications

• Video Input Connectors: 4 x HDMI Type A, 1 x VGA, 1 x Composite, 1 x YPbPr
• Video Output Connectors: 2 x HDMI Type A
• Audio Input Connectors: 2 x Analogue audio 3.5mm stereo jack, 4 x Analogue audio RCA (2 x L/R)
• Audio Output Connectors: 1 x Analogue audio 3.5mm stereo jack, 1 x S/PDIF Coaxial digital
• RS-232 Serial Port: DB-9 connector
• IR Input Ports: 1 x 3.5mm stereo jack
• Casing Dimensions (W x H x D): 323mm x 45mm x 130mm, without feet
• Dimensions Including Connections (W x H x D): 322mm x 45mm x 140mm
• Shipping Weight: 1.5kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Power Supply: 5V/2A DC

Box Contents

• 1x MFP72
• 1x 5V/2A DC Power Supply
• 1x IR Remote Control
• 1x IR Receiver
• 1x IR control Cable – 3.5mm-3.5mm Cable (IRCAB)
• 1x Mounting Kit
• 1x User Manual
