Micro F-1 lite G5- Transceiver- DMX/RDM

Micro-G5-rec

The Micro F-1 G5 is the most compact tranceiver offered by W-DMX™. Built into a slim-line casing, with mounting options for any location or practically any type of structure encountered in the entertainment and architectural lighting business, this DMX/RDM transceiver is well-suited for smaller events, film sets or anywhere space is a problem. The unit is also suitable for smaller rental applications where the distance does not need to exceed 820.2 ft (250 m), and where fewer universes need to be transmitted wirelessly in one area.

Category: Brand:

Product Description

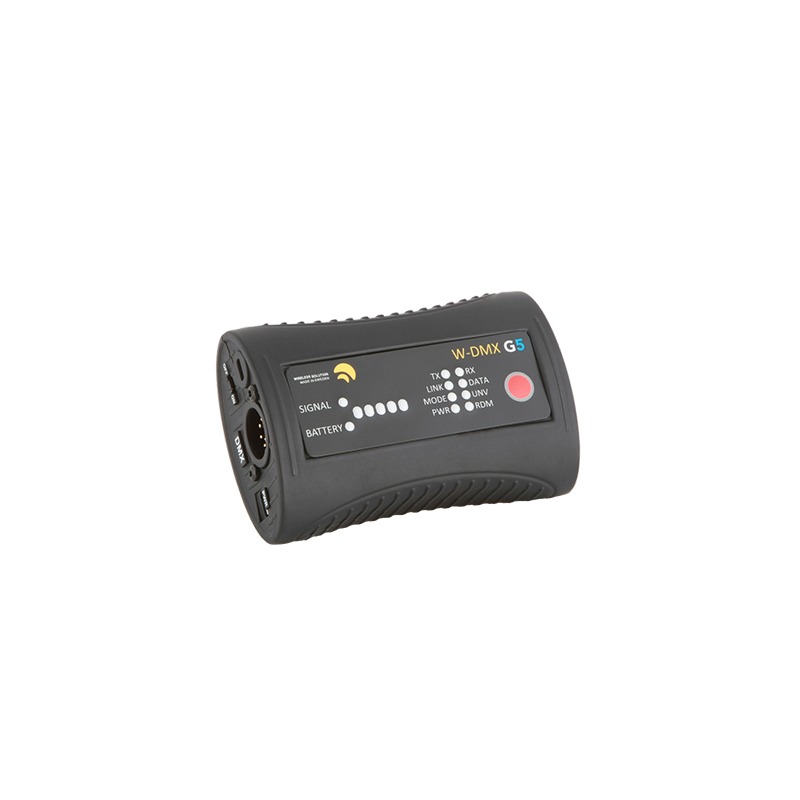

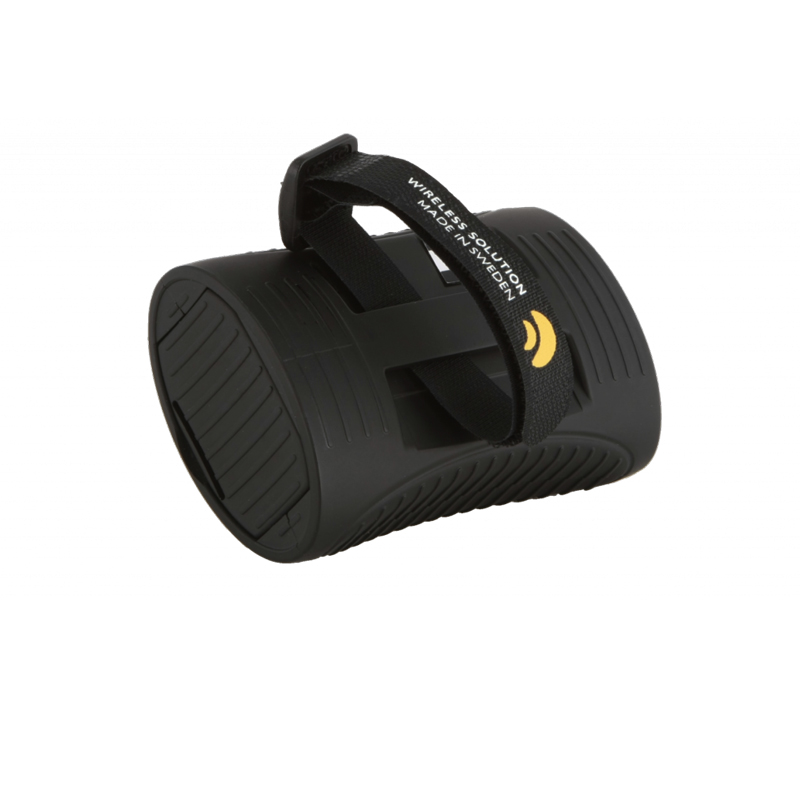

The Micro F-1 G5 is the most compact tranceiver offered by W-DMX™. Built into a slim-line casing, with mounting options for any location or practically any type of structure encountered in the entertainment and architectural lighting business, this DMX/RDM transceiver is well-suited for smaller events, film sets or anywhere space is a problem. The unit is also suitable for smaller rental applications where the distance does not need to exceed 820.2 ft (250 m), and where fewer universes need to be transmitted wirelessly in one area.

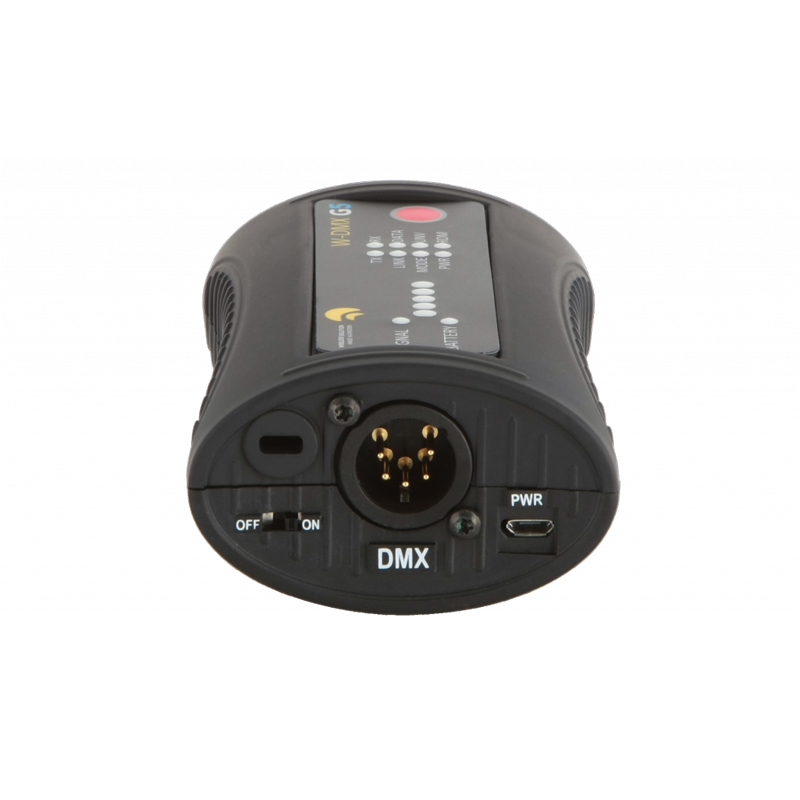

Equipped with a battery compartment that accepts four standard AAA batteries, the Micro F-1 G5 can be powered off battery power for considerable lengths of time. DMX is supported through a standard 5-pin XLR connector, and a helpful display on the front of the unit conveys useful information at a glance.

The Micro F-1 G5 is compatible with the entire W-DMX range, and with its one-button-to-go technology, setting up a W-DMX system is as simple as pushing a single red function button.

PERFORMANCE

  • Transmitter & Receiver modes
  • Up to 200 meters / 650 feet
  • 512 DMX channels

TECHNICAL SPECIFICATIONS

  • W-DMX™ G5 Protocol
  • 2.4 GHz
  • DMX & RDM
  • Adaptive Frequency Hopping
  • Data-Safe
  • 5V USB power supply
  • Backward compatible with G3 and G4S
  • Compatible with OEM products
  • 4x AAA batteries – up to 8 hours
  • Kensington security slot

Downloads

Data Sheet
