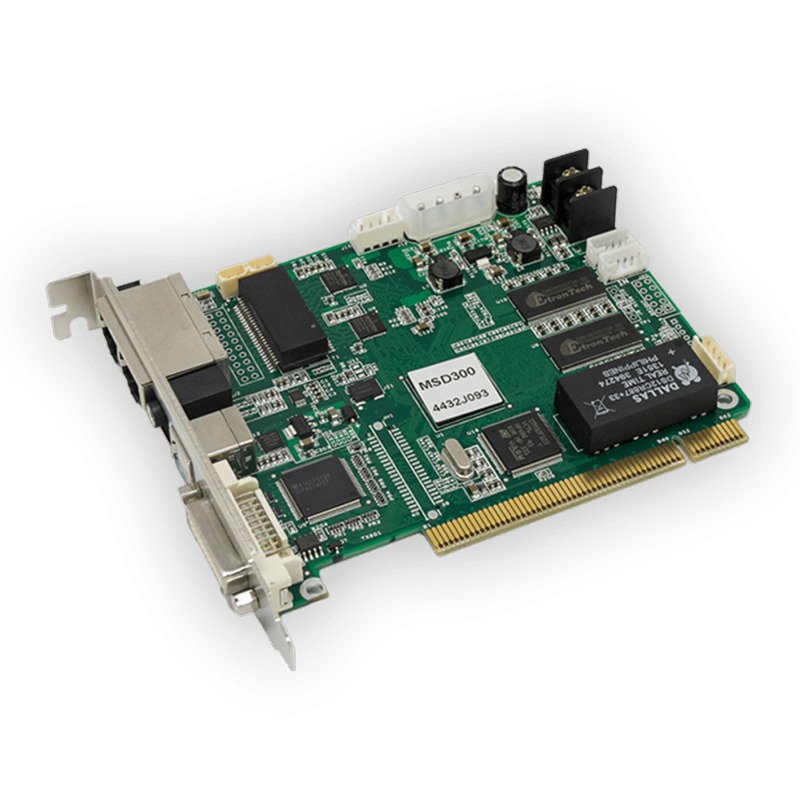

MSD300 - LED Sending Card

The MSD300 is a sending card developed by NovaStar. It supports 1x DVI input, 1x audio input, and 2x Ethernet outputs. A single MSD300 supports input resolutions up to 1920×1200@60Hz.
The MSD300 communicates with PC via type-B USB port. Multiple MSD300 units can be cascaded via UART port.
As a highly cost-effective sending card, the MSD300 can be mainly used in the rental and fixed installation applications, such as concerts, live events, security monitoring centers, Olympic Games and various sports centers.

Brand: NovaStar

Add to Quote

SKU: MSD300 Brand: PRCM

Description
Download

Product Description

DVI video input
Audio transmission
Dual-Ethernet output, with dual-Ethernet cable hot backup and multiple controller hot backup.
USB port control, for cascading and control of multiple units.

Key Features:

2 types of input connectors
− 1x SL-DVI
− 1x AUDIO
2x Gigabit Ethernet outputs
1x light sensor connector
1x type-B USB control port
2x UART control ports
They are used for device cascading. Up to 20 devices can be cascaded.
Pixel level brightness and chroma calibration
Work with NovaStar’s high-precision calibration system to calibrate the brightness and chroma of each pixel, effectively removing brightness differences and chroma differences, and enabling high brightness consistency and chroma consistency
