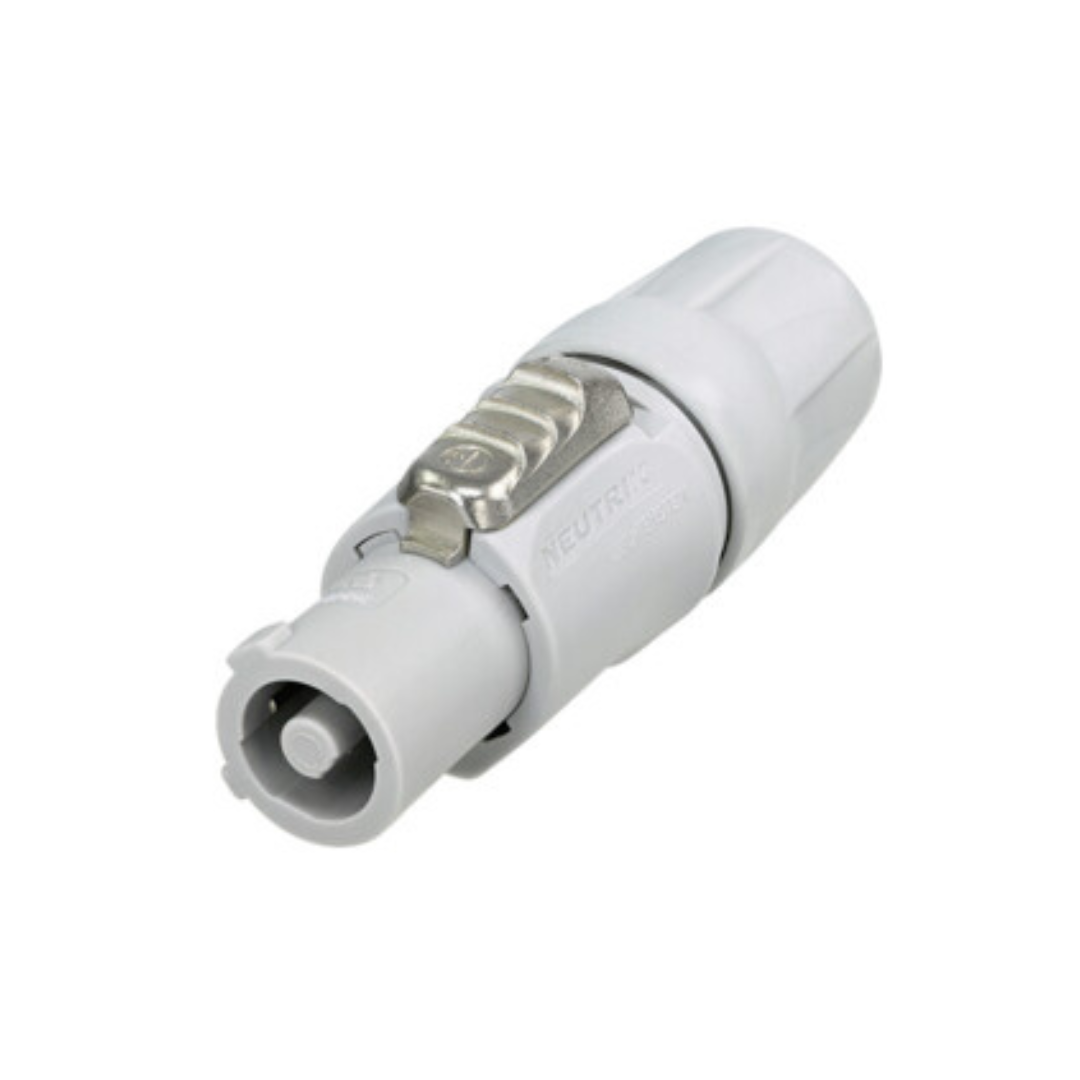

NAC3FCB - Lockable cable connector, power-out, screw terminals, grey

• Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
• Fast and easy twist lock latching system
• Extremely robust and reliable
• Ergonomic design
• Unique Neutrik chuck type strain relief
• Improved kink protection by two-component bushing
• UL, cUL recognized components
  VDE certified
• Branded with unique hologram – guarantees genuine and authentic Neutrik product

Technical Information

Product

• Gender: female

Electrical

• Contact resistance: ≤ 3 mΩ
• Dielectric strength: 4 kVdc / 2.8 kVac
• Insulation resistance: > 0.1 GΩ (after damp heat test IEC 68-2-30)
• Number of electrical contacts: 2 + PE
• Rating Europe: EN 61984:20 A 250 V AC
• Rating USA: UL 1977:20 A 250 V AC

Mechanical

• Cable O.D.: 6 – 15 mm (1)
• Lifetime: > 1000 mating cycles
• Wiresize: 2.5 mm²
• Wiresize: 12 AWG
• Locking device   Quick Lock
• (1)          Cable O.D. range limited to 6 mm – 14 mm acc. VDE

Material

• Contact plating: 4 µm Ag
• Contacts: Bronze (CuSn6)
• Insert: Polyamide (PA 6 30 % GR)
• Locking element: Zinc diecast (ZnAl4Cu1)
• Shell: Polyamide (PA 6 30 % GR)
• Strain relief: Polyacetal (POM)

Environmental

• Temperature range: -30 °C to +80 °C
• Protection class: IP20
• Flammability Rating: UL 94 HB
