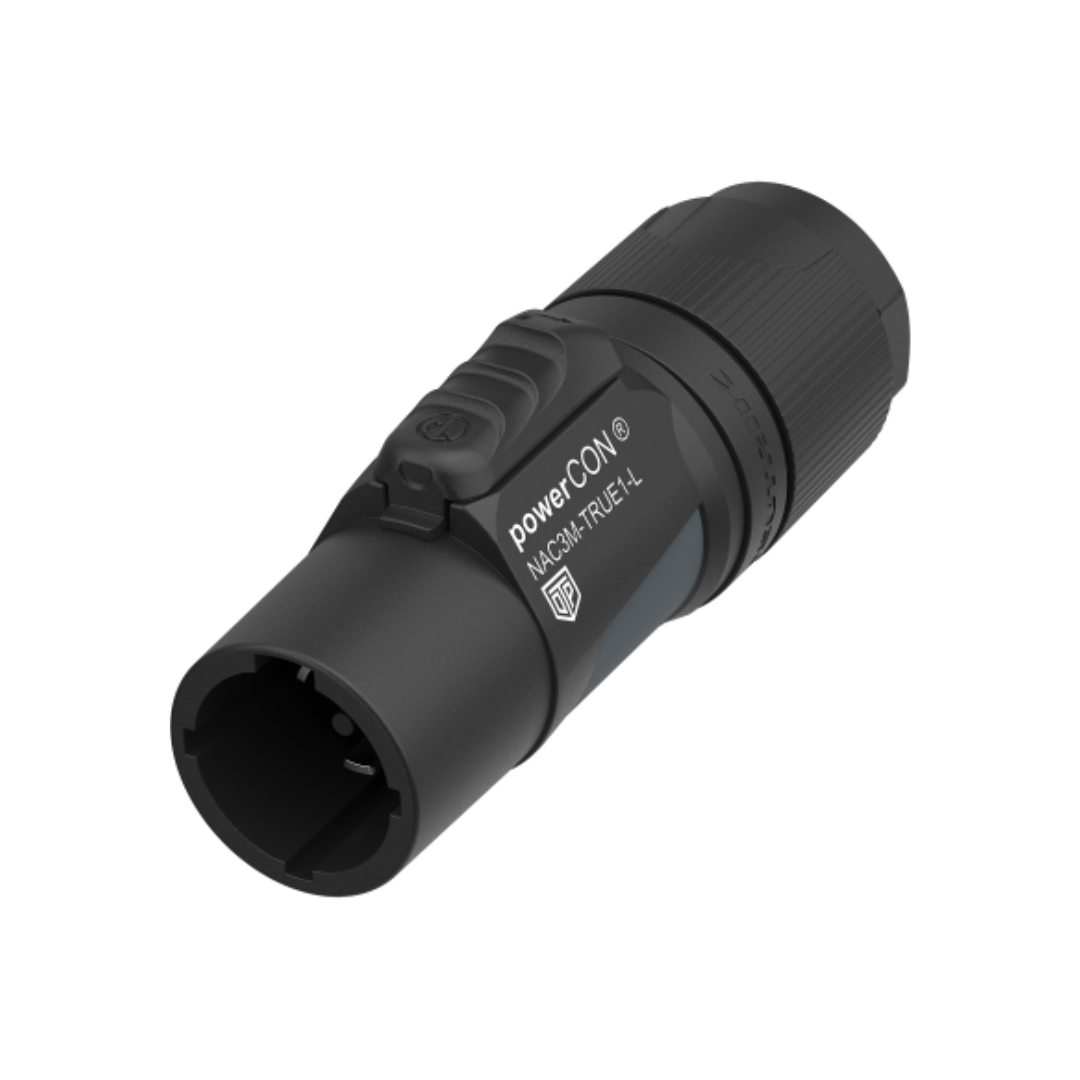

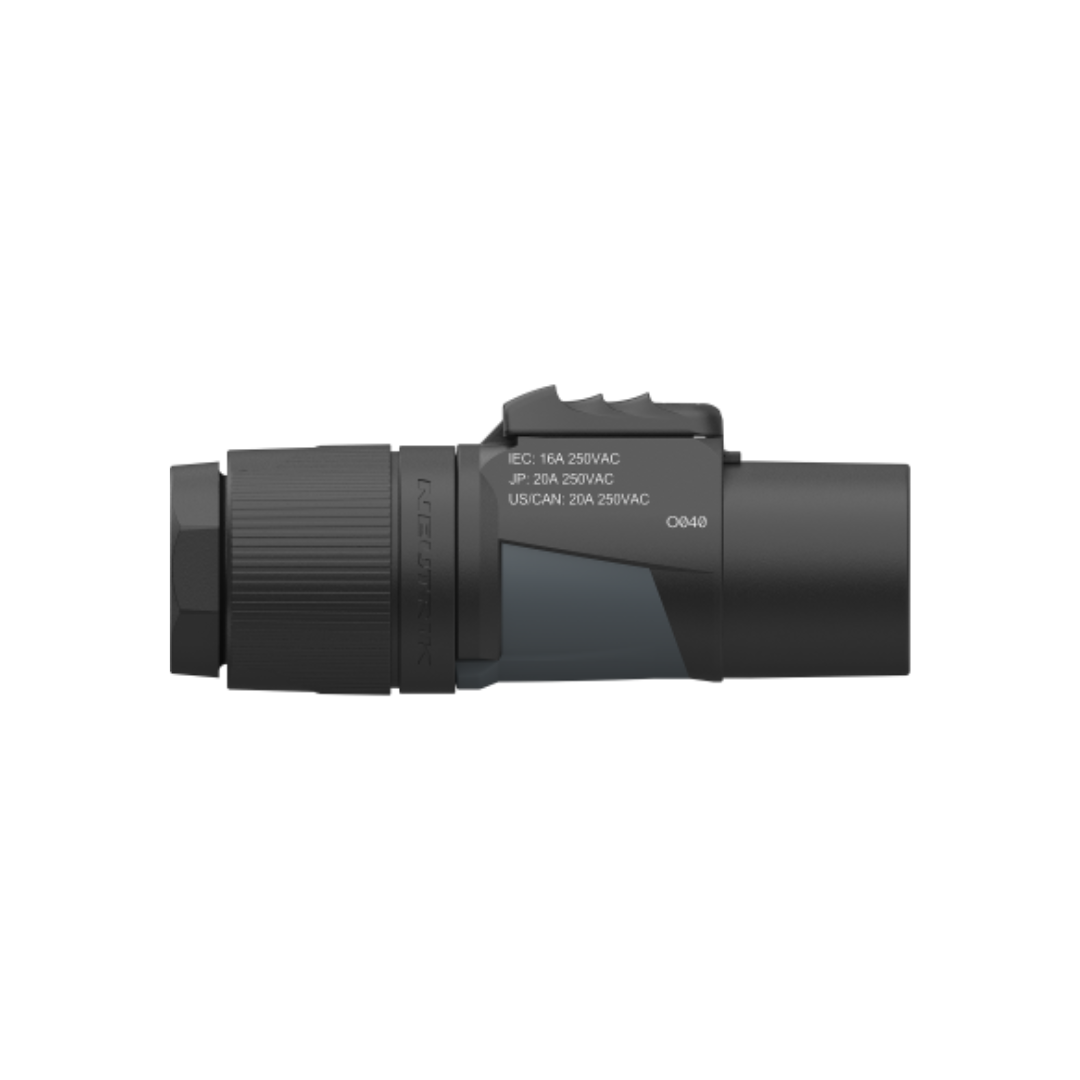

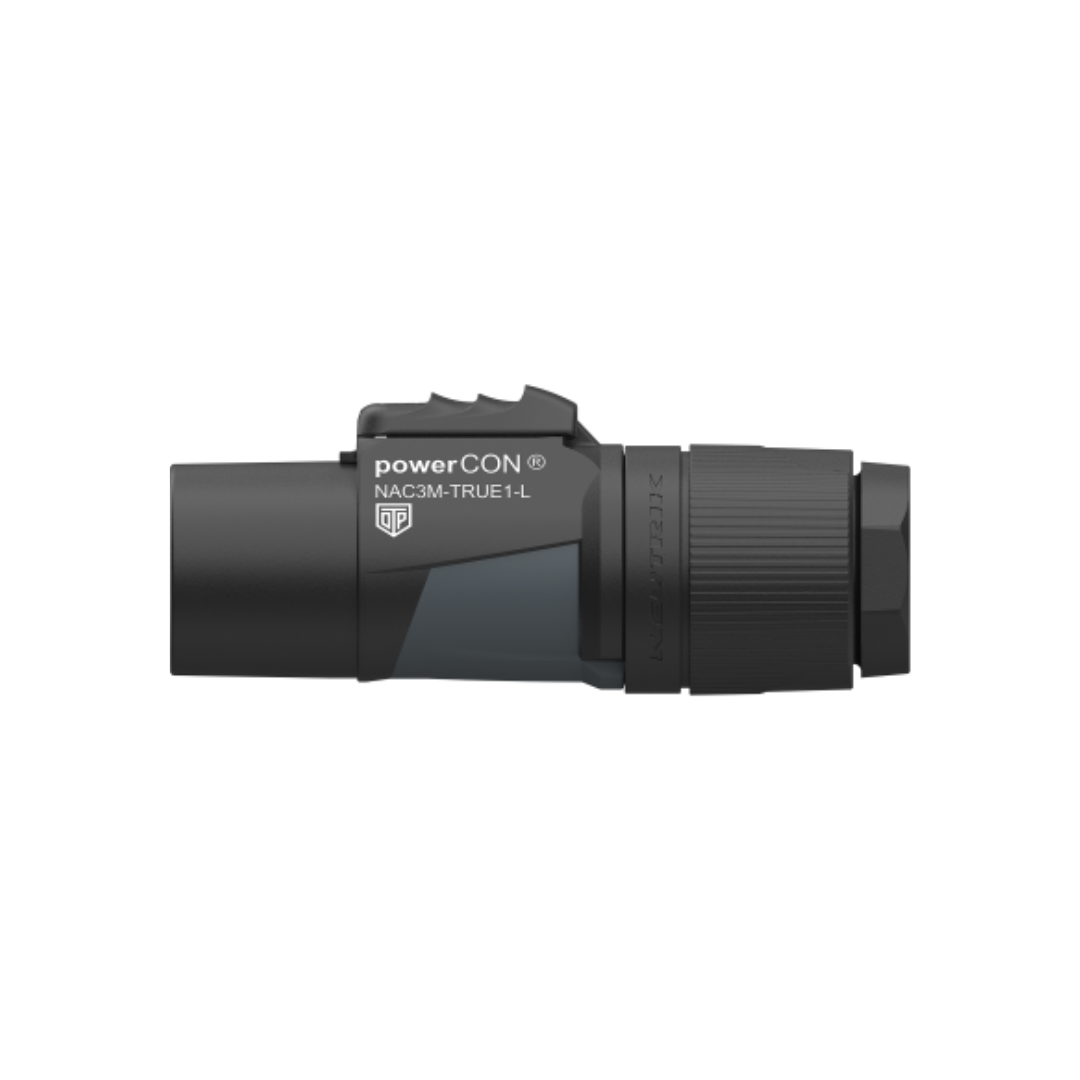

NAC3M-TRUE1-L - MAINS CABLE CON. INLET CBC TOP L

Product Description

Key Benefits:

• Heavy duty sealed power connector for harsh and demanding environment
• Uses high impact UV-resistant materials
• Lockable single phase connector
• Extremely robust and reliable
• ENEC and VDE certified according to IEC 60320-1 and EN IEC 60320-1
• UL and CSA Certified According to UL 60320-1 and CSA 22.2 No. 60320-1
• UL Certified According to UL 498
• IP65 and IP67 (mated or with closed cap)
• True mains connector with breaking capacity (CBC)
• Easy and reliable twist lock system

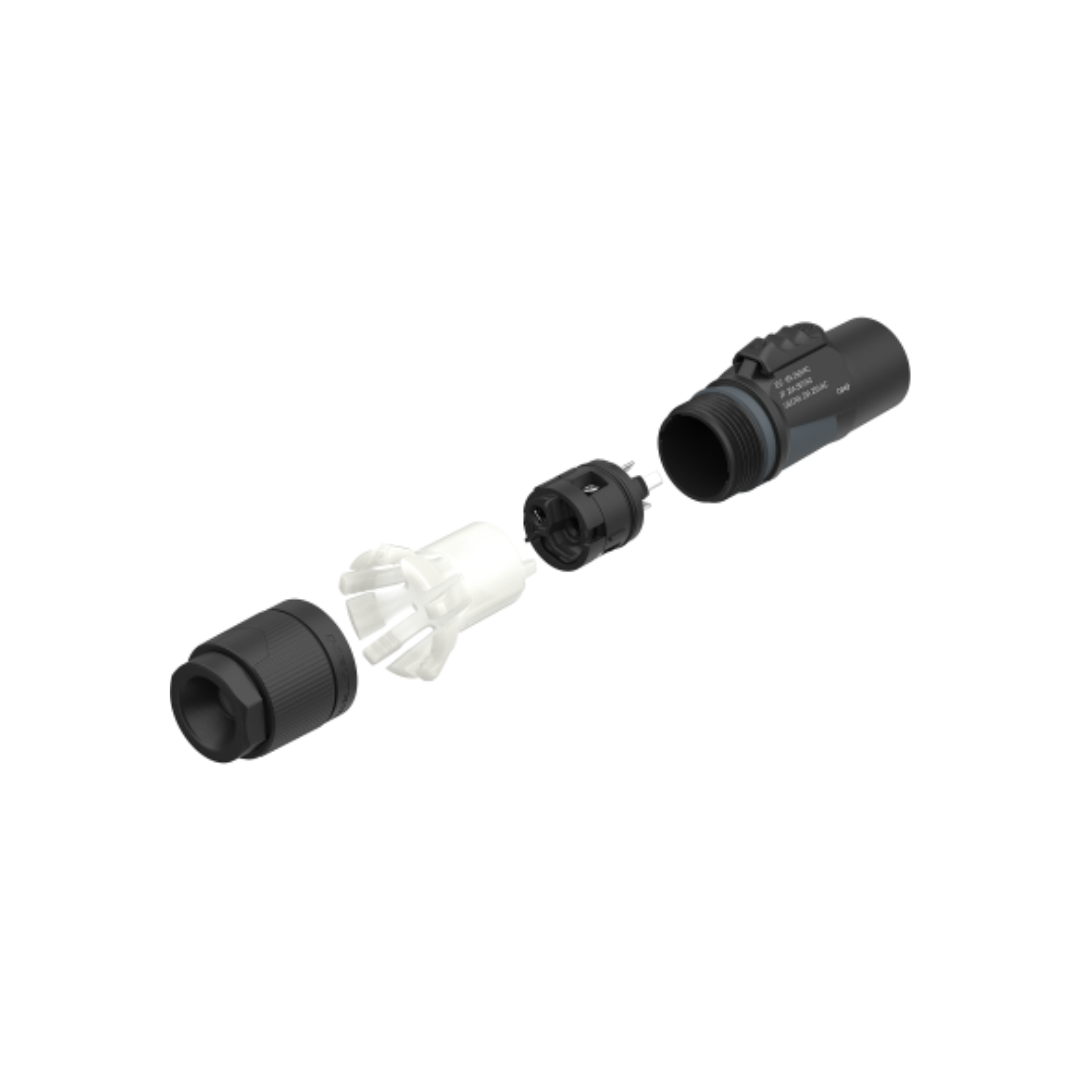

• Unique NEUTRIK locking bushing and strain relief for cable diameters 10 mm to 16 mm

Technical Specifications:

Electrical

• Contact resistance: ≤ 2 mΩ
• Dielectric strength:  4 kVdc / 2.8 kVac
• Insulation resistance:  >0.1GΩ (after damp and heat test IEC 68-2-30)
• Number of electrical contacts:  2 + PE
• Rating Europe:  16 A / 250 V AC according to EN IEC 60320-1
• Rating America: 20 A / 250 V AC according to UL 60320-1 | 20 A / 250 V AC according to CSA C22.2 No. 60320-1 | 20A/ 250 V AC according to UL 498

Mechanical

• Cable O.D.: 10 – 16 mm (0.39 – 0.63 inches)
• Lifetime: > 5000 mating cycles
• Wiresize (mm²): 1.0 – 2.5mm²
• Wiresize (AWG): 14 – 12 AWG

Material

• Contact plating: 2 μm Ag
• Locking element: Polyamide (PA 66)
• Contacts: Copper Alloy
• Insert: Polyamide (PA 66)
• Shell: Polyamide (PA 66
• Strain relief: Polyketon

Environmental

• Flammability: UL 94 V-0
• Protection class: IP 65 / 67 (mated or with closed caps)
• UV resistance: F1 rated material withstands UV exposure
• Temperature range: -30°C to +80°C according to IEC 61984 | -5°C to +40°C according to IEC 60320-1
