NC3FD-LX-B

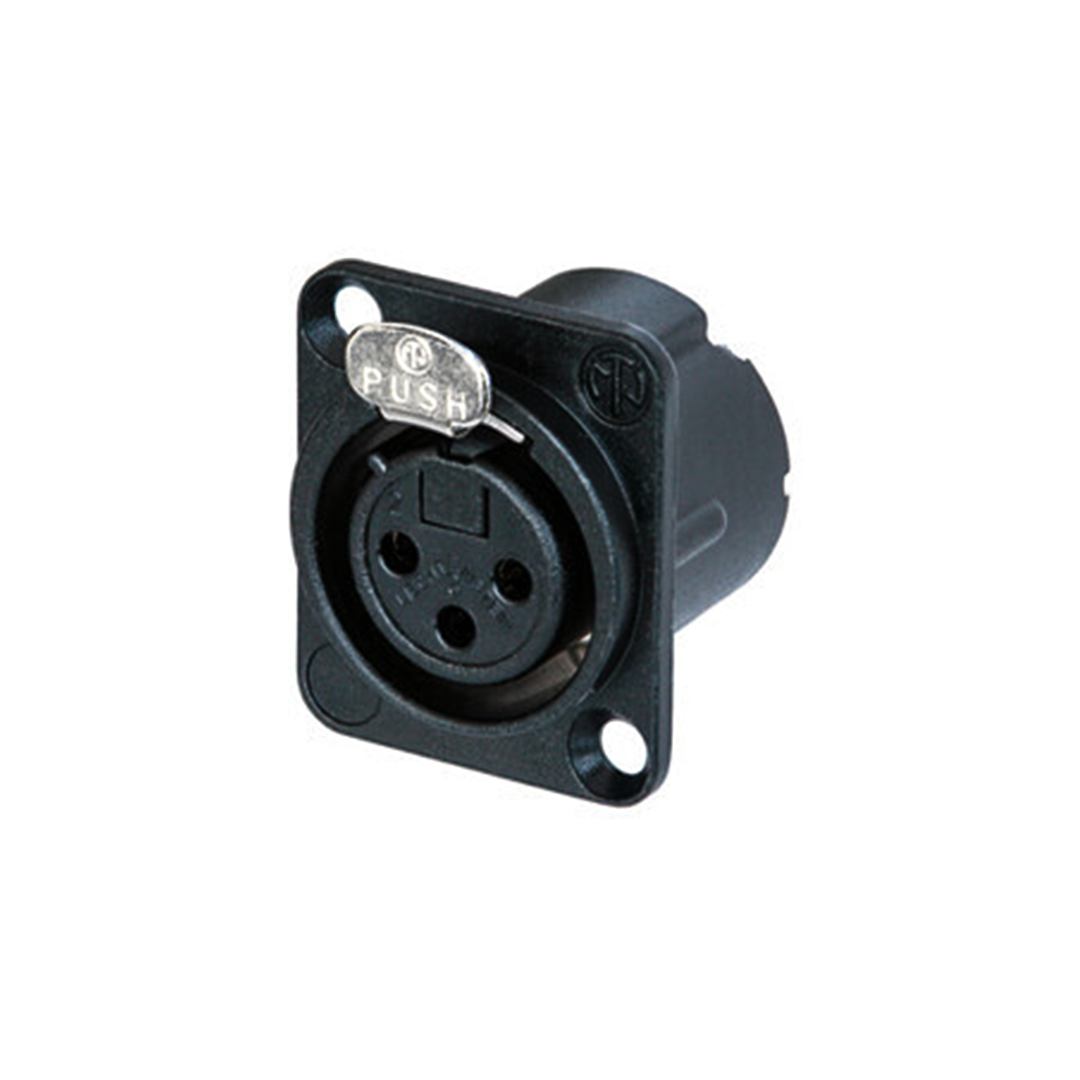

3 pole female receptacle, solder cups, black metal housing, gold contacts

The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with Neutrik’s EMC XLR cable connector.

Add to Quote

SKU: NC3FD-LX-B Categories: Connectors, Power Connector Brand: Neutrik

Description
Downloads

Product Description

Technical Specifications

Electrical

Capacitance between contacts: ≤ 4 pF
Contact resistance: ≤ 5 mΩ
Dielectric strength: 1.5 kV DC
Insulation resistance: > 10 GΩ (initial)
Rated current per contact: 16 A
Rated voltage: < 50 V

Mechanical

Insertion force: ≤ 20 N
Withdrawal force: ≤ 20 N
Lifetime: > 1000 mating cycles
Wire size: max. 2.5 mm² / 14 AWG
Wiring type: Solder contacts
Locking device: Latch lock
Chassis shape: D

Materials

Contacts: Bronze (CuSn6)
Contact plating: 2 µm Au over 2 µm Ni
Insert: PA66
Locking element: Steel Ck67, Nickel plated
Shell: Zinc diecast (ZnAl4Cu1), Black KTL coating

Environmental

Flammability: UL 94 V-0
Standard compliance: IEC 61076-2-103
Protection class: IP 40
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +80 °C

Product

Model: NC3FD-LX-B
Connection type: XLR
Gender: Female
