NC3FRX

NC3FRX

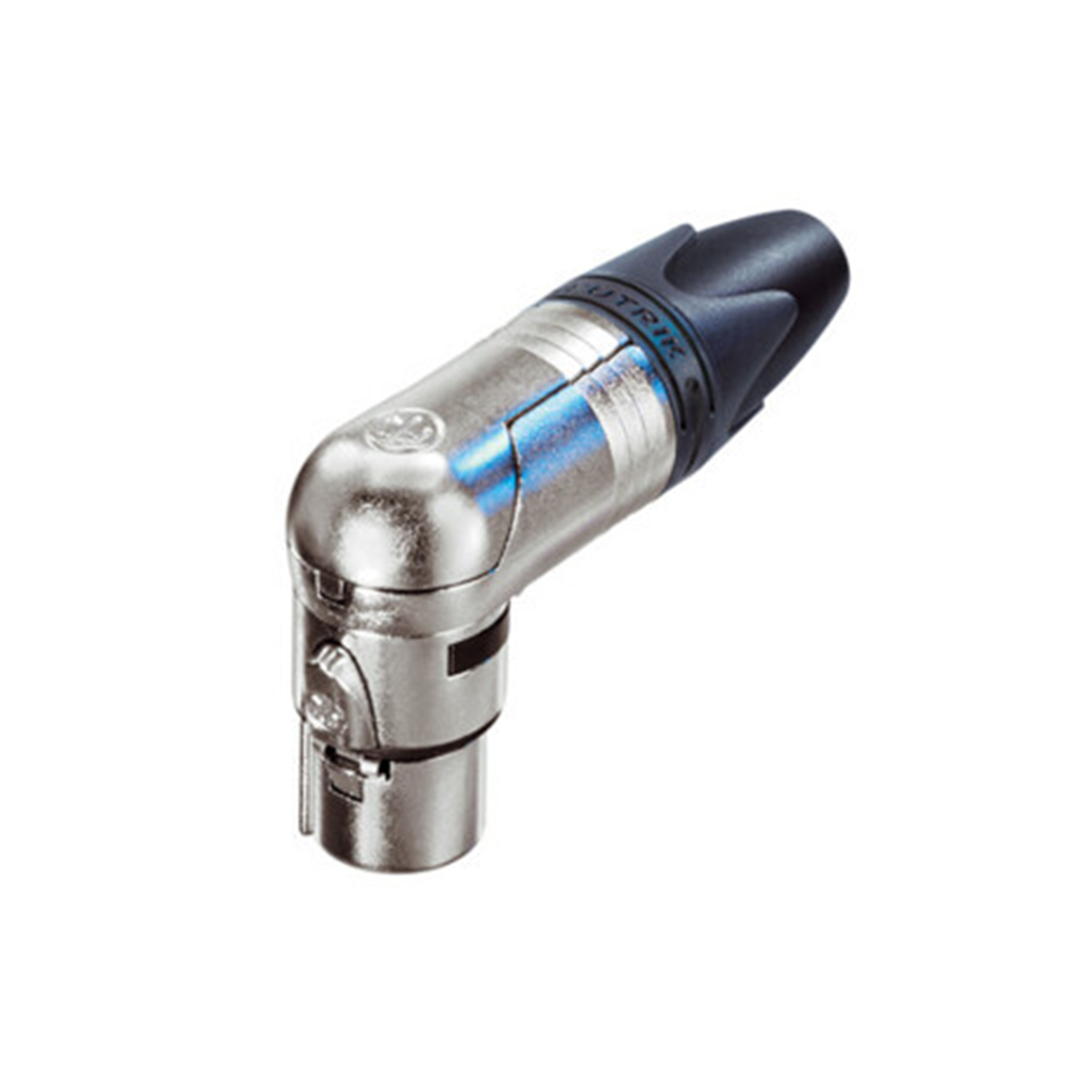

3 pole right angle female cable connector, nickel housing, silver contacts

The RX Series is the right angle version of the XX cable connector series. The successor of the RC series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

SKU: NC3FRX Categories: Cables, Connectors, Panel-mount Connectors, Power Connector, XLR Brand: Neutrik

Description
Downloads

Product Description

Technical Information

Product

Title: NC3FRX
Connection Type: XLR
Gender: Female

Electrical

Capacitance between contacts: ≤ 4 pF
Contact resistance: ≤ 3 mΩ
Dielectric strength: 1.5 kV DC
Insulation resistance: > 2 GΩ (initial)
Rated current per contact: 16 A
Rated voltage: < 50 V

Mechanical

Cable O.D.: 3.5 – 8.0 mm
Insertion force: ≤ 20 N
Withdrawal force: ≤ 20 N
Lifetime: > 1000 mating cycles
Wire size: max. 2.5 mm²
Wire size: max. 14 AWG
Wiring: Solder contacts

Material

Boot: Polyurethane
Contact plating: 2 µm Ag
Contacts: Bronze (CuSn8)
Insert: Polyamide (PA66)
Locking element: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
Locking element plating: Nickel
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Nickel
Strain relief: Polyacetal (POM)

Environmental

Flammability: UL 94 V-0
Standard compliance: IEC 61076-2-103
Protection class: IP40
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +80 °C
