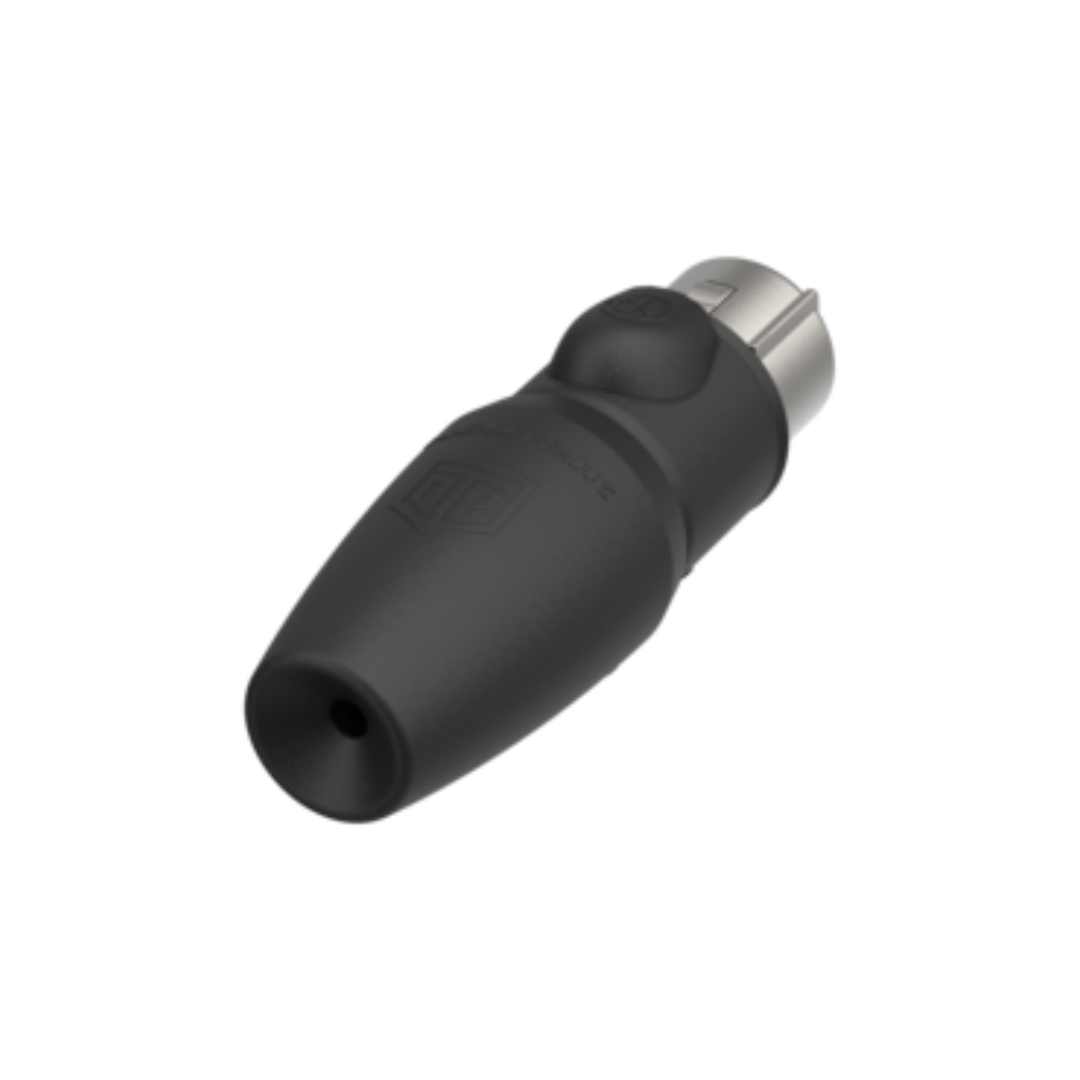

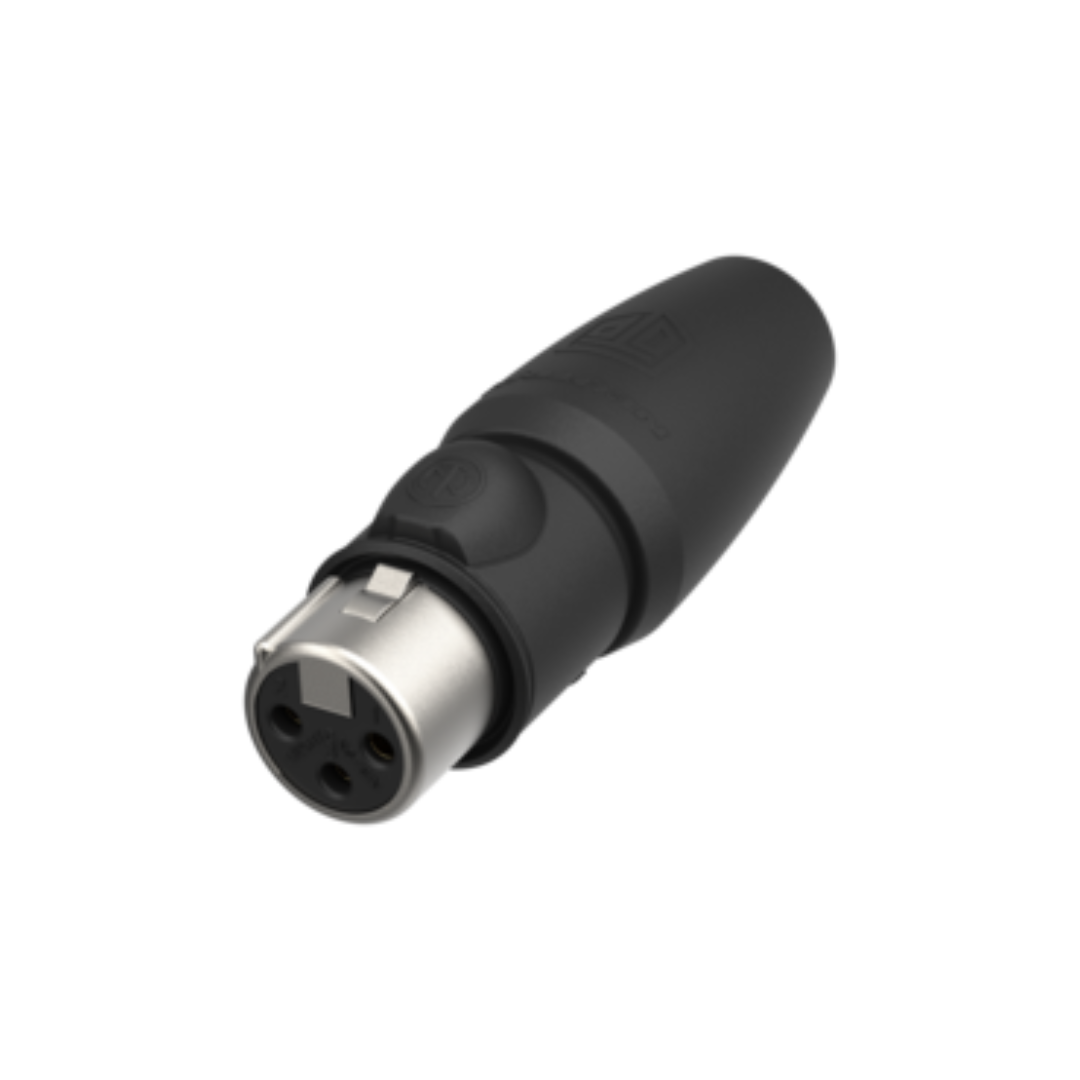

NC3FX1-TOP - CABLE CON. FEM. 3POLE TOP

Product Description

Key Benefits:

• Heavy-duty sealed XLR connector range for harsh and demanding environment
• Outdoor protection according to IP65
• Uses high impact UV-resistant materials
• TOP – True Outdoor Protection in consideration of UL50E

Technical Specifications:

Electrical

• Capacitance between contacts: ≤ 4 pF
• Contact resistance: ≤ 3 mΩ
• Dielectric strength: 1,5 kVdc
• Insulation resistance: > 10 GΩ (initial)
• Rated current per contact: 16 A
• Rated voltage: < 50 V

Mechanical

• Cable O.D. 5.0 – 8.0 mm
• Insertion force ≤ 20 N
• Withdrawal force ≤ 20 N
• Lifetime > 5000 mating cycles
• Wiresize (mm²) max. 1.5 mm²
• Wiresize (AWG) max. 16 AWG
• Wiring Solder contacts
• Locking device: Latch lock

Material

• Bushing: UV-resistant rubber
• Contact plating: Gold (Au) over Nickel (Ni)
• Contacts: Bronze (CuSn8)
• Insert: Polyamide (PA66)
• Locking element: St3K32 (latch) / Ck 67 (spring)
• Shell: Zinc diecast (ZnAI4Cu1)
• Shell plating: Nickel
• Strain relief: Polyacetal
• Sealing jacket: UV-resistant rubber

Environmental

• Flammability acc. to UL94: V0 (insert)
• Standard compliance: IEC 61076-2-103
• Protection class acc. to OEC 60529: IP 65 (mated)
• Solderability standard: IEC 60068-2-20
• Temperature range: -30 °C to +80 °C
• Polltion degree acc. to IEC 60664-1:  II
