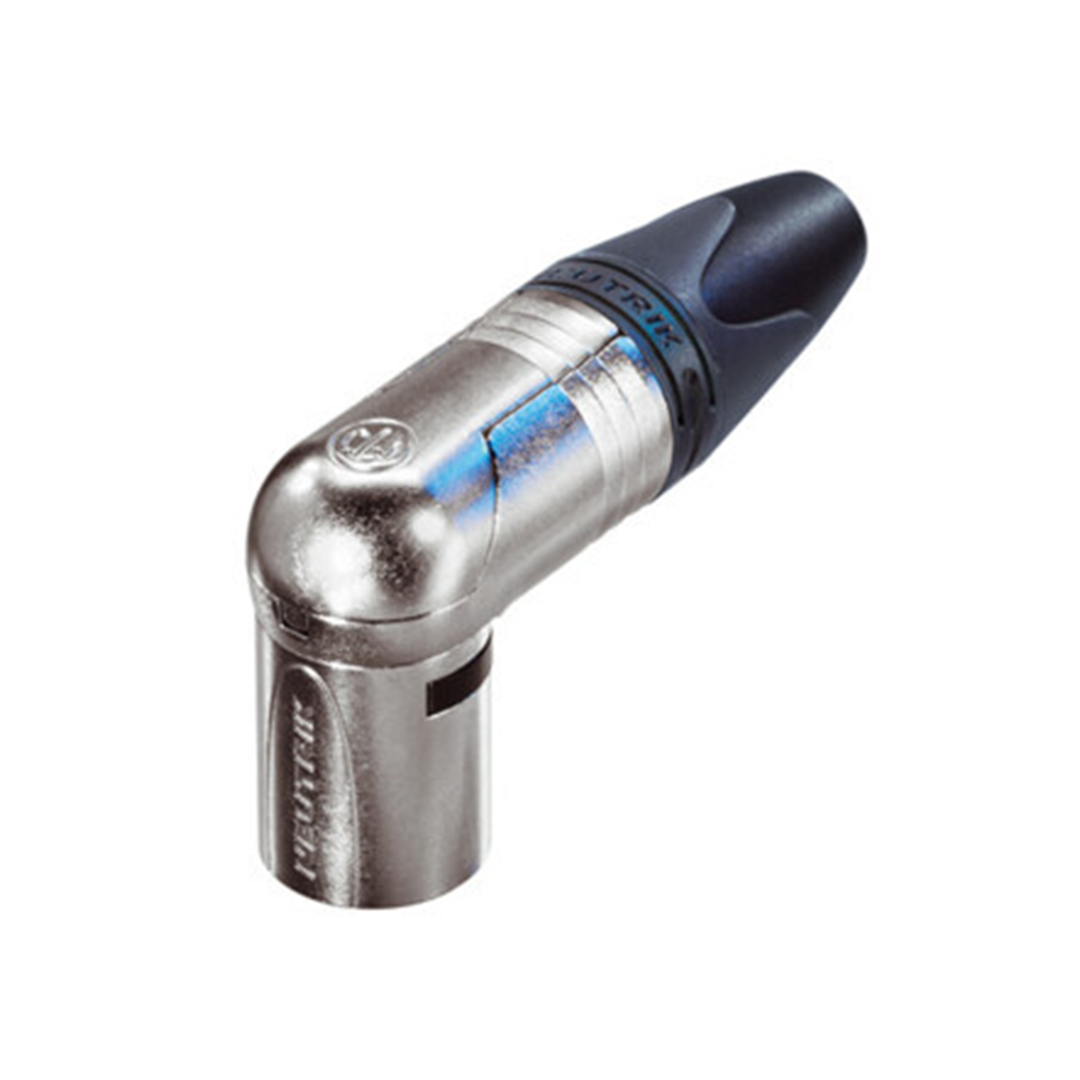

NC3MRX- NC3MRX 90 DEGREE CABLE CON. MALE 3POLE

Product Description

Technical Specifications

Product Details

• Title: NC3MRX
• Connection Type: XLR
• Gender: Male

Electrical

• Capacitance between contacts: ≤ 4 pF
• Contact resistance: ≤ 3 mΩ
• Dielectric strength: 1.5 kVdc
• Insulation resistance: > 2 GΩ (initial)
• Rated current per contact: 16 A
• Rated voltage: < 50 V

Mechanical

• Cable O.D.: 3.5 – 8.0 mm
• Insertion force: ≤ 20 N
• Withdrawal force: ≤ 20 N
• Lifetime: > 1000 mating cycles
• Wire size: max. 2.5 mm² / max. 14 AWG
• Wiring: Solder contacts
• Locking device: Latch lock

Material

• Boot: Polyurethane
• Contact plating: 2 µm Ag
• Contacts: Bronze (CuSn8)
• Insert: Polyamide (PA66)
• Locking element: Zinc diecast (ZnAl4Cu1)
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Nickel
• Strain relief: Polyacetal (POM)

Environmental

• Flammability: UL 94 V-0
• Standard compliance: IEC 61076-2-103
• Protection class: IP40
• Solderability: Complies with IEC 68-2-20
• Temperature range: -30 °C to +80 °C
