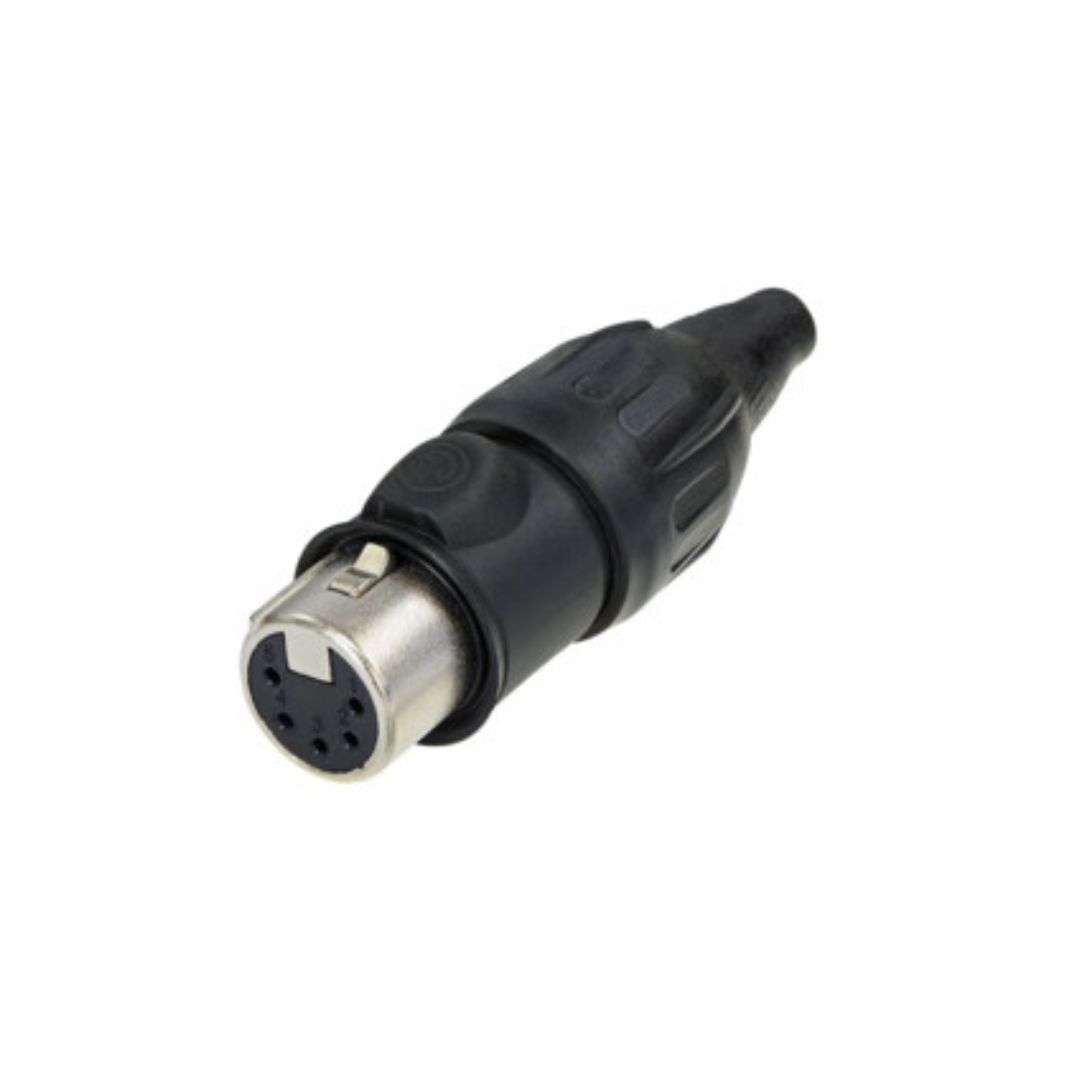

NC5FX-TOP - XLR cable connector female 5-pole, gold contacts - TOP Series

• Heavy-duty sealed XLR connector range for harsh and demanding environment
• IP65 rated and TOP approved in consideration to UL50E by mating with related cable or chassis connector of the XLR TOP range
• Uses high impact UV-resistant materials

Technical Information

Product

• Connection Type: XLR
• Gender: female

Electrical

• Capacitance between contacts: ≤ 4 pF
• Contact resistance: ≤ 3 mΩ
• Dielectric strength: 1.5 kVdc
• Insulation resistance: > 10 GΩ (initial)
• Rated current per contact: 16 A
• Rated voltage :< 50 V

Mechanical

• Cable O.D.: 5.0 – 8.0 mm
• Insertion force:  ≤ 20 N
• Withdrawal force: ≤ 20 N
• Lifetime: > 1000 mating cycles
• Wiresize: max. 1.0 mm²
• Wiresize: max. 18 AWG
• Wiring: Solder contacts
• Locking device: Latch lock

Material

• Bushing: UV-resistant rubber
• Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
• Contacts: Brass (CuZn39Pb3)
• Insert: Polyamide (PA 6.6 30 % GR)
• Locking element: St3K32 (latch) / Ck 67 (spring)
• Shell: Zinc diecast (ZnAI4Cu1)
• Shell plating: Nickel
• Strain relief: Polyacetal (POM)
• Sealing jacket: UV-resistant rubber

Environmental

• Approvals: UL
• Flammability: UL 94 HB
• Standard compliance: IEC 61076-2-103
• Protection class: IP65
• Solderability: Complies with IEC 68-2-20
• Temperature range: -30 °C to +80 °C
