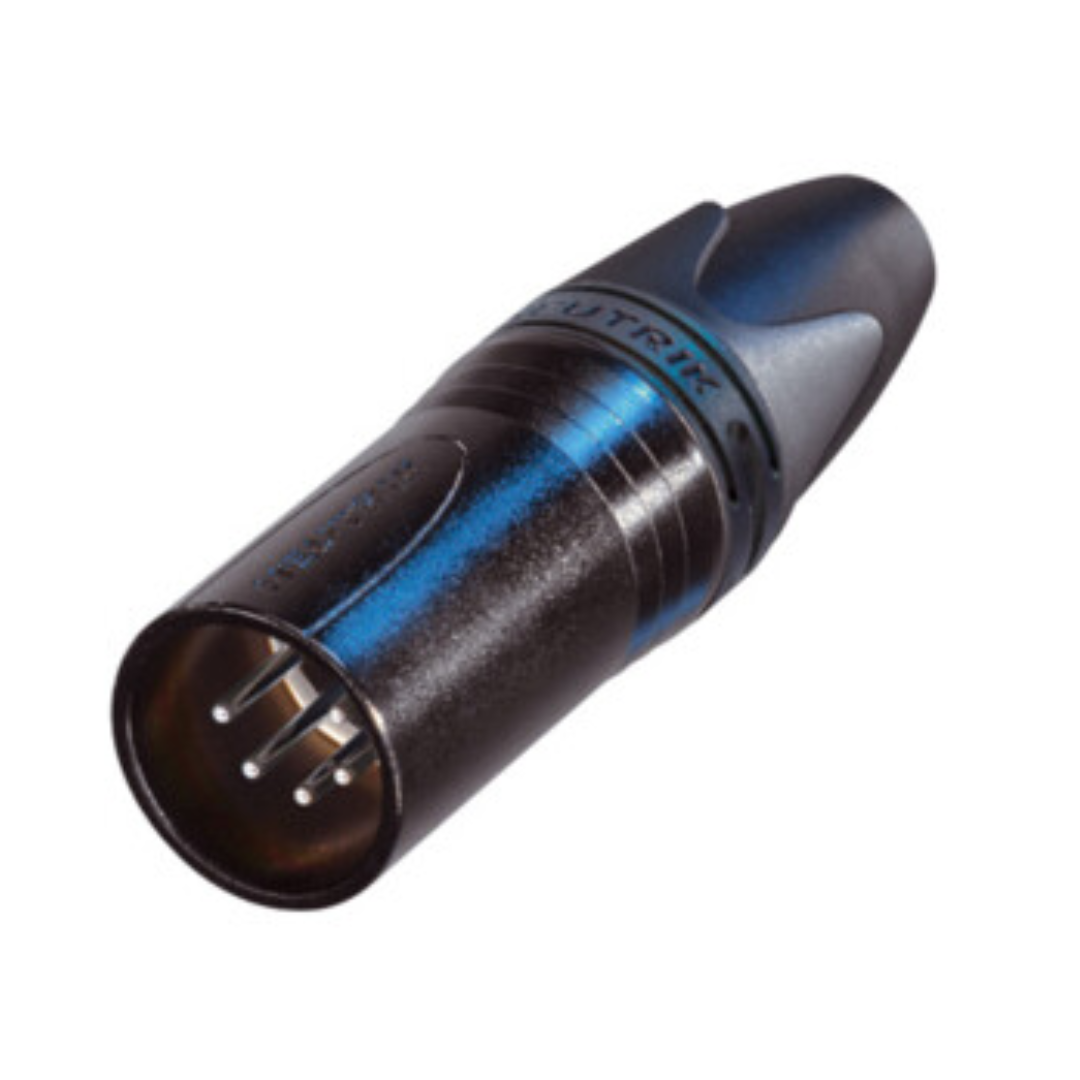

NC5MXX-BAG - CABLE CON. MALE 5POLE BAG

Product Description

Key Benefits

• Male connector with improved locking recess without “window”, more stringent housing increases durability
• Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
• Boot with polyurethane gland gives high protection to cable bending stresses
• Colored rings and boots available for coding or identification
• Sleek and ergonomic design – valuable and handy
• Rugged zinc diecast shell, long-lasting and dependable
• Internal thread on shell is well protected against any damage

Technical Information

Product

• Connection Type: XLR
• Gender: Male

Electrical

• Capacitance between contacts: ≤ 7 pF
• Contact resistance: ≤ 3 mΩ
• Dielectric strength: 1.5 kVdc
• Insulation resistance: > 10 GΩ (initial)
• Rated current per contact: 7.5 A
• Rated voltage: < 50 V

Mechanical

• Cable O.D.: 3.5 – 8.0 mm
• Insertion force: ≤ 20 N
• Withdrawal force: ≤ 20 N
• Lifetime: > 1000 mating cycles
• Wiresize: Max. 1.0 mm²
• Wiresize: Max. 18 AWG
• Wiring:  Solder contacts
• Locking device: Latch lock

Material

• Boot: Polyurethan
• Contact: Plating 2 µm Ag over 2 µm Ni
• Contacts: Brass (CuZn39Pb3)
• Insert: Polyamide (PA 66)
• Locking element: Zinc diecast (ZnAl4Cu1)
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell coating: Black KTL

Environmental

• Flammability: UL 94 V-0
• Standard compliance: IEC 61076-2-103
• Protection class: IP 40
• Solderability: Complies with IEC 68-2-20
• Temperature range: -30 °C to +80 °C
