NC7MXX

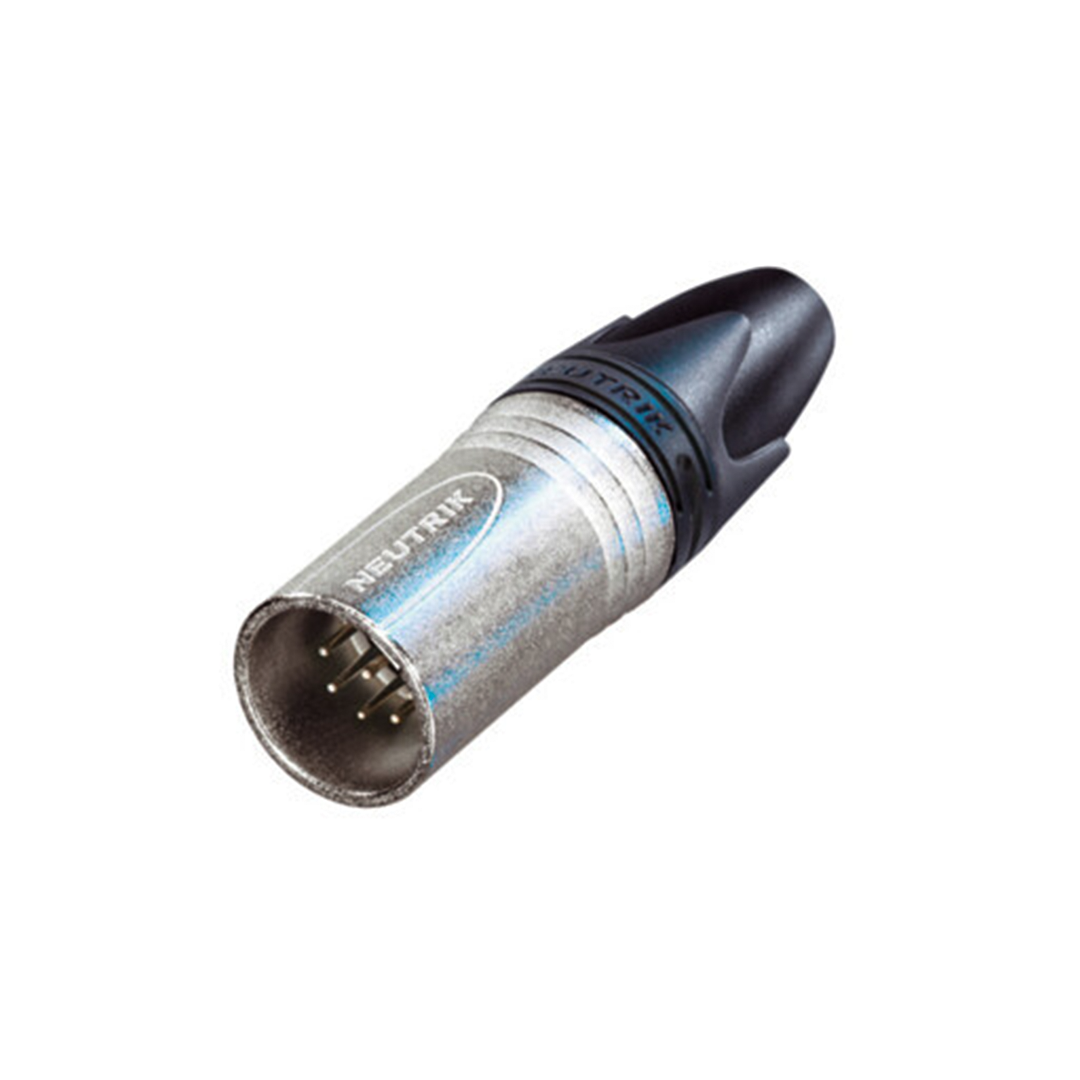

7 pole male cable connector, Nickel housing and silver contacts.

The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

Add to Quote

Categories: Cables & Connectors, Connectors, Panel-mount Connectors, Power Connector, XLR Brand: Neutrik

Description
Downloads

Product Description

Technical Information

Product

Title: NC7MXX
Connection Type: XLR
Gender: Male

Electrical

Capacitance between contacts: ≤ 9 pF
Contact resistance: ≤ 3 mΩ
Dielectric strength: 1.5 kV DC
Insulation resistance: > 10 GΩ (initial)
Rated current per contact: 5 A
Rated voltage: < 50 V

Mechanical

Cable O.D.: 3.5 – 8.0 mm
Insertion force: ≤ 20 N
Withdrawal force: ≤ 20 N
Lifetime: > 1000 mating cycles
Wire size: max. 1.0 mm²
Wire size: max. 18 AWG
Wiring: Solder contacts
Locking device: Latch lock

Material

Boot: Polyurethane
Contact plating: 2 µm Ag over 2 µm Ni
Contacts: Brass (CuZn39Pb3)
Insert: Polyamide (PA 6.6, 30% GR)
Locking element: Zinc diecast (ZnAl4Cu1)
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Nickel
Strain relief: Polyacetal (POM)

Environmental

Flammability: UL 94 HB
Standard compliance: IEC 61076-2-103
Protection class: IP40
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +80 °C
