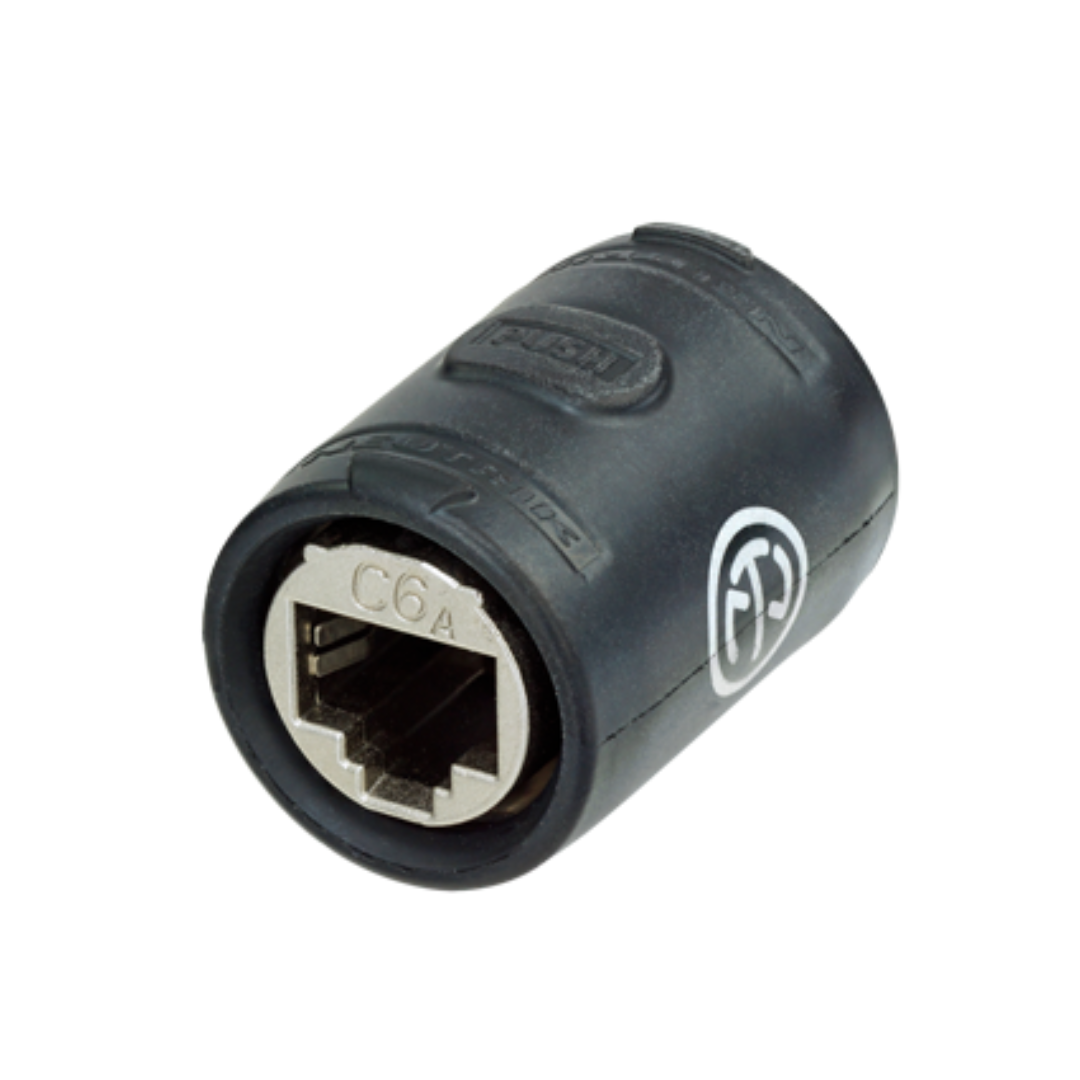

Name: Neutrik - NE8FFX6-W - Ethercon CAT6A, feedthrough coupler
Brand: Neutrik
SKU: NE8FFX6-W
Availability: InStock

Product Description

Features & Benefits

Ruggedized coupler with CAT6_A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
IP65 protected when mated with NE8MX6*
Accommodates standard RJ45 plug
Revolutionary small form factor
The adapter offers the million-fold proven robust latch lock system
The adapters are problem solvers for various intermating problems for professional and semi-professional applications

Technical Information

Product

Electrical

Contact resistance: < 200 mΩ
Dielectric strength: > 1.5 kVdc
Insulation resistance: > 0.5 GΩ
Rated current per contact: 1.5 A
Transmission performance: CAT6A, acc. TIA/EIA rating | Class EA, acc. IEC/ISO/EN rating
Power over Ethernet: PoE+ acc. IEEE 802.3at

Mechanical

Mechanical

Environmental

Additional information

Weight	0.5 kg
Dimensions	0.0 × 0.0 × 0.0 cm
