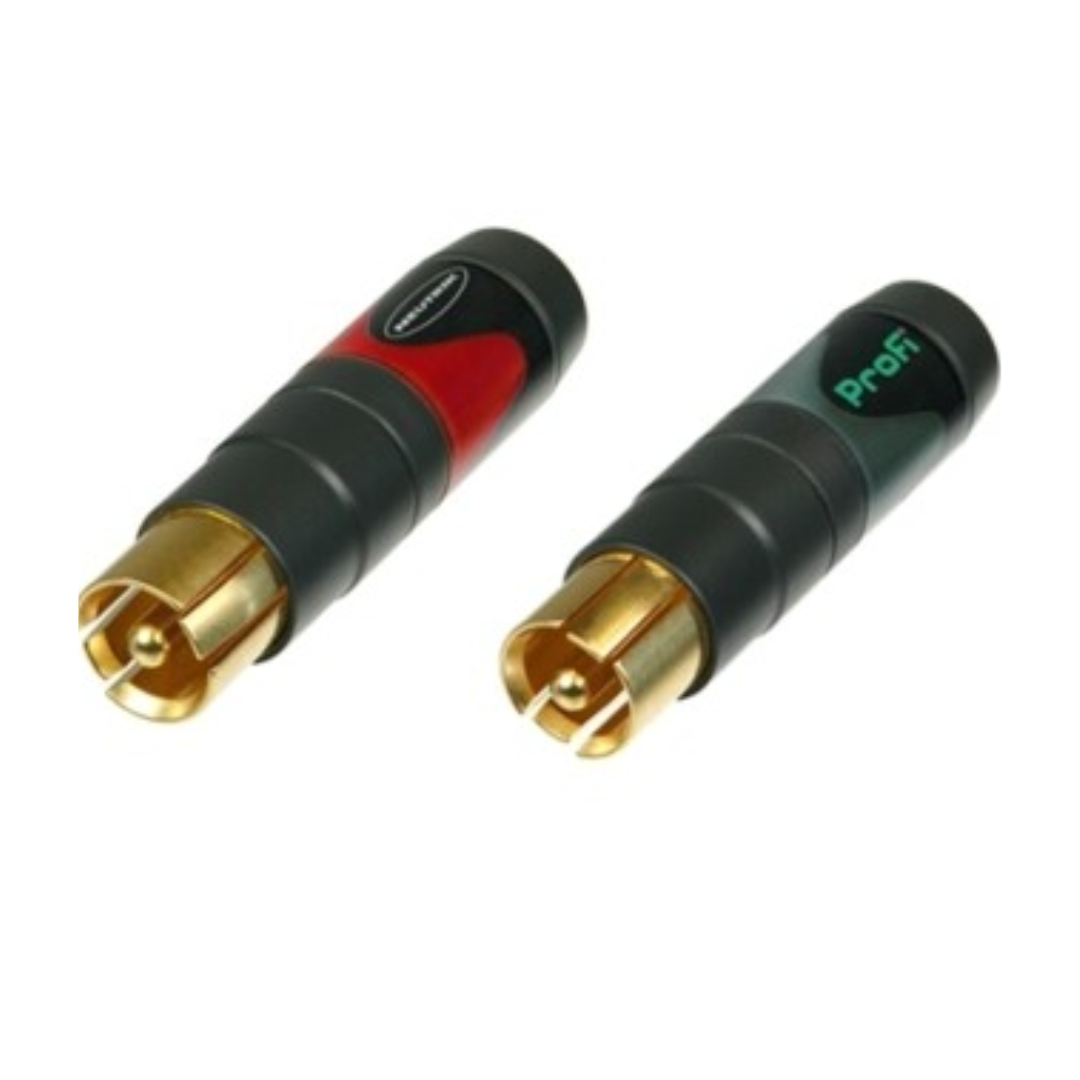

NF2C-B/2 - PHONO CABLE CONNECTOR- 2PCS

Product Description

Key Features

• Makes ground before signal contact and breaks signal before ground
• No more disturbing noise and broken speaker cones
• Precisely machined to our demanding quality standards
• Neutrik unique chuck type strain relief
• Gold plated contacts
• Sleek barrel with soft touch surface and coloured shrink sleeve
• Improved ground solder lug for ease soldering

Technical Information

Product

• Connection Type: Profi
• Gender: Male

Electrical

• Capacitance between contacts: ≤ 7 pF
• Contact resistance: >10G mΩ
• Dielectric strength: 1.5 kVdc
• Insulation resistance: > 5 GΩ
• Rated current per contact: Depends on mating connector / A
• Rated voltage: < 50 V

Mechanical

• Cable O.D.: 3.0 – 7.3 mm
• Lifetime: > 2000 mating cycles
• Wiresize: 1.5 mm²
• Wiresize: 16 AWG
• Wiring: Solder contacts

Material

• Contact plating: 5 µm Au over 5 µm Ni
• Contacts: Brass (CuZn39Pb3)
• Insert: PBTP 20 % GR
• Shell: Brass (CuZn39Pb3)
• Strain relief: Polyacetal (POM)

Environmental

• Flammability: UL 94 HB
• Standard compliance: IEC 601-14
• Protection class: IP 40
• Solderability: Complies with IEC 68-2-20
• Temperature range: -30 °C to +80 °C
