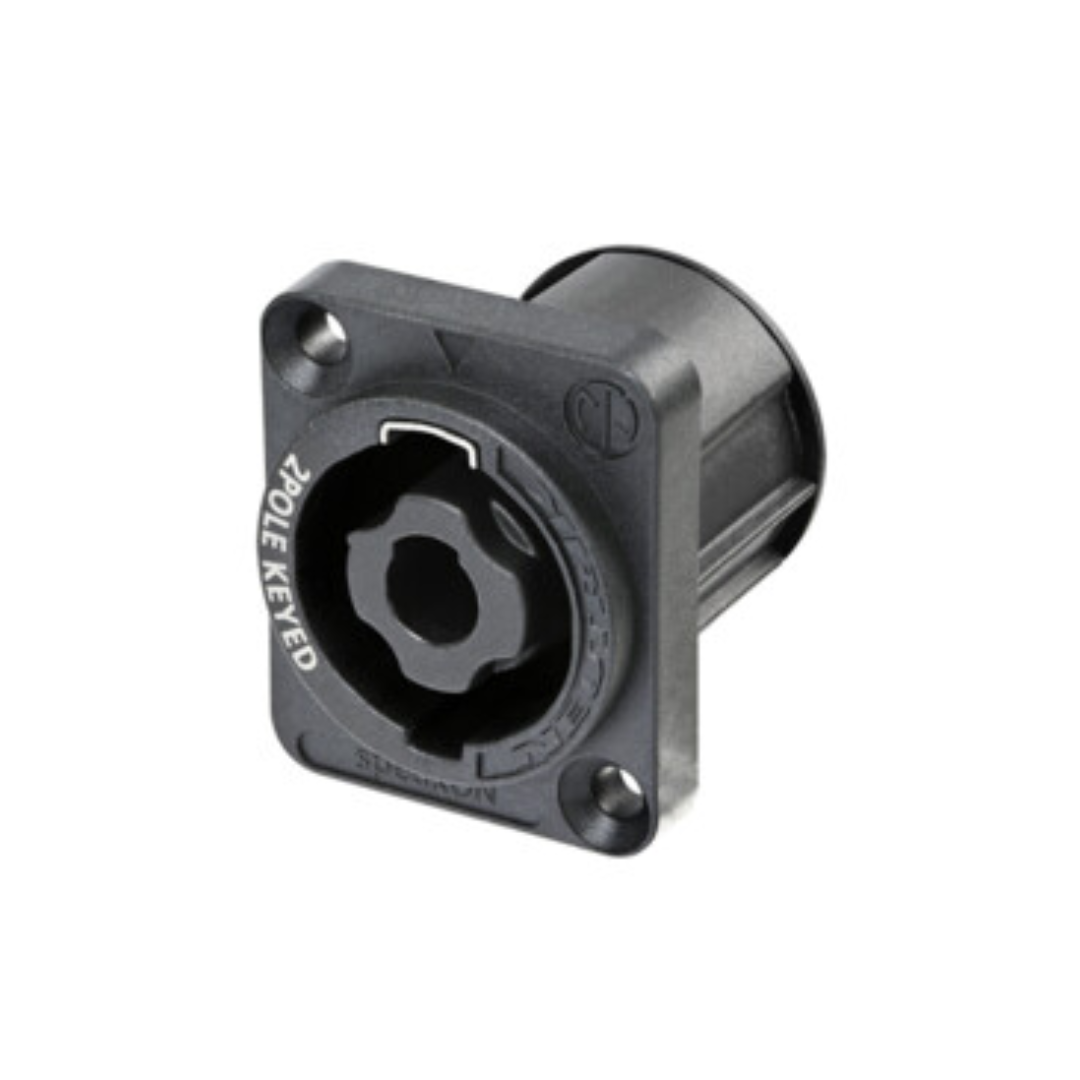

NL2MPXX - SPEAKON CHASSIS 2POLE

NL2MPXX - SPEAKON CHASSIS 2POLE

This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984. 2 pole chassis connector, black D-size flange, countersunk thru holes, 3/16″ flat tabs. Does not intermate with the 4-pole cable connector. The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.

SKU: NL2MPXX Categories: Electrical Connectors, Power Brand: Neutrik

Description
Downloads

Product Description

Key Features

IEC 61984 certified > IEC 62368-1 compliant
Glass reinforced V-0 materials make it extremely robust and dependable
Precise keyway for secure mating
Accurate twist lock latching system
Metal insert in locking area

Technical Information

Product

Gender: Male

Electrical

Contact resistance: ≤ 2 mΩ
Dielectric strength: 2.8 kVac
Insulation resistance: >0.1 GΩ (after dampheat)
Rated current per contact: 24 A rms continuous (audio rating significantly higher, depending on signal)
Rated voltage: 250 V ac
Attention: speakON is NOT to be used as an AC mains or power supply connector!

Mechanical

Lifetime: > 5000 mating cycles
Termination: 3/16″ flat tabs (e.g. NLFASTON)
Locking device: Quick Lock
Chassis shape: D
Layout: Standard hole position, thru holes

Material

Contact plating: Ag
Locking element: Stainless Steel
Shell: Polyamide (PA 6.6)
Contacts: Copper Alloy

Environmental

Flammability: UL94 V-0
Temperature range: -30 °C to +80 °C
