NL4FC

Product Description

Technical Information

Product

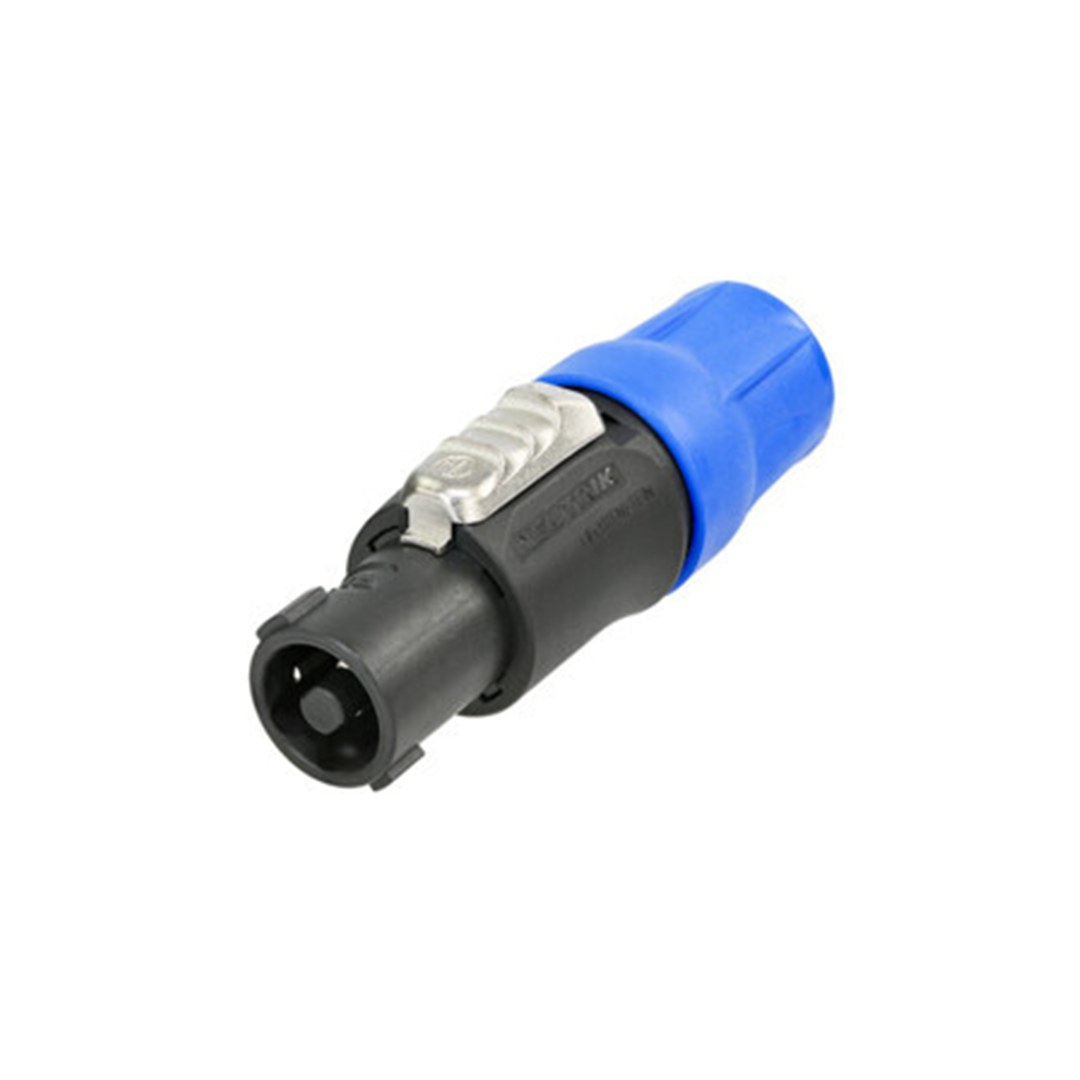

Title: NL4FC
Title: SpeakON Female
Connection Type: SpeakON
Gender: Female

Electrical

Contact resistance: ≤ 3 mΩ (after lifetime)
Dielectric strength: 4 kVdc (peak)
Insulation resistance: > 1 GΩ (after damp heat)
Rated current per contact: 30 A rms continuous
Rated current per contact: 40 A audio signal, duty cycle 50%
Rated voltage: 250 V AC
Attention: SpeakON is NOT to be used as an AC mains or power supply connector

Mechanical

Cable O.D.: 6 – 15 mm
Cable retention: ≥ 220 N (subject to cable O.D. and material)
Lifetime: > 5000 mating cycles
Wire size: 4 mm²
Wire size (AWG): 12 AWG
Wiring: Screw terminals or soldering
Locking device: Quick Lock (latch)

Material

Contact plating: 4 µm Ag
Contacts: Brass (CuZn39Pb3)
Insert: PBTP 20% GR
Locking element: Zinc diecast (ZnAl4Cu1)
Shell: Polyamide (PA 6 30% GR)
Strain relief: Polyacetal (POM)

Environmental

Flammability: UL 94 V-0
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +80 °C
