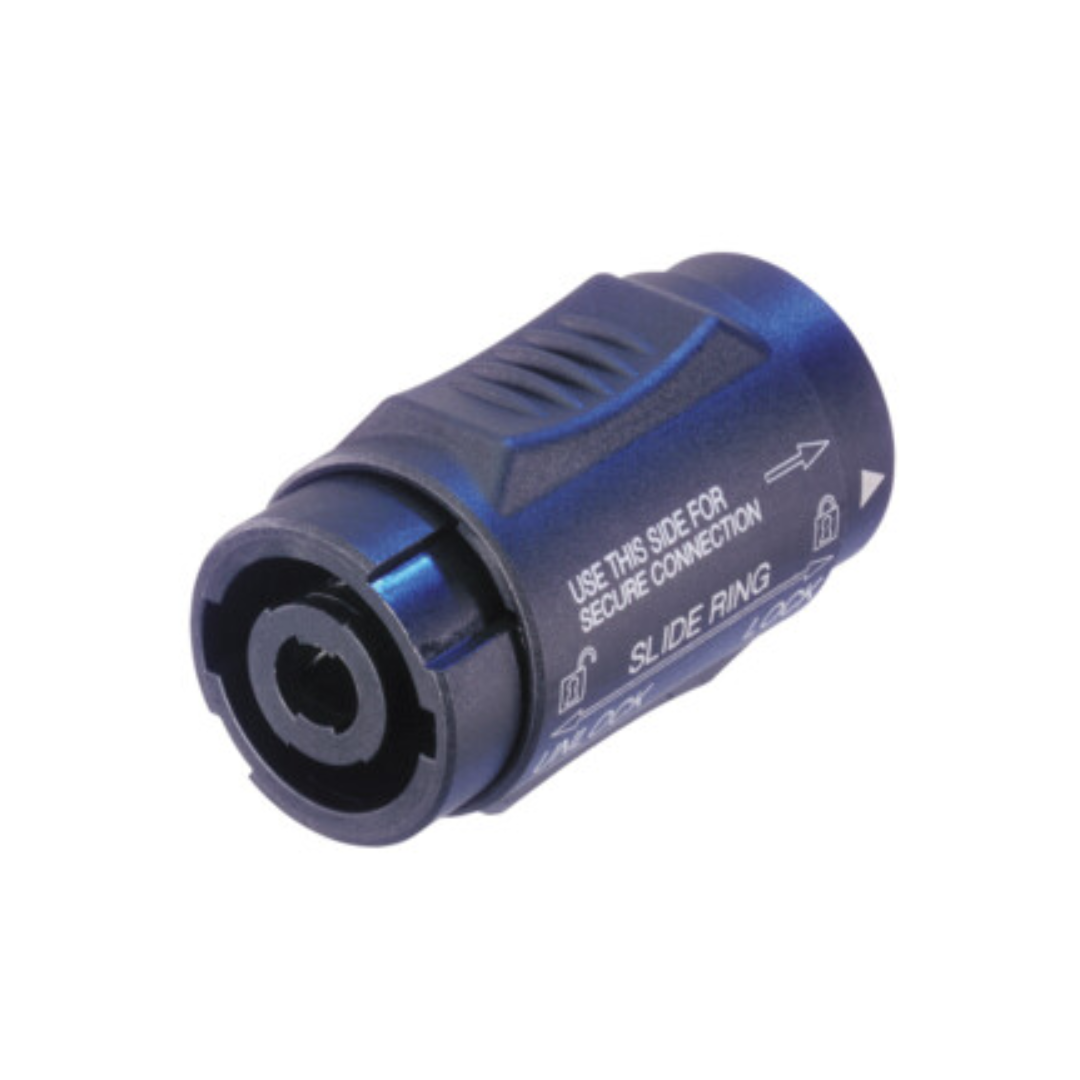

NL4MMX - SPEAKON ADAPTER 4POLE

Product Description

Technical Information

Product

• Gender: Male

Electrical

• Contact resistance: ≤ 3 mΩ (after lifetime)
• Dielectric strength: 4 kVdc (peak)
• Insulation resistance: > 1 GΩ (after dampheat)
• Rated current per contact: 15 A rms continuous
• Rated current per contact: 30 A audiosignal, duty cycle 50 %
• Rated voltage: 250 V (Insulation)

Attention: speakON is NOT to be used as an AC mains or power supply connector!

Mechanical

• Lifetime: > 5000 mating cycles
• Locking device: Quick Lock
• Material
• Contact plating: 4 µm Ag
• Contacts: Bronze (CuSn6)
• Insert: Polyamide (PA 6 30 % GR)
• Shell: Polyamide (PA 6 30 % GR)

Environmental

• Flammability: UL 94 HB
• Solderability: Complies with IEC 68-2-20
• Temperature range: -30 °C to +80 °C
