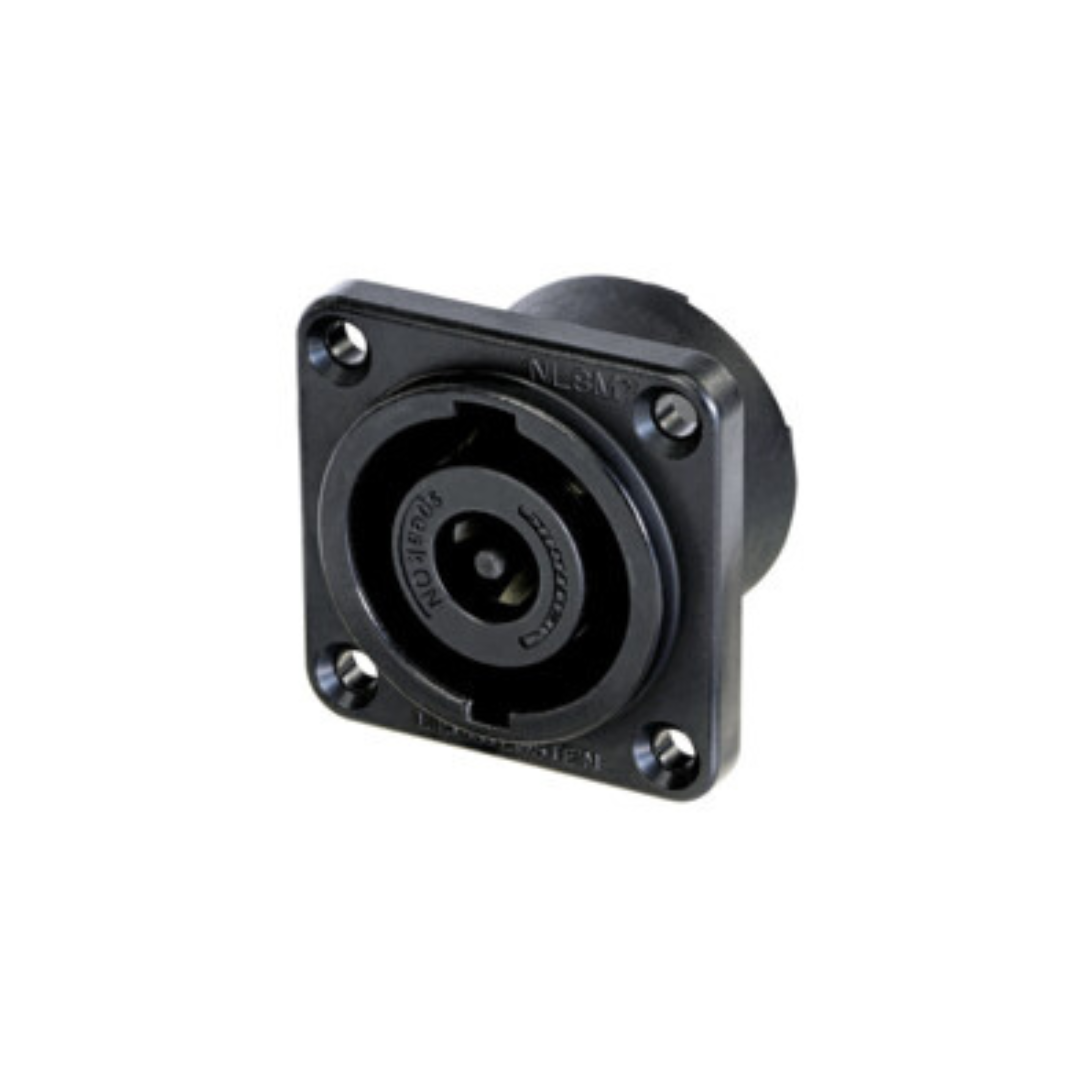

Neutrik - NL8MPRXX-BAG - SpeakOn Chassis Connector, 8 pole male, black metal square G-size housing

• IEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1
• Current rating 30 A rms
• Extremely robust metal flange and glass reinforced V-0 material for harsh and demanding environment
• Precise keyway for secure mating

Technical Information

Product

• Gender: male

Electrical

• Contact resistance: ≤ 2 mΩ
• Dielectric strength: 1.5 kVac
• Insulation resistance: > 0.1 GΩ (after dampheat)
• Rated current per contact: 30 A rms continuous (acc. to IEC 61984)
• Rated voltage: 250 V ac
• Attention: speakON is NOT to be used as an mains or power supply connector (AC / DC)!

Mechanical

• Lifetime: > 5000 mating cycles
• Termination: 3/16″ flat tabs
• Locking device: Quick Lock
• Mounting direction: Rear / front mounting
• Chassis shape: square G-size flange
• Layout: four thru holes

Material

• Contact plating: Ag
• Contacts: Copper Alloy
• Shell: Zinc diecast, black chrome plated
• Insert: Polyamide (PA 6.6)

Environmental

• Temperature range: -30 °C to +80 °C
• Flammability: UL 94 V-0
