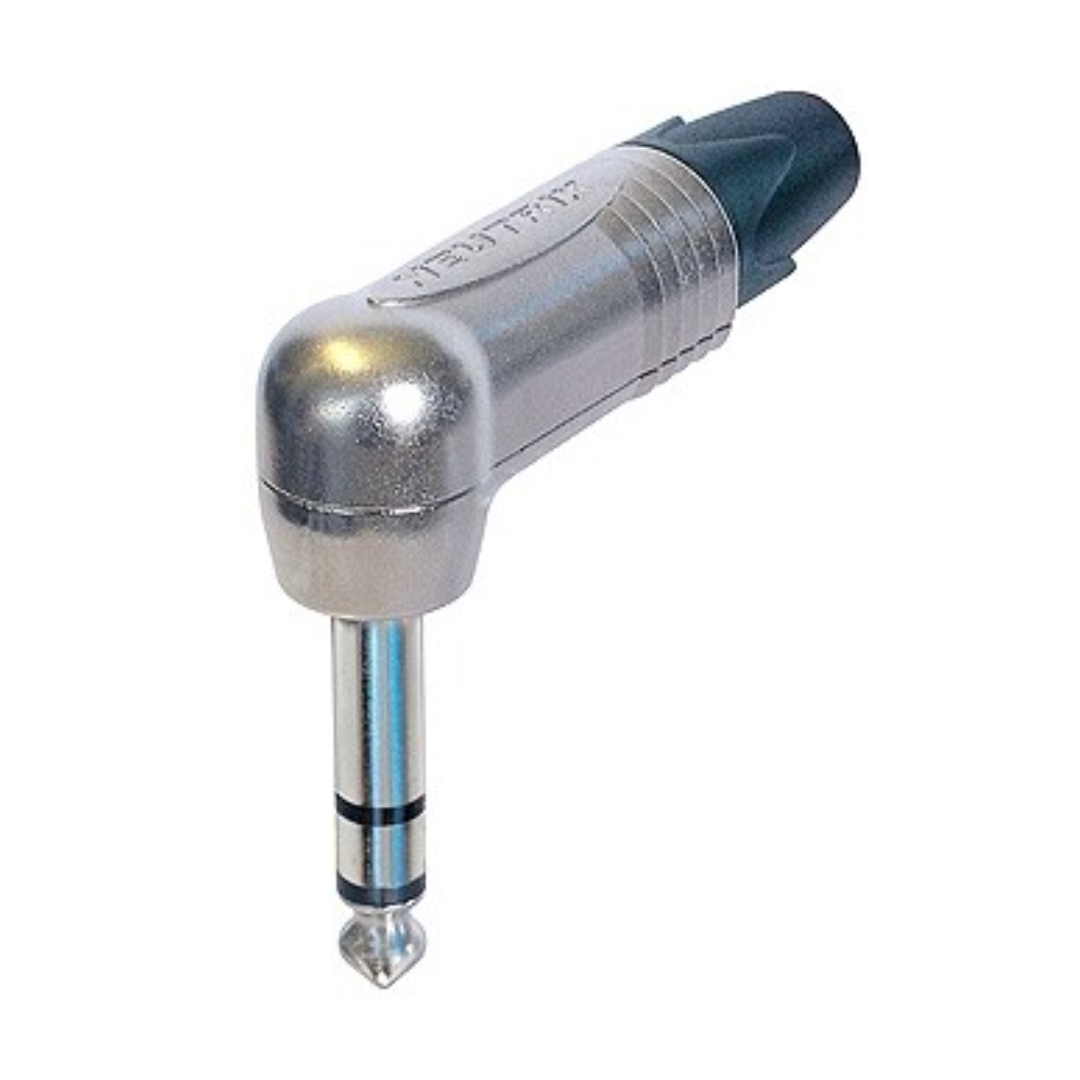

NP3RX - R/A 1/4'' 3POLE PLUG

Product Description

Key Features

• All metal housing eliminates the plastic cover of the predecessor NP*RCS and improves further durability and EMI protection
• Extra slim 1/4″ plug for highest packing density
• Robust diecast shell in stylish design
• Proven chuck type strain relief for reliable cable retention
• Sleek design for best handling convenience
• Precision machined one-piece contacts – avoid hook up of tip contact

Technical Information

Product

• Connection Type: Plug
• Gender: Male

Electrical

• Contact resistance: Depends on mating connector mΩ
• Dielectric strength: 1 kVdc
• Insulation resistance: > 2 GΩ (initial)
• Rated current per contact: Depends on mating connector A
• Rated voltage: < 50 V

Mechanical

• Cable O.D.: 4 – 7 mm
• Lifetime: > 1000 mating cycles
• Wiresize: 1 mm²
• Wiresize: 18 AWG
• Wiring: Solder contacts

Material

• Bushing: Polyacetal (POM) + PU
• Contact plating: 2 µm Ni (Su)
• Contacts: Brass (CuZn39Pb3)
• Insert: Polyamide (PA 6.6 30 % GR)
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Nickel
• Strain relief: Polyacetal (POM)

Environmental

• Standard compliance: IEC 60603-11 / EIA RS-453
• Solderability: Complies with IEC 68-2-20
• Temperature range: -20 °C to +65 °C
