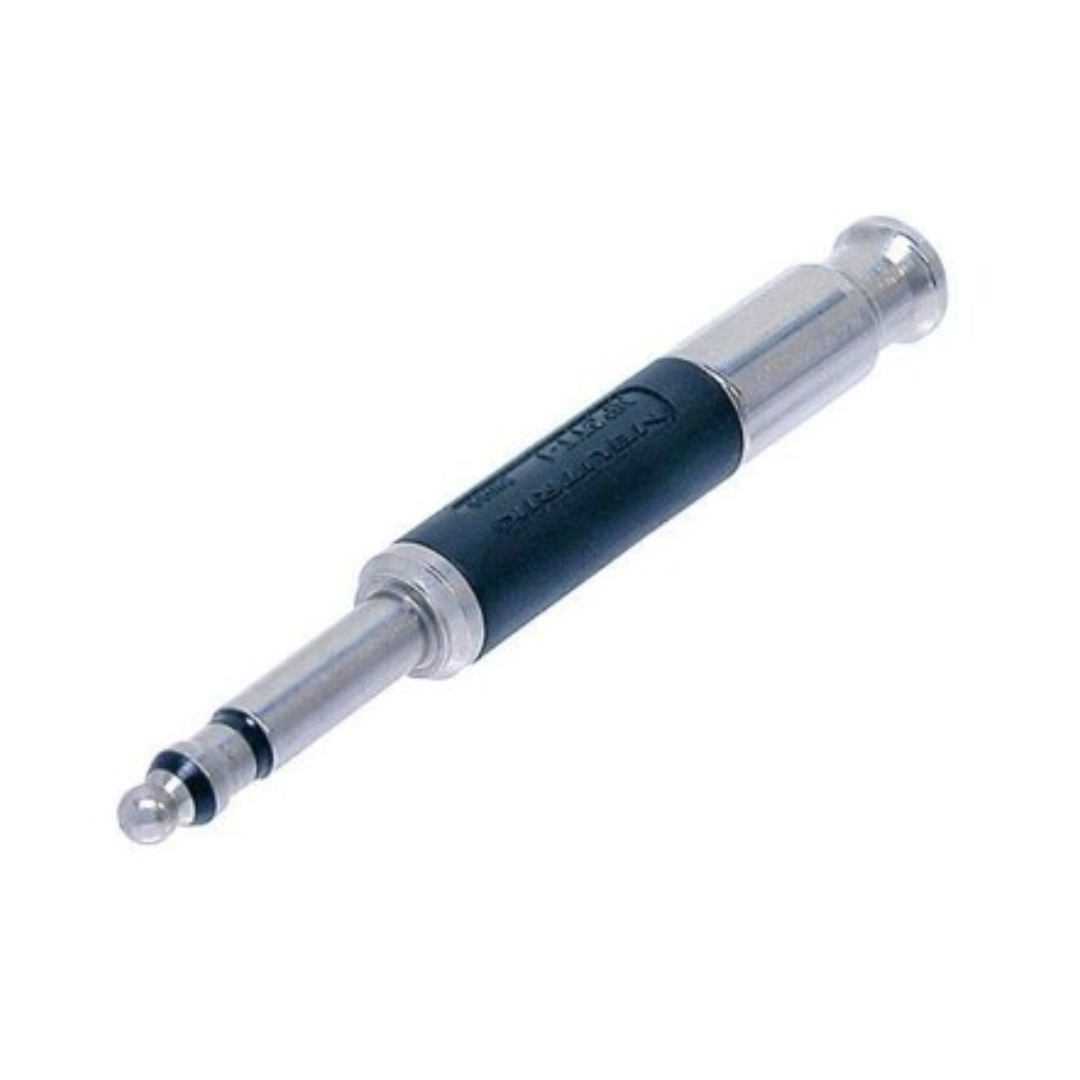

NP3TT-1-B - BANTAM PLUG W/SOLDER CONT. BLACK

Product Description

Key Features

• Designed for pro audio applications
• Robust egonomic design – long-lasting and depenable
• Standard HEX crimp cable clamp for shield termination and cable retention
• Colored sleeves available for coding and marking

Technical Information

Product

• Connection Type: Plug
• Gender  male

Electrical

• Contact resistance: Depends on mating connector mΩ
• Dielectric strength: 1 kVdc
• Insulation resistance: > 2 GΩ (initial)
• Rated current per contact: Depends on mating connector A
• Rated voltage: < 50 V

Mechanical

• Cable O.D.: 4 – 4.8 mm
• Crimp size: 5 Hex crimp (shield)
• Lifetime: > 1000 mating cycles
• Wiresize: 0,25 mm²
• Wiresize: 24 AWG
• Wiring:  Solder contacts

Material

• Bushing: Polyacetal (POM) + PU
• Contact plating: 2 µm Ni (Su)
• Contacts: Bronze (CuSn6) (Tip)
• Insert: Polyamide (PA 6.6 30 % GR)
• Shell: Brass (CuZn39Pb3)
• Shell plating: 2 µm Ni (Su) + PA 6 30% GR (black)

Environmental

• Standard compliance: MIL-P-642/13
• Solderability: Complies with IEC 68-2-20
• Temperature range: -20 °C to +65 °C
