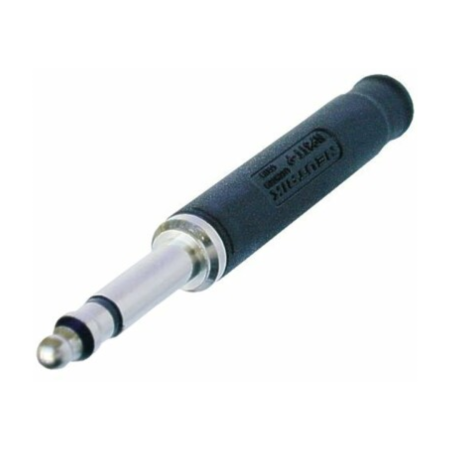

NP3TT-P-B - BANTAM PLUG W/SOLDER CONT. BLACK

Product Description

Key Features

• Designed for pro audio applications
• Robust egonomic design – long-lasting and reliable
• Standard HEX crimp cable clamp for shield termination and cable retention
• Colored sleeves available for coding and marking

Technical Information

Product

• Connection Type: Plug
• Gender: Male

Electrical

• Contact resistance: Depends on mating connector mΩ
• Dielectric strength: 1 kVdc
• Insulation resistance: > 2 GΩ (initial)
• Rated current per contact: Depends on mating connector A
• Rated voltage: < 50 V

Mechanical

• Cable O.D.: 4 – 4.8 mm
• Crimp size: 5,41 Hex crimp (shield) acc. IEC 60803 (die designation D)
• Lifetime: > 1000 mating cycles
• Wiresize: 0,25 mm²
• Wiresize: 24 AWG
• Wiring: Solder contacts

Material

• Contact plating: 2 µm Ni (Su)
• Contacts: Messing CuZn35Pb2
• Shell: Polyamide (6 30% GR) (black)
• Insulation: Polyamide (PA 6.6 30 % GR)

Environmental

• Standard compliance: MIL-P-642/13
• Solderability: Complies with IEC 68-2-20
• Temperature range: -20 °C to +65 °C
